User manual for the Cisco IP Phone 8811 CP-8811-K9
The user manual for the Cisco IP Phone 8811 CP-8811-K9 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Telephones.

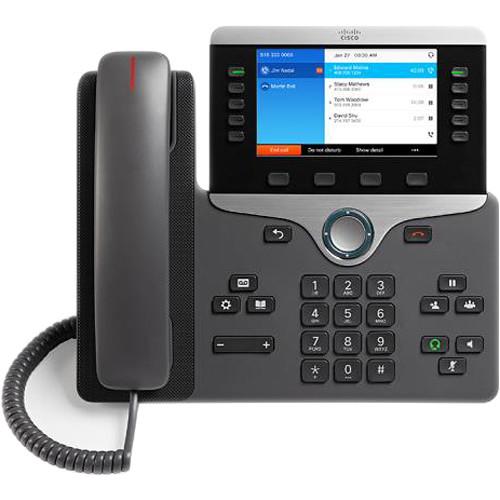

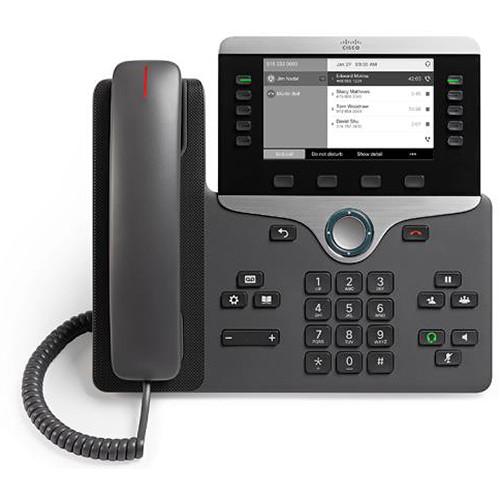

Work remotely and stay in touch with co-workers and clients with the IP Phone 8811 from Cisco. This IP phone features Cisco Expressway to give users outside of your firewall or VPN secure access to collaboration workloads, including video, voice, content, and IM. Manage multiple calls with support for up to 5 lines along with both single- and multiple-call-per-line appearance. The 8811 also features a 5" grayscale display with an 800 x 480 resolution that provides scrollable access to calling features as well as support for text-based XML applications.
The IP Phone 8811 comes equipped with a 2-port Cisco Ethernet switch allowing for a direct connection to a Gigabit Ethernet network. This connection is established through an RJ-45 interface with a single LAN connectivity for both the phone and the co-located PC. The phone and PC can be assigned to separate VLANs for improved security and reliability for voice and data traffic. With a dual-position foot stand and the ability to mount this phone to the wall you can position the phone the way you want. Additionally, the Kensington lock slot compatibility makes it easy to secure the phone against theft.
If you own a Cisco telephones and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco IP Phone 8811 CP-8811-K9 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco IP Phone 8811 CP-8811-K9:
Specifications
Display
5" / 12.7 cm
Display Type
Grayscale
Resolution
800 x 480
Auxilliary I/O Connector
Yes
Ethernet Protocol
An internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network (IEEE 802.3i/802.3u/802.3ab) through an RJ-45 interface with single LAN connectivity for both the phone and a co-located PC.
The system administrator can designate separate VLANs (IEEE 802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic.
Keys
Line keys Soft keys Back and release keys Four-way navigation and select keys Hold/Resume, Transfer, and Conference keys Messaging, Application, and Directory keys Standard keypad Volume-control toggle key Speakerphone, headset, and mute keys
Stand
The display is easy-to-view and the buttons and keys are easy-to-use. The two-position foot stand supports viewing angles of 35 and 50 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone.
Wall Mountable
You can install the phone on a wall using an optional wall-mount kit (available separately)
Kensington Lock Support
Yes
PoE
IEEE Power over Ethernet class 2. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE)
Cisco IP Phone Power Cube 4
This optional power cube is used as an AC-to-DC (48V) power supply for non-PoE deployments. Use of the power cube 4 also requires the use of one of the corresponding AC country cords
Call-Control Support
Cisco Unified Communications Manager - 8.5.1 (Non-secured mode Only) - 8.6.2 - 9.1.2 - 10.0 and later
Cisco Unified Communications Manager Express (Unified CME) - 8.6.2 - 9.1.2 - 10.0 and later
Cisco Hosted Collaboration Solution (HCS) - 8.6.2 and later (using supported UCM versions above)
Audio Codec
G.711a-law and mu-law, G.722, G.729a, Internet Low Bitrate Codec (iLBC), and Internet Speech Audio Codec (iSAC)
EHS Features
You can control the hookswitch electronically with a third-party headset connected to an auxiliary port
QoS
The phone supports Cisco Discovery Protocol and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID
Operating Temperature
32 to 104°F / 0 to 40°C
Non-Operating Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
10 to 90% non-condensing
Non-Operating Humidity
10 to 95% non-condensing
Language Support
Arabic (Arabic Area) Bulgarian (Bulgaria) Catalan (Spain) Chinese (China) Chinese (Hong Kong) Chinese (Taiwan) Croatian (Croatia) Czech (Czech Republic) Danish (Denmark) Dutch (Netherlands) English (United Kingdom) Estonian (Estonia) French (France) Finnish (Finland) German (Germany) Greek (Greece) Hebrew (Israel) Hungarian (Hungary) Italian (Italy) Japanese (Japan) Latvian (Latvia) Lithuanian (Lithuania) Korean (Korea Republic) Norwegian (Norway) Polish (Poland) Portuguese (Portugal) Portuguese (Brazil) Romanian (Romania) Russian (Russian Federation) Spanish (Columbia) Spanish (Spain) Slovak (Slovakia) Swedish (Sweden) Serbian (Republic of Serbia) Serbian (Republic of Montenegro) Slovenian (Slovenia) Thai (Thailand) Turkish (Turkey)
Dimensions
9.02 x 10.13 x 1.57" / 229.10 x 257.34 x 40.00 mm
Weight
2.58 lb / 1.17 kg
The user manual for the Cisco IP Phone 8811 CP-8811-K9 can be downloaded in .pdf
format if it did not come with your new telephones, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Cisco users keep a unique electronic library
for Cisco telephoness,
where you can use our link to download the user manual for the Cisco IP Phone 8811 CP-8811-K9.
The user manual lists all of the functions of the Cisco IP Phone 8811 CP-8811-K9,
all the basic and advanced features and tells you how to use the telephones.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Cisco service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Cisco IP Phone 8811 CP-8811-K9. User manuals are also
available on the Cisco website under Computers & Solutions - Networking - Telephones.
