User manual for the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32
The user manual for the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

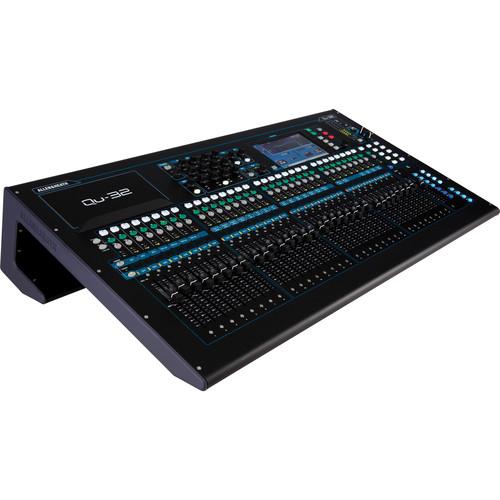

Designed to accommodate a wide variety of live sound reinforcement and recording scenarios, the Allen & Heath Qu-32 is a 38-in/28-out digital mixing console that doubles as a 32×32 USB recording interface. Featuring 32 of the company's recallable AnalogiQ microphone preamps, and powered by a 5 core ARM processor, the Qu-32 provides a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay and reverb.
The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath. The Qu-32 can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.
Engineered for intuitive navigation, the mixer also features a 7" touchscreen display, providing access to all settings. Furthermore, the mixer has 33 automatable, motorized faders for fast recall of levels when mixing FOH for multiple acts on the same stage, dealing with multiple monitor mixes, and similar scenarios.
If you own a Allen & Heath digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32:
Self-key sidechain Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 s Release: 10 ms to 1 s
Equalizer
4-band fully parametric, 20 Hz to 20 kHz, +/-15 dB Band 1: Selectable LF shelving (Baxandall), bell Band 2 & 3: Bell Band 4: Selectable HF shelving (Baxandall), bell Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave
Compressor
Self-key sidechain Threshold: -46 to 18 dBu Ratio: 1:1 to infinity Attack: 300 μs to 300 ms Release: 100 ms to 2 s Knee: Soft or Hard Types: Peak manual, RMS manual, SlowOpto, PunchBag
Output
Channel Direct Out to USB: Follow fader, follow mute (global options) Source Select (Global): Post-preamp, pre-EQ, post-EQ, post-delay
Graphic EQ: Constant 1/3 octave, 28 bands from 31 Hz to 16 kHz, +/-12 dB Parametric EQ: 4-band fully parametric, 20 Hz to 20 kHz, +/- 15 dB Band 1: Selectable LF shelving (Baxandall), bell Band 2 & 3: Bell Band 4: Selectable HF shelving (Baxandall), bell Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave
Compressor
Self-key sidechain Threshold: -46 to 18 dBu Ratio: 1:1 to infinity Attack: 300 μs to 300 ms Release: 100 ms to 2 s Knee: Soft or Hard Types: Peak manual, RMS manual, SlowOpto, PunchBag
The user manual for the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32 can be downloaded in .pdf
format if it did not come with your new digital mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Allen & Heath users keep a unique electronic library
for Allen & Heath digital mixerss,
where you can use our link to download the user manual for the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32.
The user manual lists all of the functions of the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32,
all the basic and advanced features and tells you how to use the digital mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Allen & Heath service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Allen & Heath Qu-32 - 38-In/28-Out Digital Mixing AH-QU-32. User manuals are also
available on the Allen & Heath website under Pro Audio - Recording - Digital Mixers.
