User manual American Dynamics RS-422/485 Distribution Panel ADAC422DP

Operating instructions and pdf manual for use - American Dynamics RS-422/485 Distribution Panel ADAC422DP User manual, User manual American Dynamics RS-422/485 Distribution Panel ADAC422DP, American, Dynamics, RS-422/485, Distribution, Panel, ADAC4


User manual for American Dynamics RS-422/485 Distribution Panel ADAC422DP

American Dynamics RS-422/485 Distribution Panel ADAC422DP
  • Manufacturer: American Dynamics
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Matrix Solutions - Matrix Components
  • Safety instructions
  • Startup and operation of the matrix components
  • Tips for setting up your American Dynamics
  • Settings and expert assistance
  • Contact American Dynamics service
  • Troubleshooting
  • Warranty information
  • Price: 670 USD
We recommend checking out our discussion threads on the American Dynamics RS-422/485 Distribution Panel ADAC422DP, which address similar problems with connecting and setting up Matrix Components American Dynamics.



User manual for the American Dynamics RS-422/485 Distribution Panel ADAC422DP

The user manual for the American Dynamics RS-422/485 Distribution Panel ADAC422DP provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Matrix Solutions - Matrix Components.

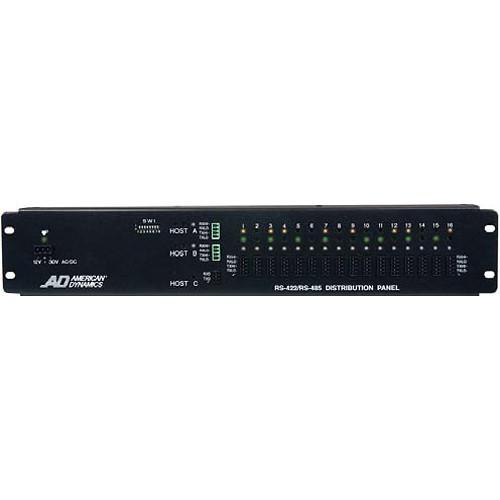

The American Dynamics ADAC422DP RS-422 Distribution Panel amplifies an RS-422 communications signal to provide multi-point dome control. This allows the flexibility to operate efficiently in protocol-setting. Home-run wiring and multiple daisy-chained links can be fitted to SpeedDome programmable dome cameras or J-Boxes, using the 16 panel outputs of this panel.
If you own a American Dynamics matrix components and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics RS-422/485 Distribution Panel ADAC422DP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics RS-422/485 Distribution Panel ADAC422DP:
Specifications
    Communication Maximum Cable Segment 3,300' (1 km)

    Maximum Loads: 10 per cable segment

    Topologies: Daisy-chain, star, home-run

    Transmission Medium: Two twisted pairs 22 AWG (0.326 mm), polarized, shielded

    Connector: Euro-style 3.5 mm terminal block

    Controller Devices: MegaPower 3200, MegaPower 48 Plus, Intellex digital video management system, and RCSN422

    Secondary Devices: SpeedDome programmable dome cameras, J-Boxes, anddistribution panels

    Repeaters: J-Boxes and distribution panels
    Power Source External power module

    Certified limited power source required
    Multiple panels may be connected to the maximum VA rating of the transformer
    Power Frequency 50-60 Hz
    Power Requirements 12-30VAC or 12-30VDC
    Power Consumption 8VA
    Operating Temperature 14 - 122°F (-10 ~ +50°C)
    Dimensions (WxHxD) 18.9 x 1.3 x 3.4" (481 x 34 x 87mm)
    Weight 1.7 lbs (0.8kg)
    Packaging Info
    Package Weight 9.55 lb
    Box Dimensions (LxWxH) 19.1 x 16.9 x 8.6"
    The user manual for the American Dynamics RS-422/485 Distribution Panel ADAC422DP can be downloaded in .pdf format if it did not come with your new matrix components, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics matrix componentss, where you can use our link to download the user manual for the American Dynamics RS-422/485 Distribution Panel ADAC422DP.

    The user manual lists all of the functions of the American Dynamics RS-422/485 Distribution Panel ADAC422DP, all the basic and advanced features and tells you how to use the matrix components. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Dynamics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Dynamics RS-422/485 Distribution Panel ADAC422DP. User manuals are also available on the American Dynamics website under Surveillance - Surveillance Video - Matrix Solutions - Matrix Components.
