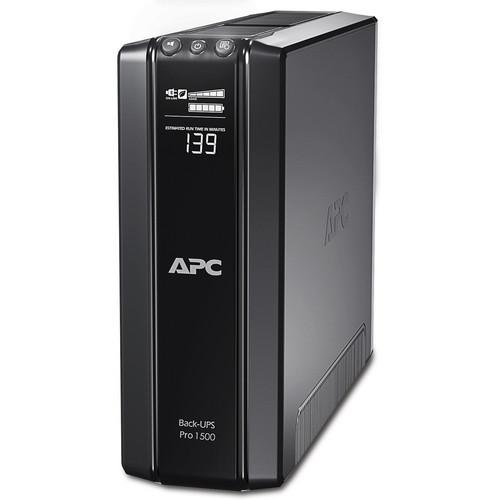

Click to enlarge image
|
We recommend checking out our discussion threads on the APC Power-Saving Back-UPS Pro 1500 International BR1500GI,
which address similar problems with connecting and setting up UPS Backup APC.
|
User manual for the APC Power-Saving Back-UPS Pro 1500 International BR1500GI
The user manual for the APC Power-Saving Back-UPS Pro 1500 International BR1500GI provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.
The Power-Saving Back-UPS Pro 1500 International Version (230V) from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery.
|
If you own a APC ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the APC Power-Saving Back-UPS Pro 1500 International BR1500GI in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the APC Power-Saving Back-UPS Pro 1500 International BR1500GI:
| Output | Output Power Capacity: 865 W/1500 VA
Nominal Output Voltage: 230V
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz
Crest Factor: 3 : 1
Topology: Line Interactive
Waveform Type: Stepped approximation to a sinewave
Output Connections:
• 5x IEC 320 C13 / Battery Backup
• 5x IEC 320 C13 / Surge Protection
• 2x IEC Jumpers / Battery Backup | | Input | Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input voltage range for main operations: 176 - 294V
Input voltage adjustable range for mains operation: 156 - 300V
Input Breaker Capacity: 10.0 A | | Batteries & Runtime | Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Typical recharge time: 8 hours
Replacement Battery: APCRBC124
RBC Quantity: 1
Full load: 8 min / 720W
Half Load: 20 min / 360W
Extended Run Options: APC Power-Saving Back-UPS Pro 1500, 230 V | | Communications & Management | Interface Port: USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm | | Surge Protection and Filtering | Surge energy rating: 441 Joules
Filtering: Full time multi-pole noise filtering, 10% of IEEE surge let-through, zero clamping response time instantaneous
Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-11 connector),Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector) | | Conformance | Regulatory Approvals A-tick,C-tick,CE,GOST,GS Mark,Telepermit,TUV
Environmental Compliance: RoHS,REACH. Contains No SVHCs | | Environmental Requirements | Operating Temperature: 32 - 104°F / 0 to 40°C
Storage Temperature: 23 - 113°F / -15 to 45°C
Humidity: 0-95%
Operating Elevation: 10,000' / 3000 m
Storage Elevation: 50,000' / 15,000 m | | Equipment Protection | Lifetime: 200,000 AUD - 150,000 Euros - 75,000 GBP | | Dimensions (HxWxD) | 11.89 x 4.41 x 15" / 302 x 112 x 382 mm | | Weight | 25.52 lbs / 11.6kg | | Package Weight | 30.8 lb | | Box Dimensions (LxWxH) | 19.2 x 15.6 x 9.6" | |
