User manual for the APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) SMT1500RMI2U
The user manual for the APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) SMT1500RMI2U provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

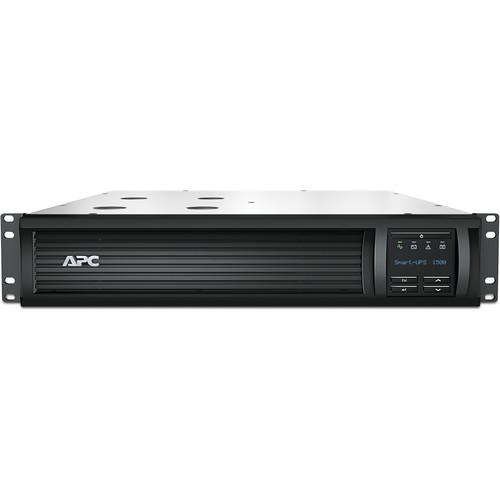

The APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices. With Automatic Voltage Regulation, the unit offers higher application availability by correcting low and high voltage conditions without utilizing the battery. Its intuitive LCD interface offers precise data in multiple languages along with the ability to configure the equipment locally with easy to use navigation keys. Additionally, the unit features a Green operating mode that bypasses unused electrical components in good power conditions to attain high operating efficiency without compromising with any protection.
With an intelligent battery management, the APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) maximizes battery performance, life, and reliability via precision charging. The unit houses a power condition that offers protection for connected loads from surges, spikes, lightning, and other power disturbances. It boasts temperature-compensated battery charging capability to enhance battery life by controlling the charge voltage as per battery temperature. Apart from battery failure notification, the Smart-UPS also conducts a periodic battery self-test to ensure early detection of a battery that needs to be replaced. It comes with pure sine wave output on battery that simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Featuring an automatic self-test, the Smart-UPS automatically starts up the connected equipment upon the return of utility power and restarts loads after it is shutdown. With network manageability, the unit provides remote management over the network. It features audible alarms that actively inform you whether the unit is on battery, the battery is low, or if there is an overload condition. The equipment has an energy meter that displays actual kilowatt hours of usage.
Through LED status indicators, the Smart-UPS updates you on the unit and power status. In addition to serial connectivity for managing the UPS via a serial port, the unit has USB connectivity that enables you to manage the UPS via a USB port. Hot-swappable batteries ensure clean, uninterrupted power to protect equipment while batteries are being replaced. The UPS comes with resettable circuit breakers for a quick recovery from overloaded events.
The Smart-UPS X 1500 VA Rack/Tower LCD 230 V has a single switched outlet group that can be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. High on online efficiency, the UPS reduces utility costs and generates less heat. The SmartSlot customizes UPS capabilities with management cards. As the unit is cold-start capable, it offers temporary battery power when the utility power is out.
With adjustable voltage-transfer points, Smart-UPS widens the input voltage window or tightens the output voltage regulation for maximizing useful battery life. You can also use this equipment for optimal performance with adjustable voltage sensitivity in some specific power environments or generator applications. The unit has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
|
If you own a APC ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) SMT1500RMI2U in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) SMT1500RMI2U:
| Output | Output Power Capacity: 1000 W / 1500 VA
Max Configurable Power: 1000 W / 1500 VA
Nominal Output Voltage: 230 V
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 57 - 63 Hz for 60 Hz nominal
Waveform Type: Sine wave
Output Connections: (4) IEC 320 C13
(2) IEC Jumpers | | Input | Nominal Input Voltage: 230 V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input voltage range for main operations: 160 – 286 V
Input voltage adjustable range for main operations: 151 – 302 V | | Batteries & Runtime | Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3 hour(s)
RBC Quantity: 1 | | Communications & Management | Interface Port(s): RJ-45 Serial, SmartSlot, USB
Available SmartSlot Interface Quantity: 1
Control Panel: Multi-function LCD status and control console
Audible Alarm
Alarm when battery: distinctive low
Battery alarm: configurable delays
Emergency Power Off (EPO): Optional | | Surge Protection and Filtering | Surge Energy Rating: 459 Joules
Filtering: Full time
Multi-pole noise filtering: 0.3% IEEE
Surge let-through: zero clamping response time
Meets UL 1449 | | Physical | Rack Height: 2U
Color: Black
Dimension (W×H×D): 17 × 3.50 × 18” (432 × 89 × 457 mm)
Net Weight: 63 lb (28.64 kg) | | Environmental | Operating Environment: 32 to 104° F (0 to 40° C)
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-10000’ (0-3000 m)
Storage Temperature: 5 to 113° F (-15 to 45° C)
Storage Relative Humidity: 0- 95%
Storage Elevation: 0-50000’ (0-15000 m)
Audible noise at 1 m from surface of unit: 46 BA
Online Thermal Dissipation: 90 BTU/hr | | Conformance | Regulatory Approvals C-tick,CE,EN 50091-1,EN 50091-2,TUV,VDE
Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCs | | Package Weight | 71.2 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 10.0" | |
