User manual for the APC Smart-UPS 2200VA with LCD (120V) SMT2200
The user manual for the APC Smart-UPS 2200VA with LCD (120V) SMT2200 provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

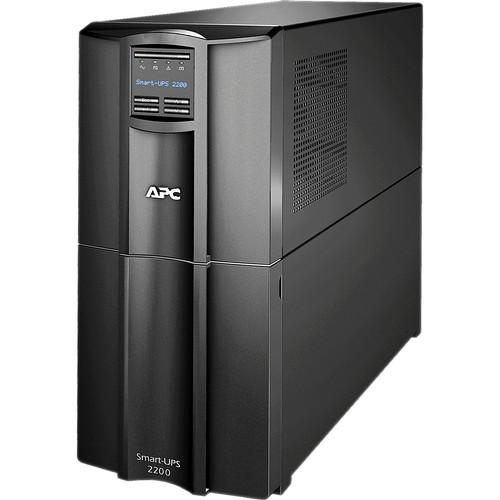

The 120 V Smart-UPS 2200VA with LCD from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery.
If you own a APC ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the APC Smart-UPS 2200VA with LCD (120V) SMT2200 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the APC Smart-UPS 2200VA with LCD (120V) SMT2200:
Specifications
Output
Output Power Capacity: 1920 Watts / 1920 VA Max Configurable Power: 1980 Watts / 2200 VA Nominal Output Voltage: 120 V Output Voltage Distortion: Less than 5% Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Topology: Line Interactive Waveform Type: Sine wave Output Connections: 8 x NEMA 5-15RNEMA 5-15R, 2 x NEMA 5-20R
Input
Nominal Input Voltage: 120 V Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing) Input Connections: NEMA 5-20P Cord Length: 6 feet (1.83 meters) Input Voltage Range for Main Operations: 82 - 144 V Input Voltage Adjustable Range for Mains Operation: 75 - 154 V
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time
3 hours
Replacement Battery
RBC55
Communications & Management
Interface Ports: Smart-Slot Available SmartSlot Interface Quantity: 1 Control Panel: Multi-function LCD status and control console Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO): Yes
Surge Protection
530 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
5 to 113°F / -15 to 45°C
Operating Humidity
0 to 95% (RH)
Storage Humidity
0 to 95%
Operating Elevation
0 to 10,000' / 0 to 3,000 m
Storage Elevation
0 to 50,000' / 0 to 15,000 m
Audible Noise
45.00 dBA at 3.2' / 1 m from surface of unit
Online Thermal Dissipation
275.00 BTU/hr
Regulatory Approvals
CSA, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
The user manual for the APC Smart-UPS 2200VA with LCD (120V) SMT2200 can be downloaded in .pdf
format if it did not come with your new ups backup, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other APC users keep a unique electronic library
for APC ups backups,
where you can use our link to download the user manual for the APC Smart-UPS 2200VA with LCD (120V) SMT2200.
The user manual lists all of the functions of the APC Smart-UPS 2200VA with LCD (120V) SMT2200,
all the basic and advanced features and tells you how to use the ups backup.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from APC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the APC Smart-UPS 2200VA with LCD (120V) SMT2200. User manuals are also
available on the APC website under Computers & Solutions - Power - UPS Backup.
Question and answer discussion forum concerning user instructions and resolving problems with the APC Smart-UPS 2200VA with LCD (120V) SMT2200
Batteries are brand new as of a couple months ago, and the UPS recently has been displaying a red battery indicator light, and a message that says replace battery. Then it will show "new battery?" like it thinks I just connected the battery even though it's always been connected. I have the option to select yes or no. Regardless of my choice, it'll do all of this behavior all over again.
