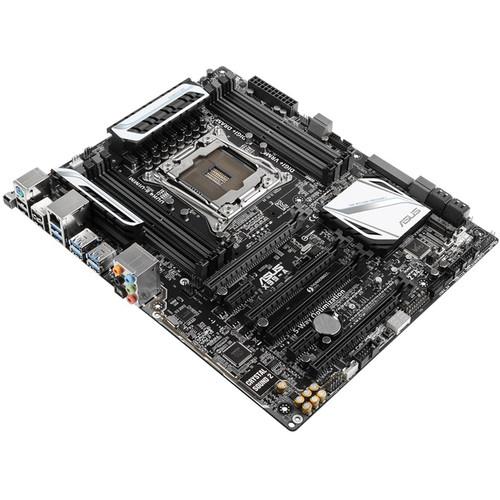

The X99-A Motherboard from Asus is designed to fit into standard size ATX cases. Compatible with 64-bit versions of Windows 8.1, 8, and 7, the 12 x 9.6" X99-A supports Intel Core i7 processors and delivers power and speed to Internet browsing, extreme gaming, CAD software, and home servers. Power is critical for performance so the X99-A employs a Digital 8 Phase Power Design as well as OC Socket that uses extra pins to connect a proprietary circuit to contacts found on Haswell-E's land grid array (LGA). Combined with Asus UEFI (Unified Extensible Firmware Interface), this feature enables DDR4 memory frequencies and helps lower latencies and enhance stability while overclocking. The motherboard also features 5-Way Optimization, which includes better CPU performance, power saving and digital power control, fan control, and system cooling.
The ATX form factor of the X99-A comes with eight DIMM slots that can each hold 8GB DDR4 RAM modules for quad channel memory architecture. The X99-A also has eight SATA III 6 Gb/s connectors, one SATA Express connector, and one M.2 Socket for internal hard drives and solid state drives. To provide data redundancy, RAID 0, 1, 5, and 10 modes are supported. For PCIe expansion, there are three PCIe 3.0/2.0 x16 slots (40-Lane CPU), three PCIe 3.0/2.0 x16 slots (28-Lane CPU), one PCIe 2.0 x16 slot (x4 mode), and two PCIe 2.0 x1 slots.
The rear panel of the X99-A also offers a variety of ports. There are six USB 3.0 ports, four USB 2.0 ports, one PS/2 keyboard/mouse combo port, five audio jacks, one Optical S/PDIF digital audio out port, and one USB BIOS Flashback button. There is also a Gigabit Ethernet port for Internet access when connected to a network switch, router, or modem.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS X99-A Motherboard X99-A in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS X99-A Motherboard X99-A:
Specifications
CPU
Intel Socket 2011-v3 Core i7 Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology (depends on the CPU type)
40-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
28-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x4) 1 x PCIe 2.0 x16 (x4 mode) 2 x PCIe 2.0 x1 (x1 mode)
Storage
Intel Core i7 Processors 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Supports PCIe SSD only)
Intel X99 chipset 1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports 8 x SATA 6 Gb/s port(s) Supports RAID 0, 1, 5, 10 Supports Intel Smart Response Technology and Intel Rapid Recovery Technology
LAN
Intel I218V, 1 x Gigabit LAN Controller
Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in) - High-fidelity audio OP AMP(s)
Audio Features - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port at the back panel - BD Audio Layer Content Protection - Audio Shielding: Helps ensure analog/digital separation and reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides high quality sound for headphone and speakers - Japanese-made audio capacitors: Provide warm, natural, and immersive sound with good clarity and fidelity - De-pop circuit: Reduces start-up popping noise to audio outputs - Audio performance is delivered according to the audio configuration - EMI protection cover to prevent electrical noise that affects the amplifier quality
USB Ports
Intel X99 chipset 5 x USB 3.0/2.0 ports (4 at mid-board)
Intel X99 chipset 8 x USB 2.0/1.1 ports (4 at back panel, 4 at mid-board)
ASMedia USB 3.0 controller 5 x USB 3.0/2.0 ports (5 at back panel)
Special Features
5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing more efficient CPU performance, power saving, digital power control, whole system cooling, and even tailor your own app usages
ASUS 5X Protection - ASUS DIGI+ VRM - 8 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Helps protect against short circuit damage - ASUS ESD Guards - ESD protection - ASUS 5K-Hour Solid Capacitors - up to 2.5x long lifespan with good durability - ASUS Stainless Steel Back I/O - up to 3x more durable corrosion-resistant coating
ASUS TPU - Auto Tuning - GPU Boost - TPU switch
ASUS EPU - EPU switch
ASUS Digital Power Design - Digital 8 Phase Power Design - Digital 4 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility
ASUS Exclusive Features - Remote GO! - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger+ - USB Charger+ - M.2 & SATA Express - Anti-Surge - Onboard Button: Power/Reset - ASUS UEFI BIOS EZ Mode featuring user-friendly graphical interface - USB 3.0 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2
Interactive HomeCloud - Media Streamer
ASUS EZ DIY - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS USB BIOS Flashback - Push Notice
ASUS Q-Design - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
Special Memory O.C. Design Turbo App Fan Xpert 3
Operating System Support
Windows 8.1, 8, and 7 86x64
Back I/O Ports
1 x PS/2 keyboard/mouse combo port 1 x LAN (RJ45) port 6 x USB 3.0 ports (blue) 4 x USB 2.0 ports 1 x Optical S/PDIF out 5 x Audio jacks 1 x USB BIOS Flashback Button
Internal I/O Ports
1 x AAFP connector 2 x USB 3.0 connectors support additional 4 USB 3.0 ports (19-pin) 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports 1 x SATA Express connector: gray 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIe SSD only) 1 x TPM connector 1 x COM ports connector 8 x SATA 6 Gb/s connectors 1 x CPU Fan connectors (1 x 4-pin) 1 x CPU OPT Fan connector (1 x 4-pin) 4 x Chassis Fan connectors (4 x 4-pin) 1 x S/PDIF out headers 1 x Thunderbolt headers 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12 V Power connector 1 x EZ XMP switch 1 x System panel (Q-Connector) 1 x Chassis Intrusion connector 1 x DRCT header 1 x MemOK! button 1 x Thermal sensor connector 1 x TPU switch 1 x EPU switch 1 x CPU/DRAM overvoltage jumper 1 x Power-on button 1 x Reset button 1 x Clear CMOS jumper 1 x 5-pin EXT_FAN (Extension Fan) connector
