User manual for the ASUS Z97-A/USB 3.1 ATX Motherboard Z97-A/USB 3.1
The user manual for the ASUS Z97-A/USB 3.1 ATX Motherboard Z97-A/USB 3.1 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

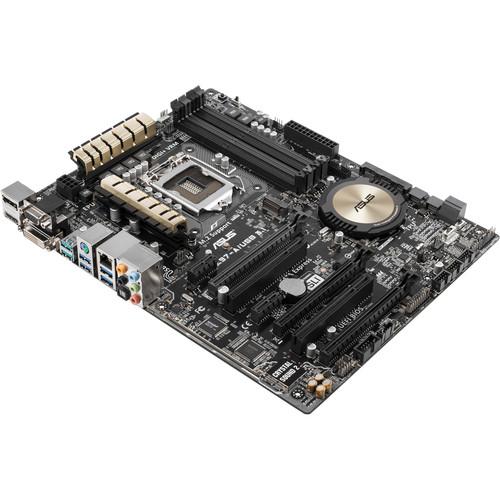

Combining as well as optimizing all your computer components, the ASUS Z97-A/USB 3.1 ATX Motherboard features an LGA1150 socket that accepts 4th and 5th generation Intel processors and supports up to 32GB of DDR3 RAM modules. With the 5-Way Optimization feature, the motherboard provides better system performance by delivering precision power and intelligently controls the fans to ensure everything stays cool, while also offering everyday energy savings. Utilizing the motherboard's M.2 or SATA Express connector, which transfers data up to 10 Gb/s, with a high-performance SSD, allows the system run to faster by installing the operating system and frequently used programs on the drive.
The integrated Intel GPU delivers smooth video streams and high-resolution graphics to a display via the DisplayPort, HDMI, DVI-D, or VGA port. When more graphics power is needed, this motherboard is outfitted with three PCI Express x16 slots for supporting multiple dedicated graphics cards in either SLI or CrossFireX configurations. In addition, there are two PCIe 2.0 x1 slots and one PCI slot. To complete the multimedia experience, Realtek Audio ALC892 features Crystal Sound 2 technology using Japanese-made capacitors and an amplifier to provide clarity and fidelity when listening to music or movies.
This motherboard has four SATA III 6 Gb/s connectors along with a variety of ports that include two USB 3.1 ports, four USB 3.0 ports, one PS/2 combo port, five audio jacks, and one Optical S/PDIF digital audio out port. For network connectivity, it offers a Gigabit Ethernet port that provides a reliable and fast connection to the Internet. Included with the motherboard to help you build your system are a support disc, SATA cables, SLI bridge, I/O shield, and a Q-connector.
|
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS Z97-A/USB 3.1 ATX Motherboard Z97-A/USB 3.1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ASUS Z97-A/USB 3.1 ATX Motherboard Z97-A/USB 3.1:
| Form Factor | ATX | | CPU | Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology | | Chipset | Intel Z97 | | Memory | 4 x DIMM slots
Max. 32 GB
Supports DDR33200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz
Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) | | Multi-GPU Support | Supports NVIDIA Quad-GPU SLI Technology
Supports AMD 3-Way CrossFireX Technology | | Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x2 mode)
2 x PCIe 2.0 x1
2 x PCI | | Storage | Intel Z97 Chipset
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6 Gb/s ports, gray
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology | | LAN | Intel I218V, 1 x Gigabit LAN Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance | | Wireless | None | | Audio | Realtek ALC892 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
Supports jack-detection, multi-streaming, front panel jack-retasking | | USB | Intel Z97 Chipset
6 x USB 3.0/2.0 (4 at back panel, blue, 2 headers at mid-board)
6 x USB 2.0/1.1 (6 headers at mid-board)
ASMedia USB 3.1 controller
2 x USB 3.1/3.0/2.0 ports (2 at back panel, teal blue) | | Back I/O Ports | 1 x PS/2 keyboard/mouse combo ports
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port
2 x USB 3.1 (teal blue)
4 x USB 3.0 (blue)
1 x Optical S/PDIF out
5 x Audio jacks | | Internal I/O Ports | 1 x USB 3.0 header supports additional 2 USB 3.0 ports (19-pin)
3 x USB 2.0 headers support additional 6 USB 2.0 ports
1 x SATA Express connector, compatible with 2 x SATA 6 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
4 x SATA 6 Gb/s connectors
1 x CPU Fan connector (4 -pin)
1 x CPU OPT Fan connector (4 -pin)
4 x Chassis Fan connectors (4 -pin)
1 x S/PDIF out header
1 x Thunderbolt header
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x EZ XMP switch
1 x Front panel audio connector (AAFP)
1 x System panel (Q-Connector)
1 x DRCT header
1 x MemOK! button
1 x TPU switch
1 x EPU switch
1 x Power-on button
1 x Clear CMOS button | | BIOS | 64 Mb Flash ROM
UEFI AMI BIOS
PnP
DMI2.7
WfM2.0
SM BIOS 2.8
ACPI 5.0
Multi-language BIOS
ASUS EZ Flash 2
CrashFree BIOS 3
F11 EZ Tuning Wizard
F6 Qfan Control
F3 My Favorites
Quick Note
Last Modified log
F12 PrintScreen
F3 Shortcut functions
ASUS DRAM SPD (Serial Presence Detect) memory information. | | Manageability | WfM 2.0, DMI 2.7, WOL by PME, PXE | | Supported Operating Systems | Windows 8.1, 8, 7 | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 13.0 x 10.5 x 2.7" | |
