User manual for the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204
The user manual for the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

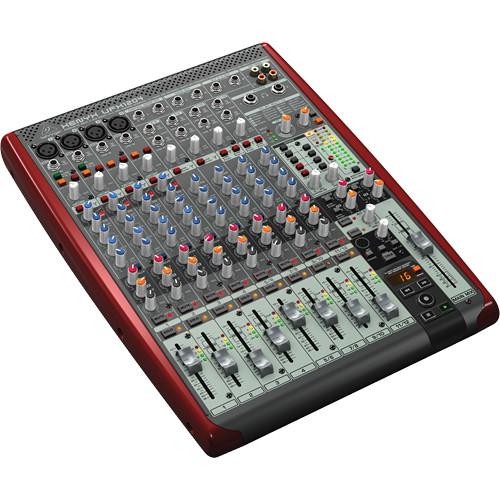

From input to output, the XENYX UFX1204 Premium 12-Input 4-Bus Mixer from Behringer is all about functionality, ease of use, and versatility. Mono channels on this mixer feature semi-parametric mid control, allowing you to dial in the frequency center and boost or cut by as much as 15 dB. All channels feature XENYX mic preamps and accept both balanced XLR and 1/4" TRS, as well as unbalanced 1/4" TS connections. A Line / Hi-Z switch is also provided on channels 1 & 2 so you can connect acoustic, electric, and bass guitars without the need for an external DI box.
This mixer makes it easy to capture your live performances or home recording sessions. All you need to do is to plug a USB stick into the rear panel, and hit the record button on the 16-track recorder control interface. You can even control any compatible computer-based DAW directly from your UFX mixer via MIDI. Also, the channel EQ on this XENYX mixer allows you to imbue signals with warmth and detailed musical character. Even when applied generously, these equalizers exhibit good audio quality. Additionally, the mixer features individually switchable, true +48V phantom power on all mono channels, allowing you to use even top-of-the-line studio condenser microphones.
Stereo channels on the mixer support balanced and unbalanced 1/4" line connections and the 4-band British EQs provide tonal adjustment. All channels feature 4 Aux Sends, switchable Pre / Post FireWire Sends, Mute / Alt 3-4 functionality, and smooth, long-wearing 60mm logarithmic-taper faders, as well as a 100mm main mix fader.
The one-knob compression design on the mixer is available on all mono channels and is easy to operate, even for entry-level users. Now you can easily dial in the apt amount of compression for instruments and vocals, creating powerful mixes with punch and clarity.
The UFX1204 mixer comes with a high-end stereo FX processor with 16 editable presets that include reverb, chorus, flanger, delay, phaser, multi-effects, and tap function for performance enhancement.
This mixer also includes access to a free download of Tracktion 4, which is fun and easy-to-use music production software that puts everything you will need on your desktop, on a single screen without all the drop-down and hidden menus that are common to most other DAWs. This software does not limit the number of tracks you can record, or the number of effects you can use. Recording and editing is easier and you simply have to drag, drop, cut, copy, or paste. Additionally, you can also share it with other Tracktioneers so they can listen, collaborate, and edit.
|
If you own a Behringer analog recording mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204:
| Microphone Inputs | 4 (XENYX Mic preamp) | | Type | XLR, electronically balanced, discrete input circuit | | Equivalent Input Noise | 20 Hz to 20 kHz:
At 0 Ω Source Resistance: -129 dB / 131 dB A-weighted
At 50 Ω Source Resistance: -128 dB / 130 dB A-weighted
At 150 Ω Source Resistance: -127 dB / 129 dB A-weighted | | Frequency Response | <10 hz to 140 khz (-1 db)
<10 Hz to 200 kHz (-3 dB) | | Gain Range | +10 to +60 dB | | Maximum Input Level | +12 dBu at +10 dB gain | | Impedance | Approximately 2.06 kΩ balanced
Hi-Z Input: 1 MΩ | | Signal to Noise Ratio | 110 dB A-weighted (-10 dBu in at +32 dB gain) | | THD + N | 0.0045% (-20 dBu in at +20 dB gain) | | Phantom Power | +48 V, switchable per mic channel | | Type | 1/4" TRS connector, balanced | | Impedance | 20 kΩ balanced, 10 kΩ unbalanced | | Gain Range | -10 dB to +40 dB | | Maximum Input Level | 30 dBu | | Type | 1/4" TRS connector, balanced | | Impedance | 20 kΩ balanced, 10 kΩ unbalanced | | Gain Range | -20 dB to +20 dB | | Maximum Input Level | +22 dBu | | Type | CD / Tape In & Out: RCA connector | | Impedance | CD / Tape In: 10 kΩ
CD / Tape Out: 1 kΩ | | Maximum Input Level | +22 dBu | | Maximum Output Level | +22 dBu | | EQ Type Mono Channels | 3-Band Semi-Parametric:
Low: 80 Hz / ±15 dB
Mid: 100 Hz to 8 kHz / ±15 dB
High: 12 kHz / ±15 dB
Low Cut: 80 Hz, 18 dB/oct | | EQ Type Stereo Channels | 4-Band Fixed:
Low: 80 Hz / ±15 dB
Low Mid: 300 Hz / ±15 dB
High Mid: 3 kHz / ±15 dB
High: 12 kHz / ±15 dB | | Channel Inserts | Type: 1/4" TRS connector, unbalanced
Maximum Input Level: +22 dBu | | Cross Talk | Main Fader Closed: 90 dB
Channel Muted: 88 dB
Channel Fader Closed: 88 dB | | Type | Aux Sends: 1/4" TS connector, unbalanced
Aux Returns: 1/4" TRS connector, balanced | | Impedance | Aux Sends: 120 Ω
Aux Returns: 20 kΩ balanced, 10 kΩ unbalanced | | Maximum Output Level | Aux Sends & Returns: +22 dBu | | Main Outputs | Type: XLR + 1/4" TRS balanced
Impedance: 240 Ω balanced, 120 Ω unbalanced
Maximum Output Level: +28 dBu | | Control Room Outputs | Type: 1/4" TS connector, unbalanced
Impedance: 120 Ω
Maximum Output Level: +22 dBu | | Phones | Type: Dual 1/4" TRS connector, unbalanced
Maximum Output Level: +22 dBu / 23 Ω - 300 mW at 100 Ω | | Converters | 24-bit Delta-Sigma
128 times over-sampling | | Sampling Rate | 48 kHz | | Operating Modes | FireWire 400 or USB 2.0 | | Connectors | 6-pin FireWire 400 (IEEE1394A)
USB 2.0 Type B | | Converters | 24-bit | | Sample Rate | 44.1 / 48 / 88.2 / 96 kHz | | Channel Quantity | 16 x 4 in / out | | Operating Systems | Windows XP or higher, Mac OS X | | Audio Support | Low Latency: ASIO (Win), CoreAudio (Mac) | | Transport Controls | Standard MIDI mode (CC / note commands) or Mackie control mode | | Connector | USB 2.0 (Type A) for Stand-Alone Mode | | Storage Device | External USB 2.0 Hard-Disk Drive (Operation depends on required power consumption) | | Sample Rate | 44.1 / 48 kHz | | File Format | WAV (uncompressed) | | File System | FAT 16 / 32 | | Number of Channels | Recorded: 16 tracks (stored as mono WAV files) | | Voltage | 100 to 240 V, 50 / 60 Hz | | Power Consumption | 60 W | | Fuse | T 2 A H 250 V (100 to 230 V, 50 / 60 Hz) | | Connector | Standard IEC receptacle | | Dimensions (H x W x D) | 3.8 x 12.2 x 17.2" (96.5 x 309.9 x 436.9 mm) | | Weight | 9.9 lb (4.5 kg) | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 20.5 x 16.3 x 7.0" | |
The user manual for the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204 can be downloaded in .pdf
format if it did not come with your new analog recording mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Behringer users keep a unique electronic library
for Behringer analog recording mixerss,
where you can use our link to download the user manual for the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204.
The user manual lists all of the functions of the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204,
all the basic and advanced features and tells you how to use the analog recording mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Behringer service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204. User manuals are also
available on the Behringer website under Pro Audio - Recording - Analog Recording Mixers.
Question and answer discussion forum concerning user instructions and resolving problems with the Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204
Post new comment to Behringer XENYX UFX1204 Premium 12-Input 4-Bus Mixer UFX1204
| Subject: Time difference /matching audio | | Date: 29.03.2022 23:07:04 | Author: Jack | Hi, this is my first post.
Hope it is ok.
I am having problems re-recording and time matching some audio (which is 20mins long) with the original audio of a video file.
I re-recorded the audio onto the UFX104's USB port onto a USB Drive. I used the original videos audio file as a reference, feeding it into track 1 while recording other audio onto the other tracks.
I retrieved all the WAV files from the USB Drive including the reference track and placed them next the original audio file from the video. They did not match, the length was shorter of the new tracks compared with the original. I tried changing the sample rate from 44.1kHz to 48kHz and this made the difference greater. | | Reply |
| Subject: Full manual | | Date: 19.12.2017 22:08:17 | Author: Paul | Also your: Additional parameters.....
Links above do not work.
How do I find your forum page? Thanks | | Reply |
| Subject: Full manual | | Date: 19.12.2017 22:04:31 | Author: Paul | Your link is to the "QUICK START GUIDE" and is not a complete user manual!
Where can I get a copy........please | | Reply |
