User manual for Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Blackmagic Design
- Basic description and contents of package
- Product classification: Professional Video - Digital Cine Cameras
- Safety instructions
- Startup and operation of the digital cine cameras
- Tips for setting up your Blackmagic Design
- Settings and expert assistance
- Contact Blackmagic Design service
- Troubleshooting
- Warranty information
- Price: 995 USD
|
We recommend checking out our discussion threads on the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT,
which address similar problems with connecting and setting up Digital Cine Cameras Blackmagic Design.
|
User manual for the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT
The user manual for the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

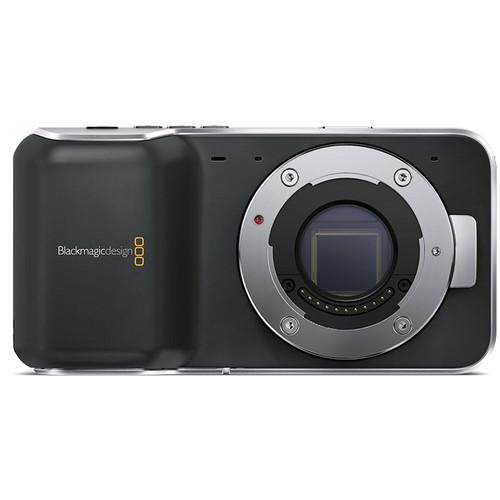

The Blackmagic Pocket Cinema Camera from Blackmagic Design is a compact Super 16 format camera designed for digital film production. The Super 16 sized sensor has an effective resolution of 1920 x 1080 and is capable of capturing 13 stops of dynamic range. The Pocket Cinema Camera records Full HD video in either the lossless CinemaDNG RAW or Apple ProRes 422 (HQ) format. The active Micro Four Thirds lens mount can accommodate a growing range of MFT format lenses as well as a host of excellent legacy lenses via optional adapters. Blackmagic Design has packed all of these impressive features into a remarkably compact (5 x 2.6 x 1.5") and lightweight (12.5 oz) magnesium alloy chassis.
|
If you own a Blackmagic Design digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT:
| Sensor Size | 12.48 x 7.02 mm (effective) | | Effective Resolution | 1920 x 1080 | | Dynamic Range | 13 stops | | Lens Mount | Active MFT | | Crop Factor | 2.88x crop factor compared to Full-Frame | | Recording Media | Removable SDXC and/or SDHC cards (exFAT or HFS+ format) | | Recording Formats | Lossless CinemaDNG RAW
Apple ProRes 422 (HQ) (QuickTime MOV) | | Recording Resolution | 1920 x 1080 | | Frame Rates | 23.98p, 24p, 25p, 29.97p, 30p | | Bit Rate | 220 Mbps using Apple ProRes 422 (HQ) | | Video Output | Micro HDMI type D (x1) | | Digital Audio Output | 2 channels, 48 kHz and 24 bit (embedded in HDMI output) | | Analog Audio Input | 3.5mm stereo mini jack (x1) | | Analog Audio Output | 3.5mm stereo mini jack (x1) | | Remote Control | 2.5mm LANC (x1) for record START/STOP, iris control and focus | | Computer Interface | USB 2.0 mini B port (for software updates and configuration) | | Power Input | 0.7mm DC jack for power and battery charging (x1) | | Display Type | Integrated LCD | | Display Size | 3.5" | | Display Resolution | 800 x 480 | | Built-In Microphone | Integrated stereo microphone | | Built-in Speaker | Integrated mono speaker | | Mounting | 1/4"-20 UNC thread (x1, on top of camera)
1/4"-20 UNC thread (x1, tripod mount on the bottom) | | Supported Software | Apple Final Cut Pro, Adobe After Effects, Nuke - The Foundry, Adobe Photoshop, DaVinci Resolve | | Operating System | Mac OS X 10.8 Mountain Lion or later
Windows 7 or later | | Power | 12-20 VDC | | Battery | Type: EN-EL20 compatible, rechargeable lithium ion battery
Battery Life: approx. 1 hour of continuous recording time
Charge Time: approx. 1 hour and 15 minutes when the camera is off and approximately 2 hours when in use | | Operating Temperature | 32 ~ 104° F (0 ~ 40° C) | | Storage Temperature | -4 ~ 113° F (-20 ~ 45° C) | | Relative Humidity | 0 ~ 90% non-condensing | | Dimensions | 5.04 x 1.49 x 2.6 (128 x 38 x 66 mm) | | Weight | 12.52 oz (355 g) | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.6 x 7.8 x 2.1" | |
The user manual for the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT can be downloaded in .pdf
format if it did not come with your new digital cine cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Blackmagic Design users keep a unique electronic library
for Blackmagic Design digital cine camerass,
where you can use our link to download the user manual for the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT.
The user manual lists all of the functions of the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT,
all the basic and advanced features and tells you how to use the digital cine cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Blackmagic Design service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Blackmagic Design Pocket Cinema Camera CINECAMPOCHDMFT. User manuals are also
available on the Blackmagic Design website under Professional Video - Digital Cine Cameras.
