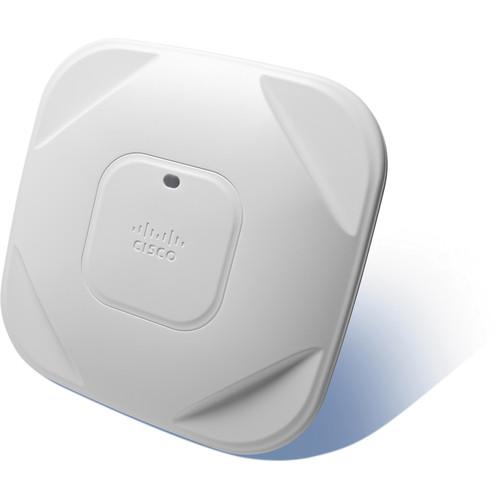

Click to enlarge image
We recommend checking out our discussion threads on the Cisco Aironet 1600 Series Access Point AIR-CAP1602I-A-K9,
which address similar problems with connecting and setting up Wireless Access Points Cisco.
User manual for the Cisco Aironet 1600 Series Access Point AIR-CAP1602I-A-K9
The user manual for the Cisco Aironet 1600 Series Access Point AIR-CAP1602I-A-K9 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.
The Aironet 1600 Series Access Point from Cisco is an entry-level 802.11n-based access point designed to address the wireless connectivity needs of small and medium-sized enterprise networks. It provides functionalities such as CleanAir Express for better cover through spectrum intelligence, and Clientlink 2.0 for entry level networks that have a mixed client base. The Aironet 1600 features 802.11n-based 3x3 Multiple-Input Multiple-Output (MIMO) technology with two spatial streams.
If you own a Cisco wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco Aironet 1600 Series Access Point AIR-CAP1602I-A-K9 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco Aironet 1600 Series Access Point AIR-CAP1602I-A-K9:
802.11n
3 x 3 Multiple-Input Multiple-Output (MIMO) with two spatial streams Maximal Ratio Combining (MRC) 20 and 40 MHz channels PHY data rates up to 300 Mb/s Packet Aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 Dynamic Frequency Selection (DFS) (Bin 5) Cyclic Shift Diversity (CSD) support
Frequency Band and 20 MHz Operating Channels
A Regulatory Domain: 2.412 to 2.462 GHz, 11 channels 5.180 to 5.320 GHz, 8 channels 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz, 5 channels
The maximum power setting will vary by channel and according to individual country regulations.
Integrated Antenna
2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360° 5 GHz, gain 4.0 dBi, horizontal beamwidth 360°
External Antennas
Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers 802.11n antennas delivering optimal coverage for a variety of deployment scenarios (sold separately)
Interfaces
10/100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45)
System Memory
256 MB DRAM 32 MB flash
Power Requirements
Input: AP1600: 44 to 57 VDC Power Supply and Power Injector: 100 to 240 VAC, 50 to 60 Hz
Powering Options
802.3af Ethernet switch Cisco AP1600 power injectors (AIR-PWRINJ4, AIR-PWRINJ5) Cisco AP1600 local power supply (AIR-PWR-B)
Power Draw
AP1600: 12.95 W
When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Environmental
Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -22 to 158°F / -30 to 70°C Operating Humidity: 10 to 90% non-condensing Operating Altitude: 104°F / -40°C; 9,843 ft / 3,000 m Non-Operating Altitude: -13°F / -25°C 15,000 ft / 4,572 m
Compliance
Safety: UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 Radio Approvals: FCC Part 15.247, 15.407 RSS-210 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 33 (Japan) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) AS/NZS 4268.2003 (Australia and New Zealand) EMI and susceptibility (Class B) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC IEEE Standard: IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d Security: 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA 802.1X Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) EAP Types: Extensible Authentication Protocol-Transport Layer Security (EAP-TLS) EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 or EAP-MSCHAPv2 Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) PEAPv1 or AP-Generic Token Card (GTC) EAP-Subscriber Identity Module (SIM) Multimedia Wi-Fi Multimedia (WMM) Others FCC Bulletin OET-65C RSS-102
