User manual Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL

Operating instructions and pdf manual for use - Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL User manual, User manual Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL, Da-Lite, 35194EL, Advantage, Electrol, Motorized, Front,

User manual for Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL

Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Wide Formats)
  • Safety instructions
  • Startup and operation of the electric screens (wide formats)
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL, which address similar problems with connecting and setting up Electric Screens (Wide Formats) Da-Lite.


User manual for the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL

The user manual for the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Wide Formats).

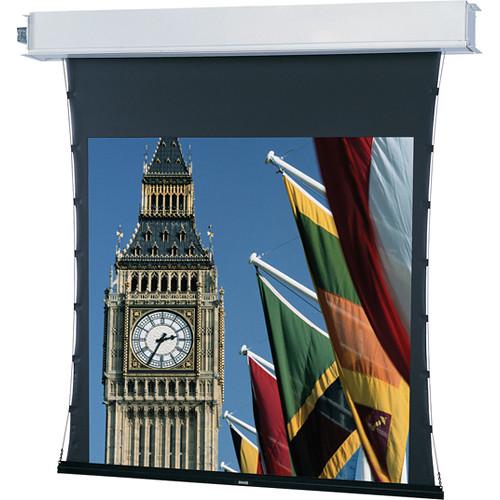

The Dalite 90 x 160" Advantage Electrol Projection Screen is a unique design. Construction of this ceiling recessed screen permits the case to be installed first and the fabric added later once a suitable projection surface is decided on. This is a big "plus" since companies constructing viewing rooms may not be certain of what they need in a screen. However, the Advantage permits the basic frame to be installed in the ceiling - ready for a finished fabric assembly to be added when all is prepped.
If you own a Da-Lite electric screens (wide formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL:
Specifications
    Type
    Style Advantage Electrol
    Front/Rear Projection Front
    Mount Ceiling recessed
    Finish Cinema Vision; flame retardant and mildew resistant fiberglass
    Tension Control Tensioned
    Keystone Control Not Applicable
    Dimensions
    Overall Size Not Specified by Manufacturer
    Image Size 90 x 160" (2.3 x 4.1 m) (H x W)
    Diagonal 184" (4.7 m)
    Format HDTV
    Aspect Ratio 16:9
    Masking Options Standard black masking borders
    Controls
    Voltage 220V, 50Hz European Voltage

    This item is wired for 220V ONLY
    Integrated Control With Low Voltage Connector

    Motor mounted inside the roller
    Noise silencer to be three wire quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor
    Electric brake to prevent coasting
    Preset, adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
    Control Options Single Motor Low Voltage Control System
    Dual Motor Low Voltage Control System
    Single Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter
    Dual Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter
    Casing
    Color White
    Material Extruded aluminum
    Length 169.5" (4.3 m)
    General
    Shipping Weight 123 lb (55.8kg)
    Packaging Info
    Package Weight 182.0 lb
    Box Dimensions (LxWxH) 185.0 x 13.0 x 10.0"
    The user manual for the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL can be downloaded in .pdf format if it did not come with your new electric screens (wide formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite electric screens (wide formats)s, where you can use our link to download the user manual for the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL.

    The user manual lists all of the functions of the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL, all the basic and advanced features and tells you how to use the electric screens (wide formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite 35194EL Advantage Electrol Motorized Front 35194EL. User manuals are also available on the Da-Lite website under A/V Presentation - Projection Screens - Electric Screens (Wide Formats).
