User manual for the Da-Lite 85087E Designer Electrol Motorized Projection 85087E

The user manual for the Da-Lite 85087E Designer Electrol Motorized Projection 85087E provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats).

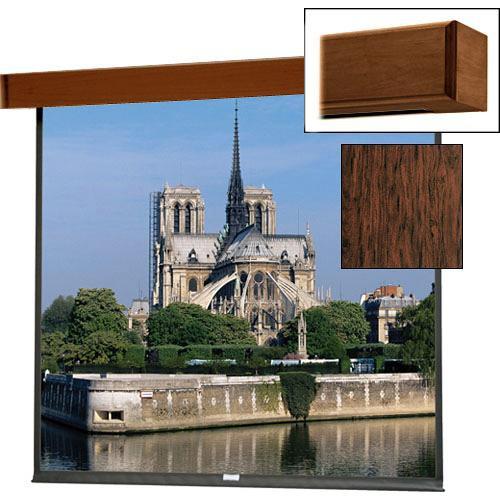

The Dalite 96 x 96" Designer Electrol Motorized Projection Screen offers you a choice of stylish case finishes in either laminates or veneers. In this way, you can choose your screen design to match the decor of your venue. This type of screen is a great choice for a business environment where aesthetics are crucial.

The motor has a sophisticated braking system that is designed to automatically and precisely stop the picture surface in the "up" or "down" position thereby preventing "coasting". In addition, the motor is an oiled-for-life design with an automatic thermal cutoff that prevents burnouts. The in-the-roller motor is designed to provide reduced noise during operation.

One of the best features of this screen is the easy access to both the motor and fabric assemblies. This means that should you ever decide to change the screen surface, you will not have to rip out the entire installation. This reliable and fashionable screen comes with a Decora three-position wall switch.
If you own a Da-Lite electric screens (square & 4:3 formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 85087E Designer Electrol Motorized Projection 85087E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 85087E Designer Electrol Motorized Projection 85087E:

Go To

Type
Style Designer Electrol
Front/Rear Projection Front
Mount Wall or Ceiling
Finish Matte White; flame retardant and mildew resistant fiberglass
Tension Control Not Applicable
Keystone Control Not Applicable
Dimensions
Overall Size Not Specified by Manufacturer
Image Size 96 x 96" (2.4 x 2.4 m)
Diagonal 136" (3.5 m)
Format Square (Audio-Visual)
Aspect Ratio 1:1
Masking Options Standard black masking borders
Controls
Voltage 220V, 50Hz

This item is wired for 220V, European voltage ONLY
Integrated Control Motor mounted inside the roller with a patented noise silencer
Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
Control Options 3-position control switch with cover plate (included)
Casing
Color Figured Mahogany
Material Wood (finished in either veneer or laminate)
Length 107" (2.7m)
General
Shipping Weight 80 lbs (36.3kg)
Packaging Info
Package Weight 80.0 lb
Box Dimensions (LxWxH) 121.0 x 9.0 x 8.0"
