User manual Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit

Operating instructions and pdf manual for use - Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit User manual, User manual Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit, Drobo, 48TB, 12, x, 4TB, B1200i, 12-Bay, NAS, Storage, Arr

User manual for Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit

Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit
  • Manufacturer: Drobo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Attached Storage Drives
  • Safety instructions
  • Startup and operation of the network attached storage drives
  • Tips for setting up your Drobo
  • Settings and expert assistance
  • Contact Drobo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit, which address similar problems with connecting and setting up Network Attached Storage Drives Drobo.


User manual for the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit

The user manual for the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

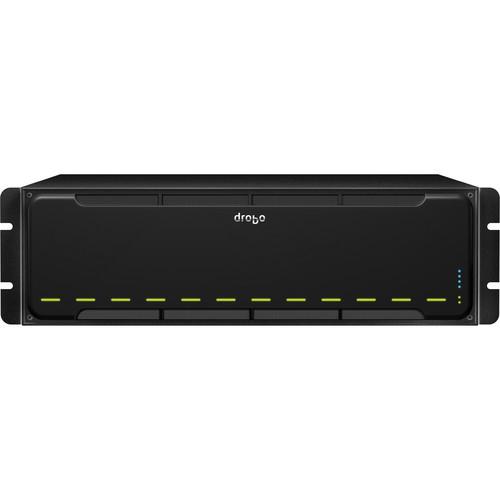

This B&H Kit includes the Drobo B1200i 12-Bay NAS Storage Array with twelve 4TB 3.5" HDDs. By combining the Drobo B1200i Storage Array with twelve 4TB hard drives you can take advantage of 48TB of storage space sufficient for storing a large amount of data. This data can then be distributed throughout your network via the integrated Gigabit Ethernet ports. Take advantage of BeyondRAID technology allowing you to replace drives without the need to power down or restart the array. Once configured, you can utilize the Drobo Dashboard to monitor the status of the array as well as make necessary changes to the system via the integrated administrative options.
If you own a Drobo network attached storage drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit:
Specifications
    • Drobo B1200i 12-Bay NAS Storage Array
      Connectivity • 3 x 100 / 1000 Mbps Ethernet port for data (iSCSI)
      • 1 x 100 / 1000 Mbps Ethernet port for management
      Capacity • 12 drive bays for hard disk drives or solid state drives
      • 3.5" SAS-1/SAS-2 drives
      • 3.5" SATA I / SATA II / SATA III drives
      • Expandable by adding drives or hot-swapping drives with larger ones. Use the Capacity Calculator to estimate available storage in various configurations.
      BeyondRAID Features • Thin Provisioning
      • Instant Expansion
      • Mixed Drive Size Utilization
      • Automatic Protection Levels
      • Dual Disk Redundancy
      • Virtual Hot Spare
      • Data Aware
      • Drive Re-ordering
      Additional Software Features • Automated Data-Aware Tiering
      • Smart Volumes (LUNs, up to 255)
      • Drive Spin Down
      • Drobo Copy
      Ethernet Features • Connection Failover
      • Jumbo frames (up to 9000 bytes MTU)
      Network Protocols • iSCSI
      • CHAP Authentication
      Hardware Features • Carrier-less Drive Bays
      • Field replaceable controller card, power supplies, and cooling fan unit
      OS Compatibility • Mac OS X Server 10.5.8 or later (Intel Only)
      • Mac OS X Server 10.6.8 or later (Intel Only)
      • Windows Server 2003 R2 SP1 32 and 64 bit
      • Windows Server 2008 R2 SP1 64 bit
      • Red Hat Enterprise Linux 6 (Intel only)
      • VMware vSphere 4.1.x (ESXi)
      • Citrix XenServer 5.6
      File System Format • Mac OS X: HFS+
      • Windows: NTFS, FAT32
      • Linux: ext3
      • VMware vSphere: VMFS
      • Citrix XenServer: LVM
      Management • Drive bay indicator lights, capacity gauge, status light
      • Drobo Dashboard version 2.0 or later
      Power Requirements Dual, redundant, hot-swappable power supplies: AC Input - 100/240 VAC, 8/5 A, 50/60 Hz
      Cooling Redundant, hot swappable cooling unit
      Operating Temperature 50 to 95°F / 10 to 35°C
      Non-Operating Temperature 14 to 140°F / -10 to 60°C
      Operating Humidity 20 to 80%
      Certifications • Environmental: RoHS, WEEE, REACH
      • Regulatory: FCC Part 15 Class A; Canada ICES-003 Class B; CE Mark; CISPR22:19973rd Edition Class B; MIC Mark; VCCI Approval to V.3; BSMI Approval to CNS13438; ACA Approval to AS/NZS 3548
      • Safety: UL, cUL, TUV, CB
      Dimensions (WxHxD) 17.17 x 5.20 x 21.85" / 436.1 x 132.1 x 555.0 mm
      Weight 47 lb / 21.32 kg
      Packaging Info
      Box Dimensions (LxWxH) 26.5 x 22.0 x 12.0"
    • 12 x WD 4 TB WD RE SAS 3.5" OEM Hard Drive
      Product Specifications
      Form Factor 3.5"
      Interface SAS 6 Gbps
      Capacity 4 TB
      User Sectors per Drive 7,814,037,168
      Performance
      Rotational Speed 7,200 rpm (nominal)
      Buffer Size 32 MB
      Load/Unload Cycles 600,000 minimum
      Transfer Rate Buffer to disk: 182 MBps (sustained)
      MTBF 1.4 million hours
      Environmental
      Shock Operating Shock (Read): 65 G, 2 ms
      Non-Operating Shock: 300 G, 2 ms
      Acoustics Idle Mode: 31 dBA (average)
      Seek Mode: 34 dBA (average)
      Temperature Operating Temperature: 41 to 131°F (5 to 55°C)
      Non-Operating Temperature: -40 to 158°F (-40 to 70°C)
      Electrical
      Current Requirements Power Dissipation
      Read/Write 11.50 W
      Idle 9.20 W
      General
      Compatibility Windows 7 / Vista / XP / 2000, Windows Server, Linux and Mac OS
      Dimensions (DxWxH) 5.78 x 4.00 x 1.02" (14.68 x 10.16 x 2.59 cm)
      Weight 1.66 lb (0.75 kg)
      Packaging Info
      Box Dimensions (LxWxH) 7.4 x 6.8 x 3.3"
    The user manual for the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit can be downloaded in .pdf format if it did not come with your new network attached storage drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Drobo users keep a unique electronic library for Drobo network attached storage drivess, where you can use our link to download the user manual for the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit.

    The user manual lists all of the functions of the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit, all the basic and advanced features and tells you how to use the network attached storage drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Drobo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Drobo 48TB (12 x 4TB) B1200i 12-Bay NAS Storage Array Kit. User manuals are also available on the Drobo website under Computers & Solutions - Networking - Network Attached Storage Drives.
