User manual for the Elektron Monomachine SFX-60 MKII Sequencing MONOMACHINE SFX60
The user manual for the Elektron Monomachine SFX-60 MKII Sequencing MONOMACHINE SFX60 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Modules.

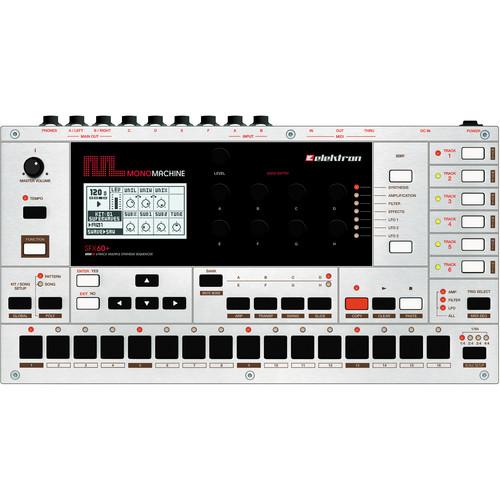

The Elektron Monomachine SFX-60+ MKII is a powerful hardware synthesizer with sequencing and effects built in. The Monomachine SFX-60+ MKII is squarely aimed at music and groove production for producers, DJs, musicians, remixers, sound designers and more. Its sound engine is based on 5 powerful virtual "Machines" that include the Super Wave, SID, FM+, DigiPro and VO Machine sound engines.
If you own a Elektron synthesizer modules and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elektron Monomachine SFX-60 MKII Sequencing MONOMACHINE SFX60 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Mono Synths: SuperWave analogue style synthesis SID MOS 6581 computer style synthesis DigiPRO digital wavetable and beatbox FM+ frequency modulation synthesis V0-6 vocal synthesizer FX Synths: Reverb, gated stereo plate reverb Chorus, stereo 6 tap chorus Dynamix, dynamics compressor Ring modulator Phaser Flanger
Audio Output
Main out level: +15dBu Assignable outs level: +10dBu Output impedance: 100 Ω unbalanced S/N ratio: 100dBFS (20Hz - 20kHz)
Audio Inputs
Input level: +7dBu maximum Audio input impedance: 9 k Ω SNR inputs: 98dBFS (20Hz - 20kHz)
Connections
MIDI In/Out/Thru 6x 1/4" impedance balanced audio out jacks 2x 1/4" audio in jacks 1x 1/4" stereo headphone jack
Hardware
128x64 pixel backlit LCD MIDI In/Out/Thru Advanced dual DSP system 44.1kHz, 24-bit D/A and A/D converters Flash-EEPROM upgradable OS +Drive
Construction
Sturdy steel chassis
Power Supply
Unit power consumption: 10W typical, 18W maximum Recommended power supply: 6 VDC, 3A PSU-2 Electrical Specs: Input voltage range: 100-240V (43-60Hz) Input connector: IEC320-C8 (2 prong) In-rush current: 50A maximum Output voltage: 5.7-6.3VDC Output current: 3.5A maximum Output connector: 5.5 x 2.5mm DC plug, power at center
The user manual for the Elektron Monomachine SFX-60 MKII Sequencing MONOMACHINE SFX60 can be downloaded in .pdf
format if it did not come with your new synthesizer modules, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Elektron users keep a unique electronic library
for Elektron synthesizer moduless,
where you can use our link to download the user manual for the Elektron Monomachine SFX-60 MKII Sequencing MONOMACHINE SFX60.
The user manual lists all of the functions of the Elektron Monomachine SFX-60 MKII Sequencing MONOMACHINE SFX60,
all the basic and advanced features and tells you how to use the synthesizer modules.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Elektron service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Elektron Monomachine SFX-60 MKII Sequencing MONOMACHINE SFX60. User manuals are also
available on the Elektron website under Pro Audio - Musical Instruments - Synthesizer Modules.
