User manual for the Epson PowerLite 580 XGA 3LCD Ultra-Short-Throw V11H604020
The user manual for the Epson PowerLite 580 XGA 3LCD Ultra-Short-Throw V11H604020 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

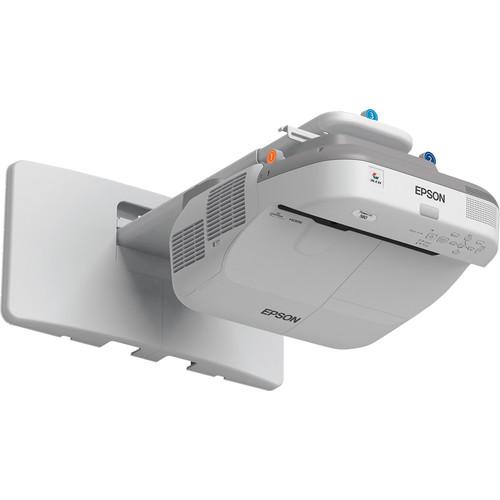

The PowerLite 580 XGA 3LCD Ultra-Short-Throw Projector from Epson is designed for use in classroom settings, and is an ideal companion for digital whiteboards and document cameras. It outputs 3200 lumens and features a 1024 x 768 (XGA) native resolution and a 4:3 native aspect ratio - through letterboxing and scaling can accept a range of other input resolutions up to 1600 x 900 (WXGA++), though loss of quality may result. Falling into the ultra-short-throw category, the PowerLite 580 features a throw ratio of 0.3 to 0.4:1 (digital zoom only) - this means, for example, at 12" from the screen or whiteboard it can throw a 93" diagonal image.
The projector features a number of inputs for the greatest flexibly. There is a VGA input paired with a mirrored VGA loop-out for computers with analog graphics cards and analog document cameras. Two HDMI inputs are provided for newer computers, Blu-ray players, and other HDTV-compatible equipment. And there is a Composite and S-Video input for use with standard definition analog devices such as VCRs and camcorders. A USB type A port allows the projector to show "PC-less" presentations from a USB storage device and is compatible with many document cameras that have USB output. A USB type B port allows the projector to be connected to a computer, as an alternative to using VGA or HDMI - using USB may impact the quality of video because of bandwidth limitations.
The projector can be controlled directly from surface buttons. However, since it will typically be wall or ceiling mounted, an IR remote is included which can be picked up from the back or front of the projector. For remote operation, even from another location, there is an Ethernet port and an RS-232 serial port. With Ethernet the projector can be accessed through a Web browser, and it is possible to stream presentations to it using the iProjection App or use the Multi-PC Collaboration feature. RS-232, meanwhile, allows it to be controlled from automaton systems such as Crestron RoomView.
If you own a Epson multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Epson PowerLite 580 XGA 3LCD Ultra-Short-Throw V11H604020 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
The user manual for the Epson PowerLite 580 XGA 3LCD Ultra-Short-Throw V11H604020 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Epson users keep a unique electronic library
for Epson multimedia projectorss,
where you can use our link to download the user manual for the Epson PowerLite 580 XGA 3LCD Ultra-Short-Throw V11H604020.
The user manual lists all of the functions of the Epson PowerLite 580 XGA 3LCD Ultra-Short-Throw V11H604020,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Epson service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Epson PowerLite 580 XGA 3LCD Ultra-Short-Throw V11H604020. User manuals are also
available on the Epson website under A/V Presentation - Projectors - Multimedia Projectors.
