User manual for the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW
The user manual for the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.

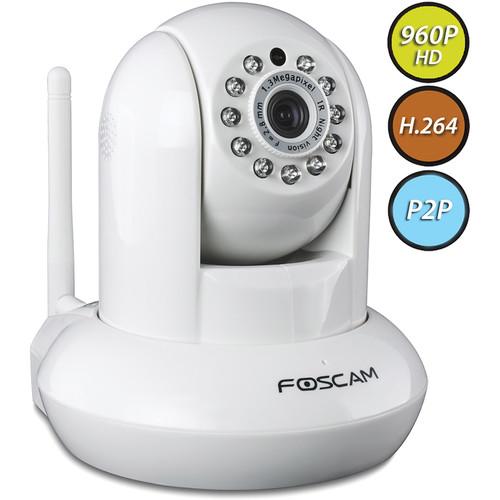

Set up surveillance just by plugging and playing with the white FI9831P Indoor HD Pan/Tilt Wireless IP Camera from Foscam. This Wi-Fi and smartphone accessible device has a wide viewing angle of 70° with its 2.8mm f/2.4 lens and features a 1.3MP 1/3" color CMOS sensor that can capture video at up to 1280 x 960 resolution at 30 fps. It uses H.264 compression to limit bandwidth usage and is dual-stream capable. Also, it has two-way audio support and has the ability to pan 300° and tilt 120°.
In addition to Wi-Fi, the camera offers a standard wired Ethernet connection. It can also be set up to detect motion and send and alert via email or over FTP with a screenshot of the event. Nighttime operation is possible due to the use of 11 IR LEDs with a 26' night vision range. And, it has an SD card slot for internal video recording.
|
If you own a Foscam wireless cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW:
| Image Sensor | 1/3" Color CMOS | | Resolution | 1.3 MP: 1280 x 960 | | Focal Length | 2.8mm | | Aperture | f/2.4 | | Viewing Angle | 70° | | Minimum Illumination | 0.5 lux with IR illuminator | | Video Compression | H.264 | | Video Resolution | 960p (1280 x 960), VGA (640 x 480) | | Streaming | Dual | | Image Adjustments | Brightness, contrast, saturation | | IR LEDs | 11 x IR LEDs with night vision range of 26.2' / 8 m | | Pan/Tilt | Horizontal: 300°
Vertical: 120° | | Audio Input | 1 x 3.5mm audio jack | | Audio Output | 1 x 3.5mm audio jack | | Connection | IEE802.11n/g/n Wi-Fi
10/100 Mbps RJ45 Ethernet | | Network Protocols | TCP/IP, UDP/IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP, ONVIF | | Remote Access | P2P, DDNS | | Alarm | Motion detection, notify via email or FTP | | Storage | 1 x SD card slot (up to 32 GB) | | System Requirements | Windows 2000, XP, Vista, 7, 8, Mac OS
Internet Explorer 6 and later, Firefox and other standard browsers
2.0 GHz CPU or better
256 MB memory or greater
64 MB display memory | | Power Supply | 5 VDC, 2 A | | Power Consumption | 8 W | | Operating Conditions | Temperature: 32 to 131°F / 0 to 55°C
Humidity: 10 to 80% non-condensing | | Storage Conditions | Temperature: 14 to 140°F / -10 to 60°C
Humidity: 0 to 90% non-condensing | | Certifications | CE, FCC | | Dimensions | 4.6 x 4.5 x 5.1" / 117 x 114 x 129 mm | | Weight | 12.3 oz / 348 g | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.1 x 6.5 x 5.1" | |
The user manual for the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW can be downloaded in .pdf
format if it did not come with your new wireless cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Foscam users keep a unique electronic library
for Foscam wireless camerass,
where you can use our link to download the user manual for the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW.
The user manual lists all of the functions of the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW,
all the basic and advanced features and tells you how to use the wireless cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Foscam service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Foscam FI9831P Indoor HD Pan/Tilt Wireless IP Camera FI9831PW. User manuals are also
available on the Foscam website under Surveillance - Surveillance Video - Wireless Cameras.
