User manual for the GOAL ZERO Guide 10 Plus Solar Recharging Kit with AA GZ-41022
The user manual for the GOAL ZERO Guide 10 Plus Solar Recharging Kit with AA GZ-41022 provides
necessary instructions for the proper use of the product Optics - Outdoor Gear - Solar & Portable Power.

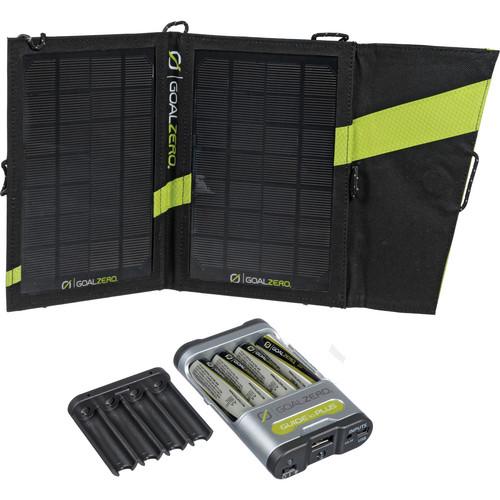

The Guide 10 Plus Solar Recharging Kit from Goal Zero bundles the Guide 10 Plus charger/battery pack with the weather-resistant Nomad 7 Solar Panel, a 4-pack of AA rechargeable batteries and a battery adapter. It enables you to charge the included AAs or optional AAAs via solar power. Additionally, it offers a USB output for charging smartphones and other devices.
The Guide 10 Plus accommodates 4 AA or AAA NiMH batteries, which it can charge using its solar input or USB mini input. A USB 2.0 to mini USB cable is included. To use the sun's rays for power, you simply connect the Guide 10 Plus to the high-efficiency mono crystalline Nomad 7 Solar Panel. Just plug the supplied cord into the Nomad 7's solar output and the Guide 10's solar input. Charging takes about 3-6 hr this way and about 6-10 hr using a USB power source. You can charge your smartphone or other USB-powered device by connecting it to the USB output on the Guide 10 Plus. This unit can also be used as a battery pack for powering the built-in LED flashlight, which is capable of running for over 100 hr per charge using AAs. There is an on/off switch on the Guide 10 for the USB output and LED flashlight, and a charge indicator light is also present.
In addition to its solar output, the Nomad 7 Solar Panel also features a USB output for directly charging devices. It's configured with a 12VDC output for charging other devices, too. The USB and 12V ports can even be used to charge 2 different electronics simultaneously, splitting the incoming solar power between the two. The Nomad 7 also has a port specifically for chaining, allowing you to connect 2 of the units together for greater power. As an extra bonus, a convenient mesh pouch on the back holds accessories.
|
If you own a GOAL ZERO solar & portable power and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the GOAL ZERO Guide 10 Plus Solar Recharging Kit with AA GZ-41022 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the GOAL ZERO Guide 10 Plus Solar Recharging Kit with AA GZ-41022:
| Configuration | 4 AA or AAA NiMH batteries - up to 5.0 V, 2300 mAh, 11 Wh (Goal Zero AAs)
All 4 batteries must be installed for charging to occur | | Inputs | USB-mini: 5.0 V, 0.8 A max., 4.0 W
Solar port: 6.5 V, 1.5 A max., 7.0 W | | Outputs | USB: 5.0 V, 1.0 A max., 5.0 W | | Charging Time | Via USB: approx. 6-10 hr
Via solar port using included Nomad 7 panel: approx. 3-6 hr
Via solar port using optional Nomad 3.5 panel: approx. 6-8 hr | | LED | Type: built-in flashlight
Output: 100 mW
Maximum run time: 100+ hr | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Certifications | FCC, CE | | Dimensions | 2.4 x 3.9 x 0.8" (6.0 x 10 x 2.0 cm) | | Weight | 6.3 oz (180 g) with batteries | | Type | Mono crystalline cell | | Input | 8.0-9.0 V, 7.0 W | | Output | USB: 5.0 V, 1.0 A max., 5.0 W max., regulated
12V port: 12-15 V, 0.2 A max., 3.0 W
8.0 mm Solar port: 15 V, 0.3 A max., 5.0 W max., regulated
2.5 mm mini solar port: 6.5V, 1.1 A max., 7.0 W max. | | Charging Time | Guide 10 Plus: approx. 3-6 hr
Switch 8 recharger: approx. 3-6 hr
Cell phone or MP3 player: approx. 1-3 hr
Smartphone, GPS or camera: approx. 2-4 hr | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Certifications | FCC, CE, RoHS | | Dimensions | Overall folded: 6.5 x 9.1 x 0.2" (16.5 x 23 x 0.4 cm)
Overall unfolded: 16.9 x 9.1 x 0.2" (43 x 23 x 0.4 cm) | | Weight | 12.7 oz (360 g) | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.8 x 8.4 x 2.6" | |
