User manual for the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3
The user manual for the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Ribbon.

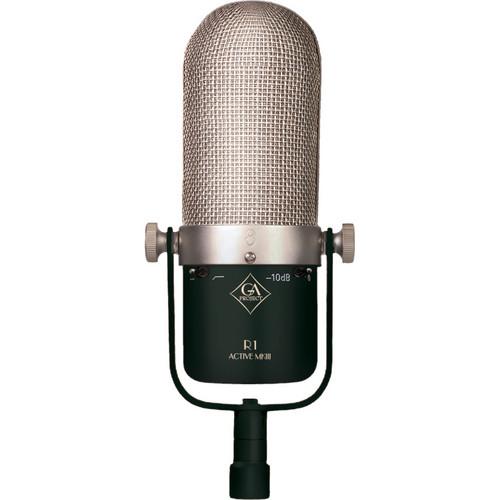

The R1 Active MKIII Active Ribbon Microphone from Golden Age Project offers the smooth high end and extended lows that make ribbon mics so popular with recording engineers and producers. Thanks to its active circuitry, which includes a bipolar/FET discrete low-noise amplifier, it offers higher-than-expected output for a ribbon mic.
The ribbon in the R1 Active MKIII is 50mm long and 2 microns thick. The mic is designed to provide fast and life-like transient reproduction, and can handle sound pressure levels up to 160 dB SPL.
As is typical for a ribbon mic, it has a figure-8 polar pattern, which means it picks up primarily from the front and rear of the capsule and rejects sounds coming from the sides. You can use this to your advantage in the studio to help minimize bleed when two or more sources are recording in the same room. The R1 Active MKIII is well-suited for electric guitar, vocals, strings, horns, acoustic instruments, orchestras, choral groups, and many live-sound applications.
An aluminum flight case and an XLR mic cable are included.
|
If you own a Golden Age Project ribbon and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3:
| Transducer | Ribbon | | Polar Pattern | Figure 8 | | Frequency Range | 30 Hz to 18 kHz | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 160 dB SPL< 1% | | Impedance | 200 ohms | | Load Impedance | 1000 ohms | | Sensitivity | -42 dB @ 1 kHz | | Pad | Yes, 10 dB | | Output Connectors | 3-Pin XLR | | Operating Current Consumption | 4 mA | | Length | 7.28" (185 mm) | | Diameter | 2.72" (69 mm) | | Weight | 3.20 lb (1.45 kg) | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 14.7 x 8.1 x 5.8" | |
The user manual for the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3 can be downloaded in .pdf
format if it did not come with your new ribbon, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Golden Age Project users keep a unique electronic library
for Golden Age Project ribbons,
where you can use our link to download the user manual for the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3.
The user manual lists all of the functions of the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3,
all the basic and advanced features and tells you how to use the ribbon.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Golden Age Project service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Golden Age Project R1 Active MKIII Active Ribbon R 1 ACTIVE MK3. User manuals are also
available on the Golden Age Project website under Pro Audio - Recording - Ribbon.
