User manual Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ

Operating instructions and pdf manual for use - Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ User manual, User manual Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ, Hikvision, DS-2CD4112FWD-IZ, 1.3MP, HD, IR, Indo

User manual for Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ

Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ
  • Manufacturer: Hikvision
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Hikvision
  • Settings and expert assistance
  • Contact Hikvision service
  • Troubleshooting
  • Warranty information

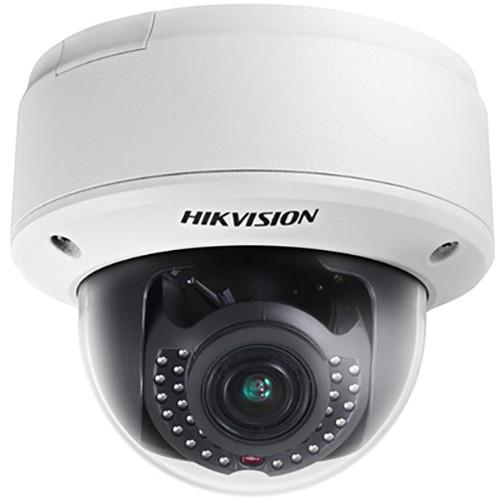

Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ
Click to enlarge image
We recommend checking out our discussion threads on the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ, which address similar problems with connecting and setting up Wired IP Cameras Hikvision.


User manual for the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ

The user manual for the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The DS-2CD4112FWD-IZ 1.3MP HD IR Indoor Dome Network Camera from Hikvision utilizes a 1/3" progressive scan CMOS sensor and a 2.8 to 12mm motorized varifocal lens to capture images at a resolution up to 1280 x 960 at 30 fps. It supports H.264, MPEG4, and MJPEG compression formats with simultaneous triple streaming. The camera also features 3D DNR (Digital Noise Reduction) and WDR (Wide Dynamic Range).
If you own a Hikvision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ:
Specifications
Camera
Image Sensor 1/3" Progressive scan CMOS
Minimum Illumination 0.01 lux @ F1.2, AGC on, 0.014 lux @ F1.4, AGC on
0 lux with IR on
Shutter Time 1 to 1/100,000 sec
Shutter Speed Slow
Lens 2.8 to 12 mm @ F1.4
Angle of View 98.4 to 30.2° (motorized VF lens)
Lens Mount Φ14
Angle Adjustment Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355°
Auto Iris DC drive
Day & Night IR cut filter (Auto/Schedule/Alarm Trigger)
Digital Noise Reduction (DNR) 3D DNR
Wide Dynamic Range 120 dB WDR
Compression
Video Compression H.264 / MPEG4 / MJPEG
H.264 Profile Baseline profile / main profile / high profile
Video Bit Rate 32 kb/s to 16 Mb/s
Audio Compression G.711 / G.726 / MP2L2
Audio Bit Rate 64 kb/s (G.711) / 16 kb/s (G.726)
Maximum Image Resolution 1280 x 960
Frame Rate 60 Hz: 30 fps (1280 x 960, 1280 x 720)
Multi-Streaming Independent setting, up to 60 Hz: 30 fps (1280 x 960)
Image Settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser
BLC Zone configurable
Options HLC, Defog
Image Stabilization Electronic
Image Overlay 128 x 128, BMP 24-bit, zone configurable
ROI Up to 4 configurable areas
Network
Network Storage NAS
Alarm Trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, and Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour
Security User authentication, watermark, IP address filtering, anonymous access, and reset
System Compatibility ONVIF, PSIA, and CGI
Interface
Audio Interface Input: 1-channel 3.5 mm audio interface, Mic in/Line in
Output: 1-channel 3.5 mm audio interface
Communication 1 x RJ45 10 M / 100 M Ethernet port, 1 x RS-485 interface, 1 x RS-232 interface
Alarm 1 x Input, 1 x Output
Video Output 1 Vpp composite output (75 Ω / BNC)
Onboard Storage Built-in microSD/SDHC/SDXC slot, up to 64 GB
General
Operating Conditions -22 to 140°F (-30 to 60°C)
Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 10% , PoE (802.3af)
Power Consumption 6 W; maximum 9 W (IR on: 2 W, Motorized VF lens: 1 W)
IR Range Up to 98.4' (30.0 m)
Impact Protection IEC60068-275Eh, 50J; EN50102, up to IK10
Dimensions (Ø x H) 5.5 × 4.8" (14.0 × 12.2 cm)
Weight 3.1 lb (1.4 kg)
The user manual for the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Hikvision users keep a unique electronic library for Hikvision wired ip camerass, where you can use our link to download the user manual for the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ.

The user manual lists all of the functions of the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Hikvision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Hikvision DS-2CD4112FWD-IZ 1.3MP HD IR Indoor DS-2CD4112FWD-IZ. User manuals are also available on the Hikvision website under Surveillance - Surveillance Video - Wired IP Cameras.
