User manual for the Humminbird 999ci HD SI Combo Fishfinder 409190-1
The user manual for the Humminbird 999ci HD SI Combo Fishfinder 409190-1 provides
necessary instructions for the proper use of the product Optics - Outdoor Gear - Fishing & Marine Technology.

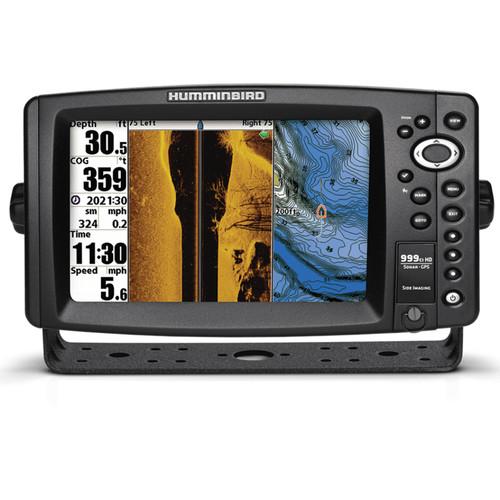

Find your dream fishing spots with the Humminbird 999ci HD SI Combo Fishfinder, featuring DualBeam PLUS Sonar with SwitchFire for versatile coverage and depth as well as Down Imaging Sonar for a more precise view of what's below you with high-frequency sound waves and Side Imaging Sonar that provides a 180° view of objects to the side of your boat. Down Imaging technology scans the water with a beam that is wide side to side by thin front to back in order to produce high definition images while Side Imaging uses multiple beams to cover a wide area for detailed bottom topography and fish-attracting structures.
These systems are rated to work at depths up to 150' (DI/SI) & 1500' (2D) and has a peak to peak power output of 8000W. Also, they can be setup with multiple coverage angles of 20, 60, 2 x 86° and 2 x 55° for a total of 180° due to the use of the DualBeam PLUS sonar system and the SwitchFire enables users to setup multiple views simultaneously. Viewing imagery while out in the elements is no issue with the implementation of a 8" LED-backlit color TFT LCD with a resolution of 800 x 480 pixels. Additionally, this unit has a built-in GPS system with chartplotting capabilities and the ContourXD map system.
The 999ci was designed with advanced functionality in mind with AIS technology and HD Radar support, ensuring that in poor visibility users will still be able to track other boats and objects that are nearby. Dual SD card slots are available for advanced cartography, saving screenshots, sonar recordings, and waypoints as well as updating the internal software. For protection in all elements and just the nature of being near water, this device is IP67-rated from waterproofing down to 3.3' for 30 minutes.
For connectivity, this unit supports NMEA 2000 for viewing boat performance, weather, and more in addition to a 5-port Ethernet switch to link together multiple head units or share transducers. i-Pilot Link is also supported for enabling select Minn Kota Terrova and PowerDrive V2 motors to communicate with the 999ci fishfinder.
|
If you own a Humminbird fishing & marine technology and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Humminbird 999ci HD SI Combo Fishfinder 409190-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Humminbird 999ci HD SI Combo Fishfinder 409190-1:
| Technology | DualBeam PLUS with SwitchFire
Optional QuadraBeam PLUS is available | | Type | 2D Sonar, Down Imaging Sonar, and Side Imaging Sonar | | Coverage | 20, 60, 2 x 86 and 2 x 55° at -10 dB (total of 180°) | | Frequency | 200/83/455/800 kHz | | Target Separation | 2.5" (6.4 cm) | | Power Output | Peak to Peak: 8000 W
RMS: 1000 W | | Maximum Depth | Down/Side Imaging: 150' (46 m)
2D Sonar: 1500' (457 m) | | Mount | Gimbal or optional in-dash | | Transducer | XHS 9 HDSI 180 T | | Cable Length | 20' (6.1 m) | | Transducer Mount | Transom | | Temperature Sensor | Yes, on transducer | | Advanced Features | Included: Precision GPS, SwitchFire Sonar, Screen Snap Shot, Sonar Recording, upgradable internal software, split screen zoom, split screen bottom lock, 3D char view, large digits view, wide/narrow cone split screen, custom view selections, custom digital readout, view preset keys, temperature graph, temperature alarm, freeze frame, instant image update, mark structure on sonar, selective fish ID+, real time sonar, triplog, X-press menu system
Supported: Humminbird mapping, Navionics Gold/HotMaps, Navionics Platinum+, Platinum capable, 360 imaging, i-Pilot link, HD Radar, NMEA 2000, 5-port expansion module, heading sensor GPS, PC connect, external GPS receiver, AIS compatibility | | GPS Support | Built-in | | GPS Tracking | Yes | | GPS Logger | Yes | | Stored Waypoints | 2750 | | Stored Routes | 45 | | Tracks/Points | 50/20000 | | Card Slots | 2 x SD card | | Connections | NMEA 2000
5-port Ethernet switch | | IP Rating | IP67 waterproof/submersible to 3.3' (1 m) for 30 minutes and dust tight | | LCD Screen | 8" (20.3 cm) 800 x 480 LED-backlit color TFT LCD | | Display Colors | 65000 colors | | Power Requirements | 10-20 VDC, 1.0 A | | Power Consumption | 780 mA | | Dimensions | 11.25 x 6.75 x 4.25" (28.6 x 17.1 x 10.8 cm) with gimbal mount
10.75 x 6.00 x 2.50" (27.3 x 15.2 x 6.4 cm) with optional in-dash mount | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 17.1 x 13.8 x 4.5" | |
