User manual for the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K
The user manual for the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - CPU Processors.

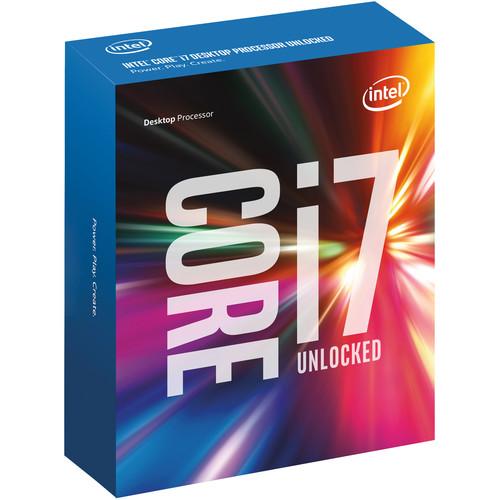

The Core i7-6700K 4.0 GHz Quad-Core Processor from Intel is the sixth generation of the Core i7 product line that is now built using Skylake architecture. This processor features a base frequency of 4.0 GHz and, as with many Skylake technologies, it comes with features such as Intel Turbo Boost 2.0, Hyper-Threading, and vPro. With Intel Turbo Boost 2.0 technology, the maximum clock rate this processor can achieve is 4.2 GHz. Additionally, this processor also features four cores with eight threads in a FCLGA1151 socket and has 8MB of Intel Smart Cache memory. Having four cores allows the processor to run multiple programs simultaneously without slowing down the system, while the eight threads allow applications to complete tasks sooner by working in parallel. This processor also supports up to 64GB of DDR4-2133/1866 MHz and DDR3L 1600/1333 MHz RAM, has integrated Intel HD Graphics 530, and has SSE 4.1/4.2 & AVX 2.0 Extensions, as well as AES New Instructions.
This Intel Core i7-6700K 4.0 GHz Quad-Core processor is well suited for users who are interested in general-use tasks, such as Internet browsing, checking E-mail, document creation and editing, and multimedia playback, as well as more intensive tasks that are able to benefit from overclocking. This processor is also unlocked, meaning that it can be overclocked past its maximum turbo frequency and since this is the "K" version of this processor, it can be overclocked to run faster than the non-K version.. However, overclocking past the maximum turbo frequency is not recommended. Not only will it cause the processor to run much hotter, it will also void your warranty.
|
If you own a Intel cpu processors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K:
| Processor Number | i7-6700K | | Intel Smart Cache | 8 MB | | # of QPI Links | 0 | | Instruction Set | 64-bit | | Instruction Set Extensions | SSE4.1/4.2 AVX 2.0 | | Embedded Options Available | No | | Lithography | 14 nm | | Scalability | 1S Only | | Thermal Solution Specification | PCG 2015D (130 W) | | Conflict Free | Yes | | # of Cores | 4 | | # of Threads | 8 | | Processor Base Frequency | 4.0 GHz | | Max Turbo Frequency | 4.2 GHz | | TDP | 91 W | | Max Memory Size | 64 GB | | Memory Types | DDR4-1966/2133, DDR3L 1333/1600 @ 1.35 V | | Max # of Memory Channels | 2 | | Max Memory Bandwidth | 34.1 GB/s | | ECC Memory Supported | No | | Processor Graphics | Intel HD Graphics 530 | | Graphics Base Frequency | 350 MHz | | Graphics Max Dynamic Frequency | 1.15 GHz | | Graphics Video Max Memory | N/A | | Graphics Output | eDP/DP/HDMI/VGA/DVI | | Execution Units | N/A | | 4K Support | Yes, at 60 Hz | | Max Resolution (HDMI 1.4) | 4096 x 2160 @ 24 Hz | | Max Resolution (DP) | 4096 x 2160 @ 60 Hz | | Max Resolution (eDP - Integrated Flat Panel) | 4096 x 2304 @ 60 Hz | | Max Resolution (VGA) | N/A | | DirectX Support | 11.2 | | OpenGL Support | 4.3 | | Intel Quick Sync Video | Yes | | Intel InTru 3D Technology | Yes | | Intel Insider | Yes | | Intel Wireless Display | Yes | | Intel Clear Video HD Technology | Yes | | Intel Clear Video Technology | Yes | | Number of Displays Supported | 3 | | Device ID | 1912 | | PCI Express Revision | 3.0 | | PCI Express Configurations | Up to 1x16 2x8 1x8+2x4 | | Max # of PCI Express Lanes | 16 | | Max CPU Configuration | 1 | | Package Size | 37.5 x 37.5 mm | | Graphics and IMC Lithography | 14 nm | | Sockets Supported | FCLGA1151 | | Low Halogen Options Available | See MSDS | | Intel Turbo Boost Technology | 2.0 | | Intel vPro Technology | No | | Intel Hyper-Threading Technology | Yes | | Intel Virtualization Technology (VT-x) | Yes | | Intel Virtualization Technology for Directed I/O | Yes | | Intel VT-x with Extended Page Tables (EPT) | Yes | | Intel TSX-NI | Yes | | Intel 64 | Yes | | Intel My WiFi Technology | Yes | | Idle States | Yes | | Enhanced Intel SpeedStep Technology | Yes | | Intel Fast Memory Access | Yes | | Intel Virtualization Technology for Itanium (VT-i) | No | | Intel Stable Image Platform Program (SIPP) | No | | Intel Small Business Advantage | No | | AES New Instructions | Yes | | Secure Key | Yes | | Intel SGX (Software Guard Extensions) | 1 | | OS Guard | Yes | | Trusted Execution Technology | No | | Execute Disable Bit | Yes | | Anti-Theft Technology | Yes | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.5 x 4.8 x 1.8" | |
The user manual for the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K can be downloaded in .pdf
format if it did not come with your new cpu processors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Intel users keep a unique electronic library
for Intel cpu processorss,
where you can use our link to download the user manual for the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K.
The user manual lists all of the functions of the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K,
all the basic and advanced features and tells you how to use the cpu processors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Intel service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Intel Core i7-6700K 4.0 GHz Quad-Core Processor BX80662I76700K. User manuals are also
available on the Intel website under Computers & Solutions - Computer Components - CPU Processors.
