User manual IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60

Operating instructions and pdf manual for use - IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60 User manual, User manual IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60, IR, DEFENSE, IR, Hunter, MKIII, 640, 4.5x-36x, Therm


User manual for IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60

IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60
  • Manufacturer: IR DEFENSE
  • Basic description and contents of package
  • Product classification: Optics - Night & Thermal Vision - Thermal Scopes
  • Safety instructions
  • Startup and operation of the thermal scopes
  • Tips for setting up your IR DEFENSE
  • Settings and expert assistance
  • Contact IR DEFENSE service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60, which address similar problems with connecting and setting up Thermal Scopes IR DEFENSE.



User manual for the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60

The user manual for the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Thermal Scopes.

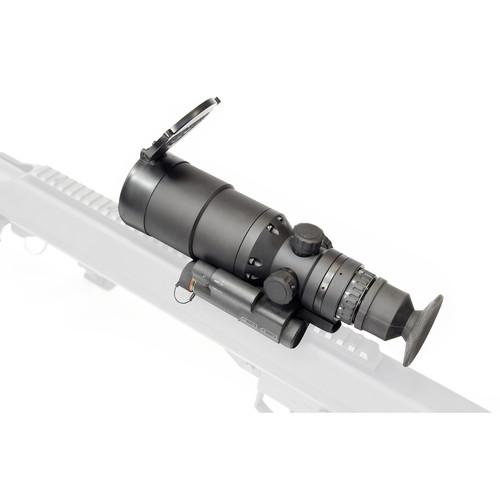

Combining the performance of a military thermal sight with the precision of a riflescope, the IR Hunter MKIII 640 4.5x-36x  Thermal Weapon Sight features a BAE MicroIR uncooled vanadium oxide microbolometer with a spectral range of 8-12µm and a pixel pitch of 12µm. It allows users to see hot and warm object in complete darkness without the need for external illumination. You will detect and see wild animals, livestock, humans, running engines, and other heat sources during day or night. The shock-resistant 60mm, f/1.25 optical system features germanium lenses. While the lens system is thermally stabilized and offers 4.5x optical magnification, the objective lens is anti-reflection coated for improved transmission of infrared light.
If you own a IR DEFENSE thermal scopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60:
Specifications
Array Configuration BAE MicroIR uncooled VOx detector
Spectral Sensitivity 8-12 µm
Sensor Pitch 12 µm
Refresh Rate Fast frame rate: 60 Hz
Power save mode: 30 Hz
Magnification 4.5-36x
Lens System 60mm, f/1.25
Angular Field of View
Minimum Focus Distance 20' (6.1 m)
Diopter Adjustment +4 to -6
Display 640x480 OLED display
Eye Relief 1.1" (27 mm)
Battery / Runtime 2 x CR-123 (3V) lithium batteries/60 Hz: 5 h, 30 Hz: 7.5 h
Operating Temperature -40 to 131°F (-40 to 55°C)
Storage Temperature -49 to 167°F (-45 to 75°C)
Weatherproofing Waterproof, submersible to 3' for 15 minutes
Dimensions 7.4 x 3.1 x 2.9" (188 x 78.7 x 73.7 mm)
Weight 35 oz (990 g)
The user manual for the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60 can be downloaded in .pdf format if it did not come with your new thermal scopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other IR DEFENSE users keep a unique electronic library for IR DEFENSE thermal scopess, where you can use our link to download the user manual for the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60.

The user manual lists all of the functions of the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60, all the basic and advanced features and tells you how to use the thermal scopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from IR DEFENSE service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the IR DEFENSE IR Hunter MKIII 640 4.5x-36x Thermal IRHM3-640-60. User manuals are also available on the IR DEFENSE website under Optics - Night & Thermal Vision - Thermal Scopes.
