User manual for the Kenko KFM-2200 Cine & Flash Meter K-KFM2200C
The user manual for the Kenko KFM-2200 Cine & Flash Meter K-KFM2200C provides
necessary instructions for the proper use of the product Photography - Photo Accessories - Light Meters.

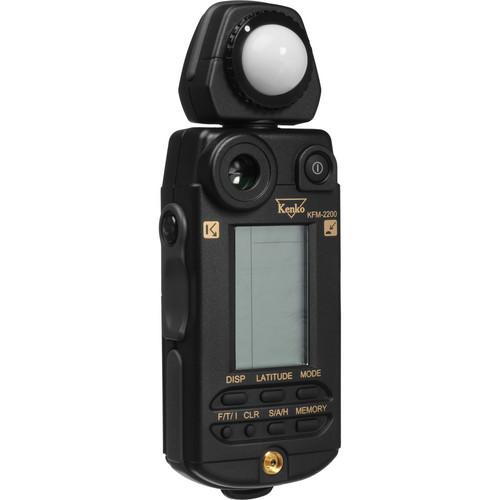

The Kenko KFM-2200 Cine & Flash Meter is a digital handheld exposure meter capable of both incident and reflected light measurement, including flash and strobes. The KFM-2200 utilizes a spherical diffuser with a 270° rotation angle for most readings, including the ability to take a 1° spot measurement using the viewfinder. It can then use one of three measurement modes depending on your specific needs.
For working with both cinema and still photography use, there are a variety of additional settings, especially a large selection of shutter speeds from 30 minutes to 1/16000 second. It even features a flash sync terminal for metering your strobes for still photography. Also, it can display an aperture range from f/1.0 to f/128 and 9/10.
The digital LCD display is backlit to increase readability and shows a variety of parameters, each of which can be set to determine proper exposure values for your camera settings. The KFM-220 also features a viewfinder with diopter adjustment for taking spot measurements of reflected light. It includes a soft case and strap for storage and travel.
If you own a Kenko light meters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kenko KFM-2200 Cine & Flash Meter K-KFM2200C in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kenko KFM-2200 Cine & Flash Meter K-KFM2200C:
Specifications
Type
Handheld ambient and flash light meter
Reception Mode
Incident and spot
Receptor Head
Spherical diffuser
Receptor Element
Silicon photocell
Measuring Modes
AMBI Mode: Ambient light CORD Mode: Flash using a sync cord N CORD Mode: Flash without using a sync cord, incident light only
Measuring Range
ISO 100 Ambient Light, Incident: -2.0 to 19.9 EV Ambient Light, Spot: 2.0 to 24.5 EV Flash, Incident: f/1.0 to f/128 + 0.9 stop Flash, Spot: f/2.8 to f/128 + 0.9 stop
Measuring Distance
1.3 m to infinity for spot measurement
Viewfinder
Single-lens reflect type with fixed focal point
Viewfinder Magnification
1.2x
Viewing Angle
12° (vertical) x 17° (horizontal)
Diopter Adjustment
-3.0 to +1.0
Repeat Accuracy
±0.1 EV
Calibration
Incident: C = 330 (spherical diffuser), C = 250 (flat diffuser) Spot: K = 14
Display Range
Exposure: f/1.0 to f/128 + 0.9 stop in 0.1 stop increments EV: -17 to 40.9 in 0.1 stop increments Shutter Speed, Ambient: 30 min to 1/16000 sec Shutter Speed, Flash: 30 min to 1/1000 sec Frame Rate, 180°: 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 25, 30, 32, 36, 40, 48, 60, 64, 75, 90, 96, 100, 125, 128, 150, 180, 200, 240, 256, 300, 360 ISO: 3 to 8000 in 1/3 stop increments Exposure Difference: -10 to +10 in 0.1 stop increments Analog Scale: f/1.0 to f/90 in 1/2 stop increments Analyze Scale: Flash light proportion 0-100% in 25% increments
Battery Power
1 x alkaline AA battery (LR-6/1.5 V)
Battery Life
Approximately 30 hours of continuous operation
Terminal
Flash sync terminal
Memory
10 measured values
Exposure Calibration
-10 to +10 in 0.1 stop increments
Other Functions
Latitude display function, Light Ratio Analyze function, S/A/H calculation, Brightness difference function
Operating Conditions
Temperature: 14 to 122°F (-10 to 50°C) Humidity: 85% maximum, non-condensing at 95°F (35°C)
Storage Conditions
Temperature: -4 to 131°F (-20 to 55°C) Humidity: 85% maximum, non-condensing at 95°F (35°C)
