User manual Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC

Operating instructions and pdf manual for use - Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC User manual, User manual Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC, Kowa, LMZ123AMDC, 1/2, f/1.8, C-MT, Motor, DC, Auto, LMZ123A


User manual for Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC

Kowa LMZ123AMDC 1/2
  • Manufacturer: Kowa
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Lenses - Lenses
  • Safety instructions
  • Startup and operation of the lenses
  • Tips for setting up your Kowa
  • Settings and expert assistance
  • Contact Kowa service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC, which address similar problems with connecting and setting up Lenses Kowa.



User manual for the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC

The user manual for the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

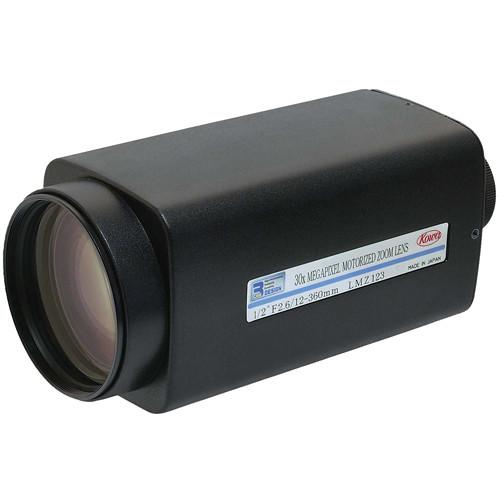

The Kowa LMZ123AMDC 1/2" Motorized Zoom Auto-Iris Lens (12 to 300mm) features a variable focal length for capturing nearby as well as far objects. The motorized zoom function enables easy adjustment of focal length. The auto-iris function enables motorized control of aperture for desired exposures.
If you own a Kowa lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC:
Input Voltage 6 to 12 VDC
Zoom Speed: Approximately 14 seconds / 8 VDC
Current: Maximum 25 mA / 8 VDC
Focus Focus Speed: Approximately 12 seconds / 8 VDC
Focus Current: Maximum 25 mA / 8 VDC
Coil Drive Coil: Resistor: 190 Ω, 68°F (20°C) / Color: Red & black
Brake Coil: Resistor: 1150 Ω, 68°F (20°C) / Color: Yellow & green
Drive Voltage: Less than 4 V (open), Over 0 V with closing spring (close)
Compatible With 1/2" color & B&W cameras
Focal Length 0.47 to 11.8" (12 to 300 mm)
Aperture Iris: 1.8 x 2.6 (W x T) maximum
Front: ø108 / Rear: ø14.5
Iris Range 1.8 to 1000
Image Size ø8 (6.4 x 4.8)
Back Focal Length 0.62" (15.84 mm) in air
Flange Focal Length 0.68" (17.52 mm) in air
Focus Range 82.02' to infinity (25 m to infinity)
Angle of View Diagonal: 36.5 x 1.54°
Horizontal: 29.4 x 1.24°
Vertical: 22.2 x 0.93°
Distortion -0.47 to 0.28%
Exit Pupil Position 1.5E + 05 mm (format)
Operating Temperature 50 to 122°F (-10 to 50°C)
Dimensions 4.80 x 4.80 x 10.15" (122 x 122 x 258 mm)
Weight 88.1 oz (2,500 g)
Packaging Info
Package Weight 4.0 lb
The user manual for the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kowa users keep a unique electronic library for Kowa lensess, where you can use our link to download the user manual for the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC.

The user manual lists all of the functions of the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC, all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kowa service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kowa LMZ123AMDC 1/2" f/1.8 C-MT Motor DC Auto LMZ123AMDC. User manuals are also available on the Kowa website under Surveillance - Surveillance Video - Lenses - Lenses.
