User manual for Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR
- Manufacturer: Motorola
- Basic description and contents of package
- Product classification: Photography - Scanners - Barcode Scanners
- Safety instructions
- Startup and operation of the barcode scanners
- Tips for setting up your Motorola
- Settings and expert assistance
- Contact Motorola service
- Troubleshooting
- Warranty information
- Price: 178 USD
|
We recommend checking out our discussion threads on the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR,
which address similar problems with connecting and setting up Barcode Scanners Motorola.
|
User manual for the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR
The user manual for the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR provides
necessary instructions for the proper use of the product Photography - Scanners - Barcode Scanners.

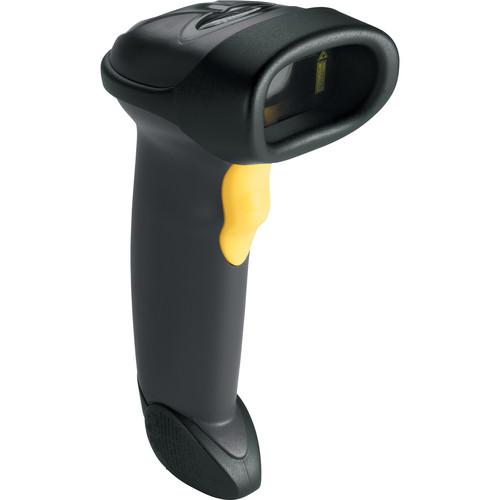

The black Symbol LS2208 Bar Code Reader with IBM 468x/9x Port 9B Cable and Stand from Motorola is a small, lightweight and affordable scanner designed to increase productivity from the checkout line to the back room. The LS2208's single circuit board design eliminates common points of failure. Its ability to withstand multiple 5' (1.5 m) drops to concrete provides the durability and reliability needed to withstand all day, every day heavy usage. Multiple onboard interfaces enable connectivity to virtually any host, providing future proofing and investment protection.
|
If you own a Motorola barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR:
| Scanner Type | Bi-directional | | Scan Sensor | 650 nm visible laser diode | | Frequency | 50 Hz | | Scan Rate | 100 scans/second (typical) | | Working Distance | 100% UPC (13 mil): 0.0 to 17.0" (0.0 to 43.18 cm)
Code 39 (5.0 mil): 2.5 to 6.0" (6.35 to 15.24 cm)
Code 39 (7.5 mil): 1.5 to 10.0" (3.81 to 25.4 cm)
Code 39 (10 mil): 1.0 to 14.25" (2.54 to 36.2 cm)
Code 39 (20 mil): 0.0 to 23.0" (0.0 to 58.42 cm)
Code 39 (40 mil): 0.0 to 30.0" (0.0 to 76.2 cm) | | Print Contrast | 20% minimum reflective difference | | Tilt | 1.0 ± 30° | | Pitch | 2.0 ± 65° | | Skew | 3.0 ± 60° | | Bar-Code Types | UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 | | Interfaces Supported | Keyboard Wedge
USB
RS232
Wand
IBM 468X/9X
Synapse
Undecoded | | Ambient Light Immunity | Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight | | Drop Resistance | Up to 5.0' (1.5 m) on concrete | | Power Source | Host power or external power supply | | Power Requirements | 5 V ±10%, 130 to 175 mA | | Electrostatic Discharge | Conforms to 15 kV air discharge and 8.0 kV of contact discharge | | Certifications | Electrical: UL1950, CSA C22.2 No. 950, EN60950/IEC950
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori
Laser Safety: CDRH Class II, IEC Class 2
Environmental: Compliant with RoHS directive 2002/95/EEC | | Temperature / Humidity | Operating Temperature: 32 to 122 °F (0 to 50 °C)
Storage Temperature: -40 to 158 °F (-40 to 70 °C)
Humidity: 5 to 95% | | Dimensions (WxDxH) | 2.5 x 3.34 x 6.0" (6.3 x 8.4 x 15.24 cm) | | Weight | 5.15 oz (146 g) | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.2 x 8.5 x 6.7" | |
The user manual for the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR can be downloaded in .pdf
format if it did not come with your new barcode scanners, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Motorola users keep a unique electronic library
for Motorola barcode scannerss,
where you can use our link to download the user manual for the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR.
The user manual lists all of the functions of the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR,
all the basic and advanced features and tells you how to use the barcode scanners.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Motorola service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR. User manuals are also
available on the Motorola website under Photography - Scanners - Barcode Scanners.
Question and answer discussion forum concerning user instructions and resolving problems with the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR - no comments have been made yet - be the first to add a comment
Post new comment/question/response regarding the Motorola Symbol LS2208 Bar Code Reader LS2208-7AZM0100SR
|
|
|
|
|
