User manual MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING

Operating instructions and pdf manual for use - MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING User manual, User manual MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING, MSI, 970, GAMING, Desktop, Motherboard, with, Two, PCl

User manual for MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

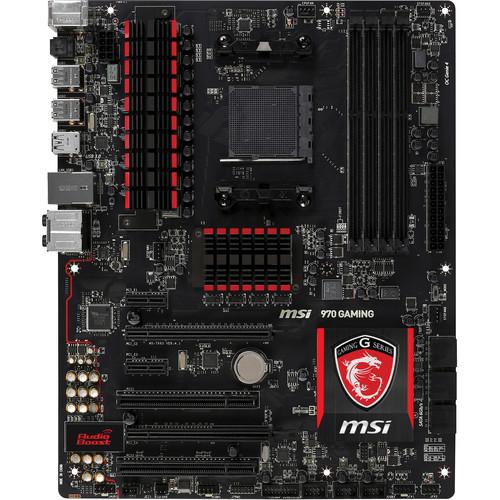

MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING
  • Manufacturer: MSI
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Motherboards
  • Safety instructions
  • Startup and operation of the motherboards
  • Tips for setting up your MSI
  • Settings and expert assistance
  • Contact MSI service
  • Troubleshooting
  • Warranty information
  • Price: 100 USD
We recommend checking out our discussion threads on the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING, which address similar problems with connecting and setting up Motherboards MSI.


User manual for the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING

The user manual for the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

The 970 GAMING Desktop Motherboard from MSI supports AMD FX/Phenom II/Athlon II/Sempron processors in an AM3+ socket. The motherboard supports DDR3-2133 (OC) memory. It provides high frag and low lag with Killer E2200 Game Networking. The motherboard features two rear USB 3.0 ports. The motherboard is also optimized for multiple graphics cards. The Super Ferrite Choke and Dark CAP ensure that your PC runs stably under extreme gaming conditions.
If you own a MSI motherboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING:
Specifications
    CPU Supports AMD FXTM/Phenom II/Athlon II and Sempron processors for the AM3/AM3+ socket
    FSB/Hyper Transport Bus HyperTransport 3.0 supporting speed up to 4.8 GT/s
    Chipset AMD 970 and SB950 chipset
    Main Memory 4 x DDR3 memory slots supporting up to 32 GB
    Supports DDR3 1066/1333/1600/1866/2133*(*OC)
    Dual channel memory architecture
    Slots 2 x PCIe 2.0 x16 slots
    PCI_E2 supports up to PCIe 2.0 x16 speed
    PCI_E4 supports up to PCIe 2.0 x8 speed
    2 x PCIe 2.0 x1 slots
    2 x PCI slots
    Multi-GPU Support Supports 2-way AMD CrossFire technology
    Supports 2-way NVIDIA SLI technology

    Supports Windows 7/8/ 8.1
    On-Board SATA AMD SB950 chipset
    6 x SATA 6 Gb/s ports

    Supports RAID 0, RAID1, RAID5, and RAID 10.
    USB AMD SB950 Chipset:
    14 x USB 2.0 ports (8 x ports on the back panel, 6 x ports available through the internal USB 2.0 connectors)

    VIA VL806 Chipset:
    4 x USB 3.0 ports (2 x ports on the back panel, 2 x ports available through the internal USB 3.0 connector)

    These USB 3.0 ports do not support M-Flash recovery function.
    Audio Realtek ALC1150 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    LAN Killer E2205 Gigabit LAN controller (Killer Network Manager is only available for Windows 7/8/8.1)
    1 x LAN port on the back-panel
    Internal I/O Connectors 1 x 24-pin ATX main power
    1 x 8-pin ATX 12 V power
    6 x SATA 6 Gb/s
    3 x USB 2.0 (supports additional 6 x USB 2.0 port)
    1 x USB 3.0
    1 x 4-pin CPU fan
    2 x 4-pin system fan
    2 x 3-pin system fan
    1 x Front panel audio
    2 x System panel
    1 x Chassis Intrusion
    1 x TPM module
    1 x Serial port
    1 x S/PDIF-Out
    1 x Clear CMOS jumper
    1 x Slow mode booting switch
    Back Panel I/O Ports 1 x PS/2 keyboard/mouse combo port
    8 x USB 2.0 port
    2 x USB 3.0 port
    1 x Optical S/PDIF-out
    1 x LAN (RJ-45) port
    6 x OFC audio jacks
    BIOS The motherboard BIOS provides plug-and-play BIOS, which detects the peripheral devices and expansion cards of the board automatically
    The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications
    Mounting 9 x Mounting holes
    Form Factor ATX
    Dimensions 12.0 x 9.6" (30.5 x 24.4 cm)
    Packaging Info
    Package Weight 3.4 lb
    Box Dimensions (LxWxH) 13.7 x 10.8 x 2.5"
    The user manual for the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING can be downloaded in .pdf format if it did not come with your new motherboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MSI users keep a unique electronic library for MSI motherboardss, where you can use our link to download the user manual for the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING.

    The user manual lists all of the functions of the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING, all the basic and advanced features and tells you how to use the motherboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MSI service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MSI 970 GAMING Desktop Motherboard with Two PCle 970 GAMING. User manuals are also available on the MSI website under Computers & Solutions - Computer Components - Motherboards.
