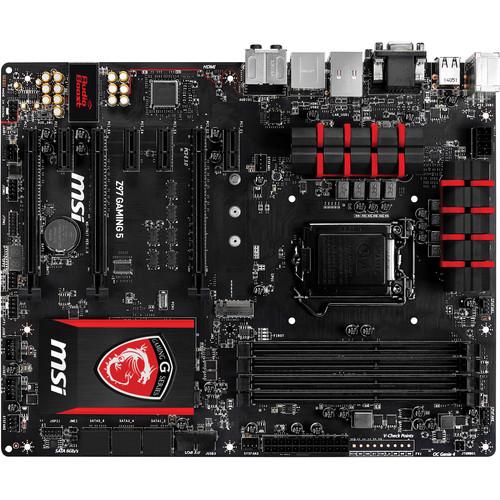

The Z97 GAMING 5 ATX Gaming Motherboard from MSI supports 4th and 5th generation Intel Core processors, and Intel Pentium and Celeron processors for Socket LGA1150. It is equipped with four DIMM slots and supports DDR3 3300 MHz (O.C.) and supports Intel Extreme Memory Profile (XMP). The motherboard is equipped with three PCIe 3.0 (support x16, x8/x8, x8/x4/x4 modes) and four PCIe 2.0 x1 slots. The motherboard is optimized for multiple graphics cards.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI Z97 GAMING 5 ATX Gaming Motherboard Z97-GAMING 5 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI Z97 GAMING 5 ATX Gaming Motherboard Z97-GAMING 5:
CPU
Supports 4th and 5th Generation Intel Core processors, and Intel Pentium and Celeron processors for Socket LGA1150
Chipset
Intel Z97 Express chipset
Memory
Dual channel memory architecture Support DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*/3100*/3200*/3300* (*OC) MHz DRAM 4 x DIMM slots Maximum Capacity: 32 GB Supports Intel Extreme Memory Profile (XMP) Supports non-ECC, un-buffered memory
Expansion Slots
3 x PCIe 3.0 x16 slots, (support x16, x8/x8, x8/x4/x4 modes) 4 x PCIe 2.0 x1 slots
Onboard SATA
6 x SATA 6 Gb/s ports (SATA 1~6) 1 x M.2 port* M.2 port supports M.2 SATA 6Gb/s module M.2 port supports M.2 PCIe module up to 10Gb/s speed** M.2 port supports 4.2cm/ 6cm/ 8cm length module Supports RAID 0, RAID1, RAID 5 and RAID 10# Supports Intel Smart Response Technology, Intel Rapid Start Technology, and Intel Smart Connect Technology##
*SATA5/6 will be unavailable when installing a module in M.2.**M.2 PCIe supports UEFI ROM, not support legacy ROM.# M.2 PCIe doesn't support RAID.##Supports Intel Core processors on Windows 7/8/ 8.1.
* The Killer Network Manager is only available for Windows 7 and Windows 8/8.1 currently. The supported drivers for other OS would be available on the website if provided by vendor.
1 x 24-Pin ATX main power connector 1 x 8-Pin ATX 12V power connector 6 x SATA 6 Gb/s connectors 1 x M.2 port 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports) 2 x 4-Pin CPU fan connectors 3 x 4-Pin system fan connectors 1 x TPM module connector 1 x Serial port connector 1 x Front panel audio connector 1 x Direct audio power connector 2 x System panel connectors 1 x Chassis intrusion connector 1 x Clear CMOS jumper 1 x Audio power switch 1 x 2-Digit Debug Code LED
Back Panel I/O Ports
1 x PS/2 keyboard/mouse combo port 1 x LAN (RJ-45) port 4 x USB 2.0 ports 4 x USB 3.0 ports 1 x VGA connector 1 x DVI-D connector 6 x OFC audio jacks 1 x HDMI port, supporting a maximum resolution of 4096 x 2304 at 24 Hz/2560 x 1600 at 60 Hz/ 3840 x 2160 at 60 Hz/1920 x 1200 at 60 Hz
Dual Display support
Extend Mode: Extend the desktop to the second and third monitor Clone Mode: Monitors have the same screen VGA+DVI-D, DVI-D+HDMI, HDMI+VGA, HDMI+VGA+DVI-D
