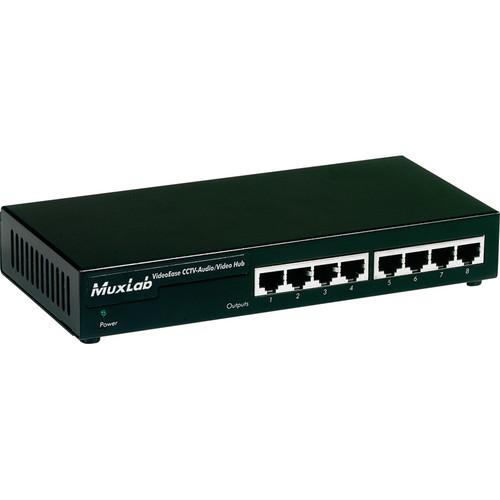

The MuxLab VideoEase Audio-Video Hub (110V) allows you to distribute up to 2 composite or 1 S-Video signal and up to 2 line level analog audio signals to up to 8 destinations via Cat5/6 UTP cable.

When used in pairs, the audio-video hub supports transmission of color signals up to 2200’ (670m) and b&w signals up to 2500’ (762m) via Cat 5/6 cable. It can be cascaded up to 2 levels to support up to 72 displays and can work in conjunction with other MuxLab baluns that support composite video, S-Video, and analog audio.

Supporting composite video, S-Video, and line level analog audio, the hub can be used in boardroom systems, classroom training, and digital signage. It allows you to connect composite video and analog audio equipment such as DVD, cable boxes, PC video servers, matrix switchers, monitors, projectors, plasmas, and LCD displays.

The VideoEase Audio-Video Hub is compatible with 500000, 500001, 500009, 500012, 500016, 500017, 500019, 500021, 500027, 500027, 500038, and 500039 baluns.
If you own a MuxLab video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MuxLab VideoEase Audio-Video Hub (110V) 500200 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MuxLab VideoEase Audio-Video Hub (110V) 500200:
Environment Composite video (NTSC, PAL), S-Video, line level analog audio
Devices DVD, cable boxes, PC video servers, matrix switchers, monitors, projectors, plasmas, LCD displays and other composite video and analog audio equipment
Transmission Transparent to the user
Impedance Source Impedance Requirements
Video Out: 75 ohms
Audio Out: 600 ohms max.

Destination Impedance Requirements
Video In: 75 ohms
Audio In: 600 ohms min.

Hub Impedance
Video In: 100 ohm balanced
Audio In: 10 kohms min. balanced
Video Out: 100 ohms balanced
Audio Out: 600 ohm balanced
Bandwidth 3 dB Bandwidth
Video: DC to 8 MHz
Audio: 50 Hz to 16 kHz
Differential Max. Differential Input
Video: 0.55 Vp-p
Audio: .50 Vp-p

Max. Differential Output
Video: 0.55 Vp-p
Audio: .50 Vp-p
Insertion Loss Video: 0 dB max. @ 4 MHz
Audio: 1 dB max. @ 1 kHz
(differential)
Return Loss Video Return Loss: 24 dB minimum
Common Mode Rejection (Input: balanced. Output: unbalanced)
Video: Greater than 40 dB over the frequency range
Audio: Greater than 60 dB over the frequency range

Measured between source (i.e. DVD) and destination (i.e. monitor) with hub placed anywhere between the source and destination
Crosstalk Crosstalk Immunity: 60 dB minimum over the frequency range
Maximum Distance (via Cat 5/6 Twisted Pair - UTP)
Composite Video Color: 2200' (670m)
Composite Video B&W: 2500' (762m)
S-Video: 1000' (305m)
Cable UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz, Cat 3 or better
Connectors Source Input: 1 RJ45 on rear panel
Cascade Output: 1 RJ45 on rear panel
Distribution Outputs: 8 RJ45 on front panel
Pins Video 1: Ring 7 Tip 8
Audio 1: Ring 1 Tip 2
Video 2: Ring 4 Tip 5
Audio 2: Ring 3 Tip 6
Compatibility Compatible Baluns: 500000, 500001, 500009, 500012, 500016, 500017, 500019, 500021, 500027, 500027, 500038, 500039
Diagnostics Power LED - green
Power Supply External AC: 110V and 220/240V DC: +/- 12VDC, 5W total max.
Power Connector 5-pin DIN; pin 1 GND, pin 2 GND, pin 4 -12V, pin 5 +12V
Temperature Operating: 32 ~ 131°F (0 ~ 55°C)
Storage: -4 ~ 185°F (-20 ~ 85°C)
Humidity: up to 95%
Dimensions 8.5 x 4 x 1.3" (21.6 x 10.2 x 3.3cm)
Weight 2.1 lbs (1kg)
Compliance FCC, CE-EMC Directive 89/336/EEC
Packaging Info
Package Weight 3.2 lb
Box Dimensions (LxWxH) 12.4 x 9.4 x 3.4"
The user manual for the MuxLab VideoEase Audio-Video Hub (110V) 500200 can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MuxLab users keep a unique electronic library for MuxLab video extenders & repeaterss, where you can use our link to download the user manual for the MuxLab VideoEase Audio-Video Hub (110V) 500200.

The user manual lists all of the functions of the MuxLab VideoEase Audio-Video Hub (110V) 500200, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MuxLab service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MuxLab VideoEase Audio-Video Hub (110V) 500200. User manuals are also available on the MuxLab website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
