User manual for the Neumann M147 Tube Microphone M 147 TUBE
The user manual for the Neumann M147 Tube Microphone M 147 TUBE provides
necessary instructions for the proper use of the product Pro Audio - Recording - Tube.

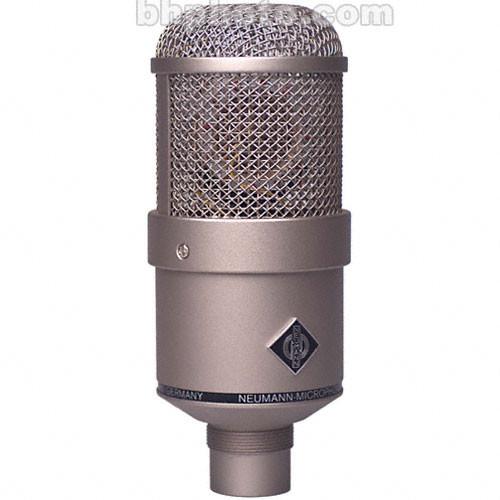

The M 147 Tube Microphone from Neumann is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern. The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones. Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.
|
If you own a Neumann tube and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Neumann M147 Tube Microphone M 147 TUBE in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Neumann M147 Tube Microphone M 147 TUBE:
| Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 70 dB CCIR
82 dB A-Weighted | | Equivalent Noise Level | 24 dB CCIR
12 dB A-Weighted | | Maximum SPL | 114 dB SPL 0.5%
134 dB SPL 5% | | Impedance | 50 ohms | | Load Impedance | 1 kOhms | | Sensitivity | 20 mV/PA @ 1 kHz into 1 kOhms, re: 1 V/Pa | | Output Connectors | 3-Pin XLR | | Length | 5.59" (142 mm) | | Diameter | 2.24" (57 mm) | | Weight | 16.23 oz (460 g) | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 16.0 x 14.1 x 6.0" | |
The user manual for the Neumann M147 Tube Microphone M 147 TUBE can be downloaded in .pdf
format if it did not come with your new tube, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Neumann users keep a unique electronic library
for Neumann tubes,
where you can use our link to download the user manual for the Neumann M147 Tube Microphone M 147 TUBE.
The user manual lists all of the functions of the Neumann M147 Tube Microphone M 147 TUBE,
all the basic and advanced features and tells you how to use the tube.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Neumann service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Neumann M147 Tube Microphone M 147 TUBE. User manuals are also
available on the Neumann website under Pro Audio - Recording - Tube.
