User manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm and 27667
The user manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm and 27667 provides
necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.
The black Nikon 1 AW1 Mirrorless Digital Camera is a compact mirrorless camera designed specifically for use in some of the harshest conditions and for underwater shooting. Its rugged, weather-sealed construction is waterproof to 49.2' and shockproof to withstand falls from up to 6.6'. Other key elements incorporated within the body further enhance its use in trying conditions, including sealed and lockable compartment covers, underwater-specific color compensation settings, a wide range of environmental sensing functions, and a dedicated Action control button for intuitive motion-based selection of certain camera settings.
In regard to imaging, the 1 AW1 features a CX-format 14.2MP CMOS sensor and EXPEED 3A image processor to produce high resolution still imagery and full HD video recording with tremendous speed and notable low-light sensitivity to support working with in a wide array of shooting scenarios. Full-resolution continuous shooting with full-time AF is supported up to 15 fps, or, when the focus is locked after the first frame, an incredibly quick 60 fps shooting rate can be achieved. An advanced hybrid AF system employs both contrast- and phase-detection focusing methods in order to acquire focus both quickly and accurately and will automatically switch between to the two focusing types depending on the detected scene type.
Enhancing the imaging capabilities are a set of shooting modes designed to isolate key frames in an automatic and intuitive way through the use of successive shooting and intelligent detection to determine the best frame within a series. In-camera panoramic and HDR imagery is possible as well as multi-medium imagery via the unique Motion Snapshot mode, which integrates slow motion video along with a single still frame.

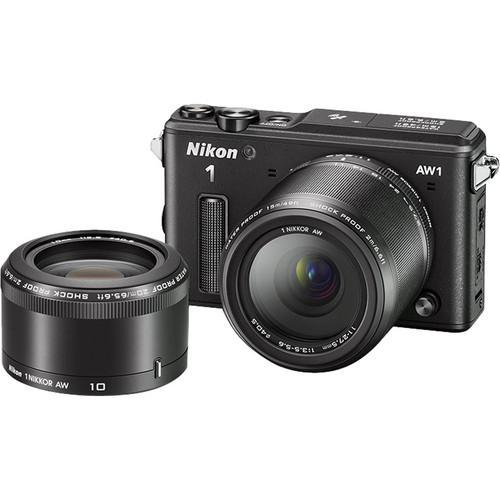

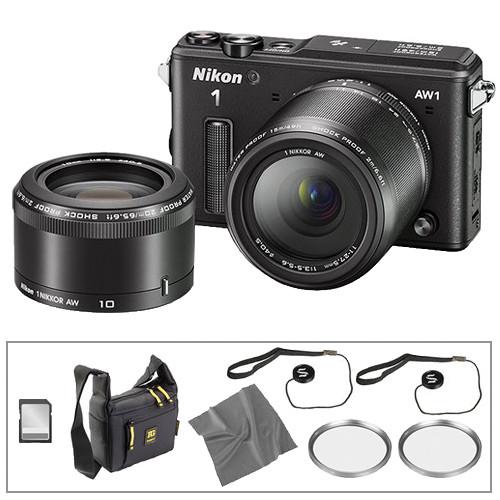

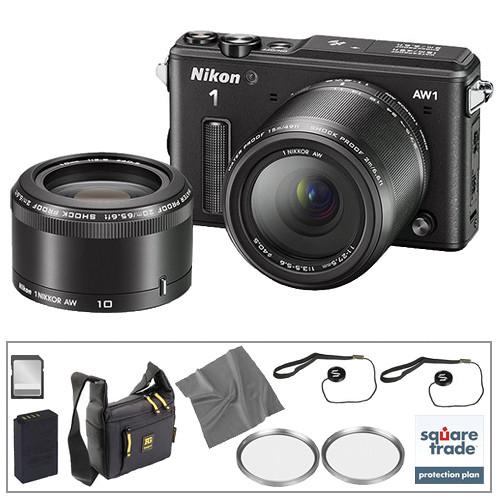

Included with the camera body are the black 1 NIKKOR AW 11-27.5mm f/3.5-5.6 lens, which provides a 35mm-equivalent field of view of 30-74mm, and the black 1 NIKKOR AW 10mm f/2.8 lens, which provides a 35mm-equivalent field of view of 27mm. Together, these lenses cover wide-angle to portrait-length perspectives to support working in a wide array of shooting conditions. Both lenses feature the same robust build quality as the camera body and both integrate aspherical elements and protective glass elements to minimize various aberrations throughout the zoom range and maintain a sense of security when using either lens in inclement conditions.
|
If you own a Nikon mirrorless system cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm and 27667 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm and 27667:
| Lens Mount | Nikon Waterproof 1 | | Camera Format | Nikon CX (2.7x Crop Factor) | | Pixels | Actual: 15.13 Megapixel
Effective: 14.2 Megapixel | | Max Resolution | 4608 x 3072 | | Sensor Type / Size | CMOS, 13.2 x 8.8 mm | | File Formats | Still Images: JPEG, RAW
Movies: MOV, MPEG-4 AVC/H.264
Audio: AAC | | Bit Depth | 12-bit | | Dust Reduction System | Yes | | Memory Card Type | SD
SDHC
SDXC | | Video Recording | Yes | | Resolution | 1920 x 1080: 60 fps, 30 fps
1280 x 720: 60 fps, 30 fps
640 x 240: 400 fps
320 x 120: 1200 fps | | Aspect Ratio | 8:3, 16:9 | | Audio Recording | With Video, Stereo | | Focus Type | Auto & Manual | | Focus Mode | Continuous-servo AF (C), Full-time Servo (F), Manual Focus (M), Single-servo AF (S) | | Autofocus Points | Contrast Detection:135
Phase Detection:73 | | Display Screen | 3" Rear Screen LCD (921,000) | | ISO Sensitivity | Auto, 100-6400 | | Shutter | Type: Electronic
Speed: 30 - 1/16000 second
Type: Electronic
Speed: 120 - 1/16000 second in Bulb Mode | | Metering Method | Center-weighted average metering, Matrix, Spot metering | | Exposure Modes | Modes: Aperture Priority, Manual, Programmed Auto, Scene Auto Selector, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV steps) | | White Balance Modes | Auto, Cloudy, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade, Underwater | | Continuous Shooting | Up to 60 fps at 14.2 MP for up to 20 frames
Up to 30 fps at 14.2 MP frames
Up to 15 fps at 14.2 MP for up to 22 frames
Up to 5 fps at 14.2 MP frames | | Flash Modes | Fill-flash/Slow Sync
Fill-in
Off
Rear Curtain/Slow Sync
Rear Sync
Red-eye Reduction
Slow Sync/Red-eye Reduction | | Built-in Flash | Yes | | Guide No. | 16.4' (5 m) ISO100 | | Max Sync Speed | Electronic Shutter: 1 / 60 seconds | | Flash Compensation | -1 EV to +3 EV (in 1/3 EV steps) | | Dedicated Flash System | iTTL | | Self Timer | 2 seconds, 5 seconds, 10 seconds | | Connectivity | 1x USB 2.0
1x HDMI C (Mini) | | Wi-Fi Capable | Yes (with Optional Transmitter) | | Battery | 1x EN-EL20 Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1020 mAh | | AC Power Adapter | EH-5b (Optional) | | Operating/Storage Temperature | Operating
14 to 104°F (-10 to 40°C)
Humidity: 0 - 85% | | Dimensions (WxHxD) | 4.5 x 2.8 x 1.5" / 113.3 x 71.5 x 37.5 mm excluding projections | | Weight | 12.56 oz / 356 g Body only with battery and memory card | | Focal Length | 11 - 27.5mm
Comparable 35mm Focal Length: 30 - 74 mm | | Aperture | Maximum: f/3.5 - 5.6
Minimum: f/16 | | Angle of View | 72° - 32° 20' | | Minimum Focus Distance | 11.81" (30 cm) | | Elements/Groups | 8/6 | | Diaphragm Blades | 7 | | Autofocus | Yes | | Filter Thread | Front: 40.5 mm | | Dimensions (DxL) | Approx. 2.48 x 2.22" (63 x 56.5 mm) | | Weight | 6.42 oz (182 g) | | Focal Length | 10 mm
Comparable 35mm Focal Length: 27 mm | | Aperture | Maximum: f/2.8
Minimum: f/11 | | Viewing Angle | 77° | | Minimum Focus Distance | 7.87" (20 cm) | | Elements/Groups | 6/5 | | Diaphragm Blades | 7 | | Autofocus | Yes | | Filter Thread | Front: 40.5 mm | | Dimensions (DxL) | Approx. 2.40 x 1.18" (61 x 30 mm) | | Weight | 4.16 oz (118 g) | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 8.7 x 5.8 x 3.3" | |
