User manual for the Panasonic AG-AC90A AVCCAM Handheld Camcorder AG-AC90APJ
The user manual for the Panasonic AG-AC90A AVCCAM Handheld Camcorder AG-AC90APJ provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

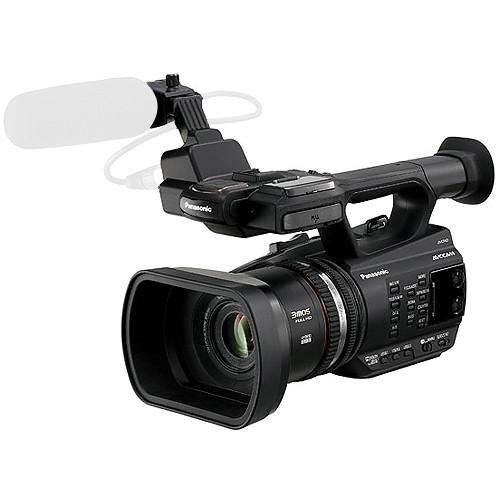

The Panasonic AG-AC90A AVCCAM Handheld Camcorder features three 1/4.7" sized MOS sensors (3MOS), with 2.19MP each, to capture Full HD 1920x1080 resolution video at up to 60p. It is an update to the AG-AC90A, offering additional 720p60 and 480i/60 3.5Mbps recording modes, as well as other enhancements such as the ability to copy content from one SD card to another in-camera. Features inherited from the AG-AC90 include the 12x zoom lens with a 35mm equivalent focal range of 29.8 to 357.6mm, Nano Surface Coating for reduced ghosting and lens flares, and three manual control rings for focus, zoom, and iris.
The AG-AC90A records Full HD 1920x1080 video in a variety of frame rates using the AVCHD codec, including 60p, 60i, 30p, and 24p. A 1280x720 60p mode is available for lower resolution files with smooth motion, ideal suited for sports recording and coaching applications. You can also record SD video, including a low 3.5Mbps bit-rate mode for easy uploading to cloud servers. Date and time stamps can be super-imposed over the video, a feature useful for law enforcement and legal depositions.
Two SD memory card slots are available for expanded memory or simultaneous recording to both cards for an instant back-up. The camcorder is compatible with SD, SDHC, and SDXC card up to 64GB, with support for ultra high-speed UHS-I speed class 1. It is also compatible with optional Eye-Fi SD cards for Wi-Fi transfer to your mobile device A five-axis image stabilizer improves stabilization for handheld shooting, and 4x pixel shifting technology helps to create a sharper image. An Intelligent 25x digital zoom function makes automatic adjustments of edge, gradation, and detail.
In addition to a built-in microphone, two XLR audio inputs provide an interface for professional grade, external microphones. Audio Channel 1 and Channel 2 feature individual level controls and input selection, including 48V phantom power supply on/off.
|
If you own a Panasonic camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic AG-AC90A AVCCAM Handheld Camcorder AG-AC90APJ in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Panasonic AG-AC90A AVCCAM Handheld Camcorder AG-AC90APJ:
| Sensor Type | 3x MOS (with backside illumination) | | Sensor Size | 1/4.7" | | Sensor Resolution | 2.19 MP (2,190,00 effective pixels) each | | Minimum Illumination | Approx. 3 lux (iA mode, auto slow shutter ON) | | Focal Length | 2.84 - 34.1 mm | | 35mm Equivalent Focal Length | 29.8 - 357.6 mm | | Zoom Ratio | 12x optical
25x i.Zoom
2x, 5x, 10x digital zoom | | Aperture | f/1.5 to f/2.8 | | Optical Image Stabilization | 5-Axis Hybrid OIS | | Lens Coating | Nano Surface Coating | | Control Rings | 3 (focus, zoom, iris) | | Filter Thread | 49 mm | | Image Stabilization | Optical (hybrid optical image stabilizer, active mode) | | Signal System | NTSC (60 Hz) | | Video Format | AVCHD version 2.0 compliant, AVCHD Progressive | | Compression | Video: MPEG-4 AVC/H.264
Audio: Dolby Digital (5.1ch/2 ch)
Still Picture: JPEG (based on Exif 2.2 standard) | | Recording Modes | PS Mode: 1920x1080 59.94p (25 Mbps average; 28 Mbps max)
PH Mode: 1920x1080 59.94i/29.97p/23.98p (21 Mbps average; 24 Mbps max)
HA Mode: 1920x1080 59.94i (17 Mbps average)
HE Mode: 1440x1080 59.94i (6 Mbps average)
PM Mode: 1280x720 59.94p (8 Mbps average)
SA Mode: 720x480 59.94i (9 Mbps average)
CS Mode: 720x480 59.94i (3.5 Mbps average) | | Maximum Recording Time | With two 64GB SDXC memory cards:
PS Mode: Approx. 10 hours 40 minutes
PH Mode: Approx. 12 hours
HA Mode: Approx. 16 hours
HE Mode: Approx. 48 hours
PM Mode: Approx. 38 hours
SA Mode: Approx. 33 hours
CS Mode: Approx. 82 hours | | Shutter Speed | 60i/60p/30p: 1/30 to 1/2000 (auto slow shutter ON), 1/60 to 1/2000 (auto slow shutter OFF)
Note: at motion picture recording, manual mode | | Audio Channels | CH1, CH2 | | Audio Format | Dolby Digital | | Still Capture | 3 MP still photographs (can be captured during video recording) | | Recording Media | 2 x SD/SDHC/SDXC (compatible with UHS-I Speed Class 1) | | Input/Outputs | 1 x HDMI output (1080p/1080i/480p)
1 x AV Multi output (D-connector, component video, composite video and audio 2 channel)
1 x USB 2.0
1 x 2.5mm remote terminal for zoom and REC START/STOP
1 x 3.5mm remote terminal for iris and focus
2 x XLR audio input (MIC/LINE/+48V selectable) | | LCD Monitor | 3.5" (8.8 cm) touchscreen
1,152 K dot resolution
270° rotation | | Viewfinder | 0.24" LCOS color EVF with 263 K dot resolution | | Supply Voltage | DC 12V (when the AC adaptor is used)
DC 7.2V (when the battery is used) | | Power Consumption | 12.9 W | | Operating Temperature | 32 to 104° F (0 ~ 40° C) | | Operating Humidity | 10 to 80% (no condensation) | | Dimensions (WxHxD) | Excluding protrusions: 6.30 x 7.68 x 13.78" (16.0 x 19.5 x 35.0 cm) | | Weight | Main Unit Only: Approx. 3.3 lb (1.50 kg)
With Battery and an SD Card: Approx. 3.9 lb (1.78 kg) | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 10.0" | |
