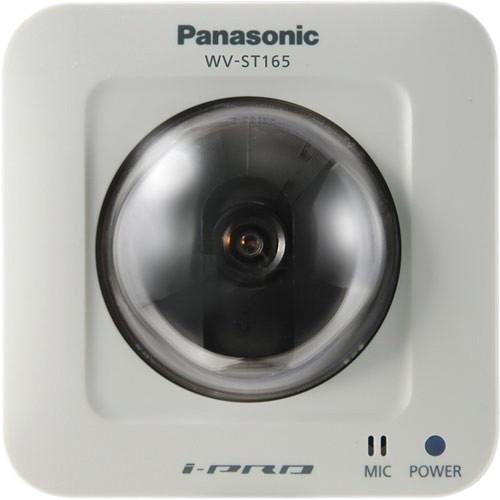

Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165, which address similar problems with connecting and setting up Wired IP Cameras Panasonic.


User manual for the Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165

The user manual for the Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera (NTSC) offers high-quality 24-hour video surveillance in both day and night time lighting conditions.

Designed for day/night surveillance, this network camera captures clear images at F/2.2 even in locations with a minimum illumination of 0.5 lux (B&W). The Adaptive Black Stretch technology increases visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. The face wide dynamic range technology offers blur-free images of the human face. The pan & tilt functionality and preset map shot function allow monitoring of wide area (Horizontal 180°, Vertical 123°). Furthermore, with the progressive scan technology, you can be sure to obtain blur-free images even when the object is in motion. In addition, the UniPhier LSI chip enables this network camera to simultaneously stream real-time imagery in HD resolution of 1280 x 960 at 30 fps. The electronic sensitivity enhancement function Auto (up to 16x) increases the quantity of light stored on the sensor, making the image brighter.

Equipped with Digital Noise Reduction technology, the camera filters signals that could result in grainy images. When any movement is detected, alarm sources, including VMD and Panasonic alarm command, trigger actions such as FTP image transfer and e-mail notification. The camera comes with SD/SDHC memory card slot that provides easy way for data backup upon any network failure. As the WV-ST165 camera is Power over Ethernet (PoE) compatible, it can be installed almost anywhere without the need for an additional power supply.
If you own a Panasonic wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165:
Specifications
    Camera
    Image Sensor 1/4 type MOS sensor
    Effective Pixels Approximately 1.3 megapixels
    Scanning Mode Progressive scan
    Scanning Area H x V: 3.52 x 2.64 mm
    Minimum Illumination Color: 0.6 lux, B&W: 0.5 lux at F2.2 (Shutter: 1/30 s, AGC: High)
    Color: 0.038 lux, B&W: 0.031 lux at F2.2 (Shutter: 16/30 s, AGC: High)
    White Balance AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
    Light Control Mode Indoor scene (50 / 60 Hz) / ELC
    Shutter Speed ELC 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s
    Wide Dynamic Range On / Off
    Face Wide Dynamic Range On / Off
    Adaptive Black Stretch On / Off
    Automatic Gain Control On (Low, Mid, High ) / Off
    Electronic Sensitivity UP Off / Auto (2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s) Maximum
    Simple Day/Night Mode Auto / Off
    Dynamic Range 24 dB typical (WDR: On, Light Control: ELC)
    Digital Noise Reduction (DNR) High / Low
    Video Motion Detection On / Off, 4 areas available
    Privacy Zone Up to 2 zones, gray
    Camera Title (OSD) Up to 20 alphanumeric characters, On / Off
    Lens
    Focal Length 1.95 mm
    Zoom Ratio Extra zoom: 2x (at VGA resolution)
    Angular Field of View Horizontal: 85°, Vertical: 68°
    Maximum Aperture Ratio 1 : 2.2
    Focusing Range 0.5 m to ∞
    Pan/Tilt
    Panning Range -47.5 to +47.5°
    Pan/Tilt Speed Manual: Approximately 5 to 80°/s, Preset: Up to approximately 80°/s
    Tilting Range -45 to +10°
    Preset Positions 64
    PTZ Position Display On / Off
    Self Return 10 / 20 / 30 s / 1 / 2 / 3 / 5 / 10 / 20 / 30 / 60 min
    Map Shot Preset map-shot
    Browser GUI
    Camera Control Brightness, Aux On / Off
    Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or 16 split screen (JPEG only)
    Zoom extra zoom(1 to 2x) and the electronic zoom (higher zoom factors, up to 16x)
    Camera Title Up to 20 alphanumeric characters
    Clock Display Time: 12 / 24H, Date: 5 formats on the browser, Daylight Savings Time (Manual)
    Alarm Control Reset
    One Shot Capture A still picture will be displayed on a newly opened window
    Audio Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High
    Audio Output: ON / OFF Volume adjustment: Low / Middle / High
    SD Memory Data Download Still or motion images recorded on the SDHC/SD memory card can be downloaded
    GUI/Setup Menu Language English, Japanese, Italian, French, German, Spanish, Chinese, Russian
    System Log Up to 100 (Internal)
    Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG) error logs
    Supported OS Microsoft Windows 7
    Microsoft Windows Vista
    Microsoft Windows XP SP3
    Supported Web Browsers Windows Internet Explorer 9.0 (32 bit)
    Windows Internet Explorer 8.0 (32 bit)
    Windows Internet Explorer 7.0 (32 bit)
    Microsoft Internet Explorer 6.0 SP3
    Network
    Network IF 10Base-T / 100Base-TX, RJ-45 connector (female)
    Aspect Ratio 4:3
    H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
    JPEG: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps

    16:9
    H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
    JPEG: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
    Transmission mode Constant bitrate / Best effort
    Frame Rate H.264 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
    Bit Rate/Client 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 kbps
    Image Quality Low / Normal / Fine
    Refresh Interval H.264: 1 to 30 fps
    Transmission Types Unicast / Multicast
    Image Quality JPEG : 10 steps
    Refresh Interval JPEG : 0.1 to 30 fps
    Transmission Types JPEG : Pull / Push
    Audio Compression G.726 (ADPCM) 32 / 16 kbps, G.711 64 kbps
    Audio Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
    Authentication for Audio Level 1 only / Level 2 higher / All users
    Total Bit Rate 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
    Supported Protocols IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, ICMPv6
    IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP,SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
    FTP Client Alarm image transmission, FTP periodic transmission
    Maximum Concurrent Access Number Up to 14 users

    Depends on network conditions
    Memory Card Manufactured by Panasonic
    SDHC memory card: 4 , 8 , 16 , 32 GB
    SD memory card: 256 , 512 MB , 1 , 2 GB

    except miniSD card and microSD card
    Cellular Phone Compatibility JPEG image, panning/tilting/zoom control, AUX control (by access level)
    Mobile Terminal Compatibility iPad, iPhone, iPod touch (iOS 4.2.1 or later)
    Face Detection On / Off
    Alarm
    Alarm Source VMD, Command alarm
    Alarm Actions SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
    Alarm Log With SDHC/SD memory card: 5,000 logs, without SDHC/SD memory card: 1,000 logs
    Schedule VMD
    Input/Output
    Monitor Output VBS: 1.0 V (p-p)/75 Ω, NTSC composite, ø3.5 mm mini jack
    Microphone/Line Input ø3.5 mm monaural mini jack, Input impedance: Approx. 2.2 kΩ
    For microphone input: Applicable microphone: Plug-in power type, Supply voltage: 3.3 ±0.5 V
    For line input: Input level: Approximately -10 dBV
    Audio Compression ø3.5 mm stereo mini jack (monaural output),Output impedance: Approximately 560 Ω, Line level
    External I/O Terminals Alarm In 1 / Alarm In 2 / Alarm Out, Alarm In 3 / Aux Out, GND. 12 VDC
    General
    Safety/EMC Standard UL (UL60950-1), FCC (Part15 Class A), C-UL (CAN/CSA C22.2 No.60950-1), DOC (ICES003 Class A)
    Power Source and Consumption PoE (IEEE802.3af compliant), 12 VDC
    PoE: 130 mA (Class 2 device), 12 VDC: 430 mA

    For UL listed model(s), only connect 12 VDC class 2 power supply
    Ambient Operating Temperature 32 to 104°F (0 to +40°C)
    Ambient Operating Humidity 90 % or less (without condensation)
    Dimensions (W x H x D) 3.94 x 3.94 x 2.92" (100 x 100 x 74 mm)

    excluding projection
    Weight 0.76 lb (345 g)
    Packaging Info
    Package Weight 1.85 lb
    Box Dimensions (LxWxH) 10.3 x 6.3 x 5.9"
    The user manual for the Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic wired ip camerass, where you can use our link to download the user manual for the Panasonic WV-ST165 H.264 Pan-Tilt HD Network Camera WV-ST165.
