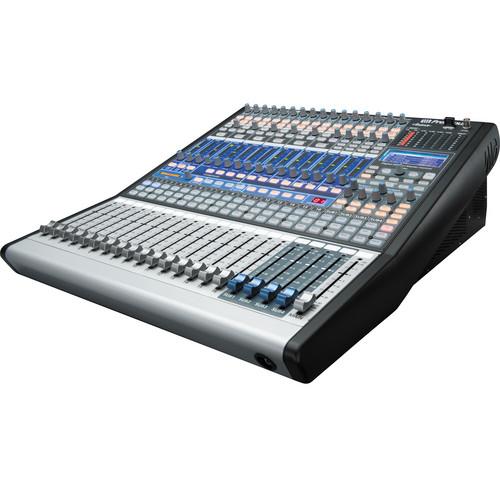

The PreSonus StudioLive 16.4.2AI Digital Recording Console with Active Integration is designed for live sound reinforcement, live recording, and studio recording applications. The mixer is an integrated hardware and software system with dual digital Fat signal processing on every channel, recallable scene presets, virtual sound check, remote control using a PC, Mac, or iPad, remote monitor mixing using an iPhone or iPod Touch, and all the software you need for live mixing, recording, and finishing a track.
The unit features 16 input channels with +48V phantom powered XLR XMAX microphone preamplifiers and bypass-able balanced 1/4" TRS line level inputs, a 32-In/18-Out FireWire s800 recording and playback interface with two FireWire ports, 10 auxiliary buses, 4 subgroups, a talkback button, and extensive LED metering. For outputs the mixer includes a balanced XLR mono output, a left and right pair of balanced stereo XLR main outputs, a left and right pair of balanced 1/4" TRS control room outputs, a left and right stereo pair of RCA connectors for tape output, an SPDIF out, and three balanced 25-pin D-sub pre-insert direct outputs.
For effects, the mixer features 32-bit floating point processing with 4-band semi-parametric EQs, eight 31-band graphic EQs, high pass filters, limiters, compressors, expander/gates with key listen and key filter, reverbs, and delays.
For mixing, each channel features a 100mm long-throw fader, military-grade quick touch buttons for toggling effects, and rotary encoders for controlling functions such as the attack, ratio, and release of the compressor, the panning position of a channel, and the frequency setting of the equalizers or filters.
The mixer comes with Active Integration Virtual StudioLive advanced librarian/editor control software for PC or Mac: the StudioLive remote control application for Apple iPad (free from Apple App Store), the QMix remote auxiliary mix application for iPhone or iPod Touch (free from Apple App Store), Capture integrated multi-track-recording software, and Studio One digital audio workstation including 6GB of loops, plug-ins, and virtual instrument sounds. Two 16.4.2AI mixers can be daisy chained together via FireWire to effectively double the capabilities of your mixing platform.
|
If you own a PreSonus digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the PreSonus StudioLive 16.4.2AI Digital STUDIOLIVE 16.4.2 AI in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the PreSonus StudioLive 16.4.2AI Digital STUDIOLIVE 16.4.2 AI:
| Number of Channels | 16 | | Type | Balanced XLR female | | Frequency Response | To Direct Output: 20 to 40,000 Hz at ± 0.5 dBu
To Main Output: 20 to 20,000 Hz at ± 0.5 dBu | | Input Impedance | 1 kΩ | | THD | To Direct Output: <0.007%, +4 dBu, 20 to 20,000 Hz unity gain, un-weighted
To Main Output: <0.005%, +4 dBu, 20 to 20,000 Hz, unity gain un-weighted | | EIN | +125 dB un-weighted, +130 dB A-weighted | | S/N Ratio | To Direct Output: 105 dB
To Main Output: 94 dB | | Common Mode Rejection | +65 dB | | Gain Control | -15 dB to +65 dB (± 1 dB) | | Maximum Input Level | +22 dBu | | Phantom Power | +48 VDC | | Type | 1/4" TRS Female, balanced mono | | Frequency Response | To Direct Outputs: 10 to 40,000 Hz at 0/-0.5 dBu
To Main Outputs: 20 to 20,000 Hz at ± 0.5 dBu | | Input Impedance | 10 kΩ | | THD | To Direct Output: <0.0007% +4 dBu, 20 to 20,000 Hz at unity gain un-weighted
To Main Output: <0.005% +4 dBu, 20 to 20,000 Hz, unity gain, un-weighted | | S / N Ratio | To Direct Output: 105 dB
To Main Output: 94 dB | | Gain Control | -20 dB to +20 dB | | Maximum Input Level | +22 dBu | | Type | Inputs: Balanced mono 1/4" TRS female | | Maximum Input Level | +22 dBu | | Input | Inputs: 2 x Stereo balanced 1/4" TRS pairs | | Maximum Input Level | +18 dBu | | Type | Main Outputs: 2 x balanced stereo XLR male
2 x balanced stereo 1/4" TRS female
1 x balanced mono XLR male
Aux:1 x balanced mono 1/4" TRS female
Subgroup:4 x balanced mono 1/4" TRS female
Tape: 2 x unbalanced stereo RCA Female (pair)
Control room:2 x balanced stereo 1/4" TRS female (pair) | | Output Level | Main Outputs: +24 dBu
Aux: +18 dBu
Subgroup: +18 dBu
Tape: +18 dBu
Control Room: +18 dBu | | Output Impedance | Main Outputs: 100Ω
Aux: 100Ω
Tape: 100Ω
Control Room: 100Ω | | Crosstalk | Input to Output: -90 dBu
Adjacent Channels: -87 dBu | | A/D Converter | Burr Brown | | D/A Converter | Burr Brown | | DSP | OMAP L138 processor | | Gate | Key listen: 2nd-order resonant bandpass
Q = 0.7
Off, 40 to 16,000 Hz
Threshold Range: -84 dB to 0 dB
Gate Attenuation Range: -84 dB to 0 dB / infinity
Attack Time: 0.02s to 500 ms/ 0.5 ms
Release Time: 005 to 2 s
Expander Attenuation Range: 2:1 | | Limiter | Threshold: -56 dB to 0 dB/-28 dBFS
Ratio: ∞:1
Attack: 20 ns
Hold: 10 ms
Release: 20 ms | | Compressor | Threshold Range: -56 to 0 dB
Ratio: 1:1 to 14:1
Attack Time: 0.2 to 150 ms
Release Time: 40 to 1000 ms
Auto Attack: 10 ms
Auto Release: 150 ms
Curve Types: Hard and soft knee | | Equalizer | Semi-Parametric
Type: 2nd-order shelving filter (Q = 0.55)
Low (lowpass or bandpass): 36 to 465 Hz ± 15 dB
Low Mid: 90 to 1,200 Hz ±15 dB
High Mid: 380 to 5,000 HZ ±15 dB | | Graphic EQ | 31-Band 1/3 Octave Controls: Curve-fitting algorithm
Gain/Attenuation: ±15 dB | | ADC Dynamic Range | A-Weighted at 48,000 Hz: 118 dB | | DAC Dynamic Range | A-Weighted at 48,000 Hz: 118 dB | | Firewire | S800 at 800 Mb/s | | Internal Processing | 32-bit, floating point | | Sampling Rate | 44,100 and 48,000 Hz | | Resolution | 24 bit | | Reference Level | +18 dBu | | Jitter | <20 ps RMS(20 to 20,000 Hz) | | Attenuation | >60 dB (1 ns in approximately 1 ps out) | | Connector | IEC | | Input Voltage Range | 100 to 230 V at 50 to 60 Hz | | Power Requirements | 200 W | | Temperature Range | 32 to 104°F (0 to 40°C) | | Network Connectivity | 1 x Ethernet port for connecting to a network switch
1 x USB 2.0 port with Wi-Fi LAN adapter (included) | | General | For Virtual StudioLive
PreSonus Universal Control 1.5.3 or later
IEEE 1394 FireWire 800 port
Internet connection recommended
DVD-ROM drive
Internal or External 7200 RPM storage drive highly recommended
Monitor with 1024 x 768 resolution | | Windows | Windows Vista x64/x86 SP2, Windows 7 x64/x86 SP1, Windows 8 x64/x86
Intel Core Duo or AMD Athlon X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
2 GB RAM (4 GB or more recommended) | | Mac | Mac OS X 10.6.8 or later
Intel Core Duo processor (Intel Core 2 Duo or Core i3 or better recommended)
2 GB RAM (4 GB or more recommended) | | Dimensions (L x W x D) | 22.35 x 17.22 x 6.90" (56.8 x 43.74 x 17.53 cm) | | Weight | 23.0 lb (10.4 kg) | | Package Weight | 42.5 lb | | Box Dimensions (LxWxH) | 32.0 x 26.0 x 13.0" | |
