User manual Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP

Operating instructions and pdf manual for use - Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP User manual, User manual Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP, Reloop, RMX-40, BlackFire, 4-Channel, Analog, Mixer, RMX-4


User manual for Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP

Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP
  • Manufacturer: Reloop
  • Basic description and contents of package
  • Product classification: Pro Audio - DJ Equipment - DJ Mixers
  • Safety instructions
  • Startup and operation of the dj mixers
  • Tips for setting up your Reloop
  • Settings and expert assistance
  • Contact Reloop service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD
We recommend checking out our discussion threads on the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP, which address similar problems with connecting and setting up DJ Mixers Reloop.



User manual for the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP

The user manual for the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - DJ Mixers.

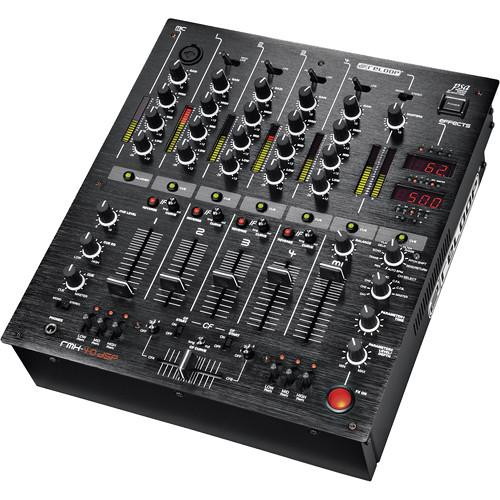

The Reloop RMX-40 BlackFire 4-Channel Analog Mixer with DSP is designed for live sound reinforcement applications. The mixer features four channels with 3-band equalizers and two microphone input channels with 3-band equalizers. The unit includes an automatic beat counter for all channels, and a time and depth parameter controllable DSP effect send and return system featuring Pan, Trans, Delay, Echo, Flanger, Filter, Phase, and Pitch Shifter. Combined with the beat counter, the effect parameters can be assigned to different timings or they can be modulated manually with the time and a level/depth control knobs

The mixer incorporate a freely assignable long life TCT 45mm crossfader with an adjustable curve. The crossfader can control every input channel, activate sources via fader start and cut all frequencies via the kill switches Each channel features an LED cue light, RCA line and phono inputs with ground, a 1/4" microphone input, an XLR microphone input with talkover, 1/4" send and return connectors, an unbalanced RCA rec out,unbalanced RCA pairs master 1 and master 2 out, as well as a balanced XLR pair master out. The headphone output features both an equalizer and mono switch.
If you own a Reloop dj mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP:
Inputs 4 x phono (pair)
4 x line (pair)
1 x 1/4" return (pair)
1 x 1/4" mic
1 x XLR mic
Input Impedances Phono: 2 mV at 47 kΩ
Line: 200 mV at 20 kΩ
DJ Mic: 2 mV at 1,000 Ω
Mic 2: 1 mV at 2.2 kΩ
Return: 316 mV at 22 kΩ
Outputs 2 x XLR Master,
1 x RCA Master 1 (pair)
1 x RCA Master 2 (pair)
1 x RCA Rec out (pair)
1 x 1/4" send (pair)
Output Impedances Master 1 and 2 (unbalanced): 1 V at 1,000 Ω
Master 1 (balanced: 1.23 V at 600 Ω
Headphones: 891 mV at 33 Ω
Rec: 316 mV at 1 kΩ
Send: 316 mV at 2 kΩ
Frequency Response 20 to 20,000 Hz
Frequency High Peak/Low Peak: +12/-26 dB
Suppression Talkover: -14 dB
Distortion < 0.01%
S/N Ratio Phono: 71 dB
Line: 86 dB (effects off)
DJ Mic: 71 dB
Mic 2: 65 dB
Dimensions 12.6 x 14.1 x 3.5" (320.0 x 357.0 x 89.0 mm)
Weight 13.2 lb (6.0 kg)
Packaging Info
Package Weight 14.6 lb
Box Dimensions (LxWxH) 17.9 x 16.0 x 5.6"
The user manual for the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP can be downloaded in .pdf format if it did not come with your new dj mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Reloop users keep a unique electronic library for Reloop dj mixerss, where you can use our link to download the user manual for the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP.

The user manual lists all of the functions of the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP, all the basic and advanced features and tells you how to use the dj mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Reloop service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Reloop RMX-40 BlackFire 4-Channel Analog Mixer RMX-40-DSP. User manuals are also available on the Reloop website under Pro Audio - DJ Equipment - DJ Mixers.
