User manual Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10
Operating instructions and pdf manual for use - Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10 User manual, User manual Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10, Shure, BLX14/P31, Headset, Wireless, Microph
User manual for Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
Manufacturer: Shure
Basic description and contents of package
Product classification: Pro Audio - Live Sound - Wireless Systems
Safety instructions
Startup and operation of the wireless systems
Tips for setting up your Shure
Settings and expert assistance
Contact Shure service
Troubleshooting
Warranty information
Price: 299 USD
Click to enlarge image
We recommend checking out our discussion threads on the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10,
which address similar problems with connecting and setting up Wireless Systems Shure.
User manual for the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10
The user manual for the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

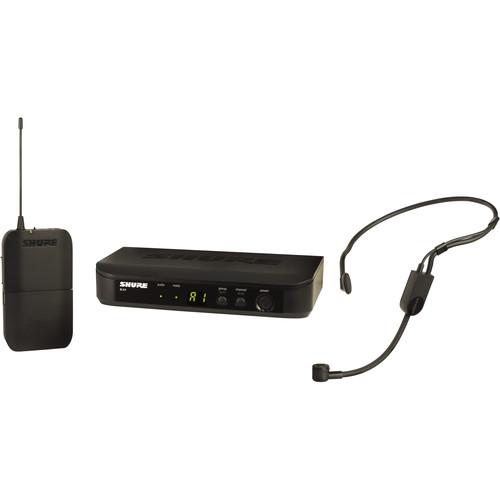

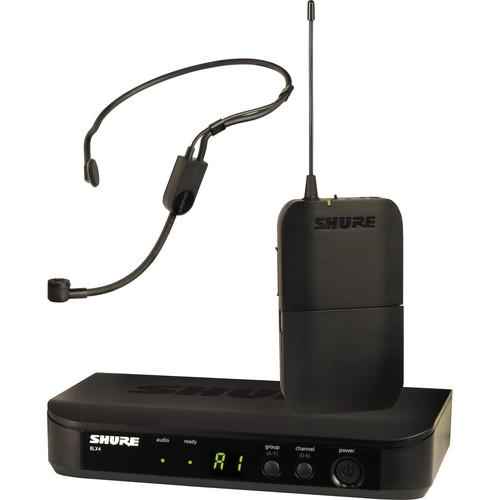

The BLX14/P31 Headset Wireless Microphone System from Shure includes a BLX4 single-channel wireless receiver, a BLX1 bodypack transmitter, and a PGA31 headset mic. The system is set to Shure's J10 frequency band and operates between 584 - 608 MHz.
The BLX1 bodypack transmitter has a 300' line of sight operation range with the BLX4 receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup.
If you own a Shure wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10:
Specifications
PGA31 Performance Headset Condenser Microphone
Type
Electret condenser
Frequency Response
60 Hz to 20 kHz
Polar Pattern
Cardioid
Output Impedance
600 Ω @ 1 kHz, typical
Audio Output Level
-50 dBV/Pa
Signal to Noise Ratio
66 dB @ 1 kHz
Maximum SPL
145 dB, @ 1 kHz (1,000 Ω load)
Dynamic Range
117 dB, @ 1 kHz (1,000 Ω load)
Output Noise
28 dB, typical, A-weighted
Power Requirements
+5 V DC (nominal), 10 V maximum (DC bias)
Polarity
Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
The user manual for the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10 can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Shure users keep a unique electronic library
for Shure wireless systemss,
where you can use our link to download the user manual for the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10.
The user manual lists all of the functions of the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Shure service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Shure BLX14/P31 Headset Wireless Microphone System BLX14/P31-J10. User manuals are also
available on the Shure website under Pro Audio - Live Sound - Wireless Systems.
