User manual Shure SLX Series Wireless Microphone System SLX24/SM58-G5

Operating instructions and pdf manual for use - Shure SLX Series Wireless Microphone System SLX24/SM58-G5 User manual, User manual Shure SLX Series Wireless Microphone System SLX24/SM58-G5, Shure, SLX, Series, Wireless, Microphone, System, SLX24/SM


User manual for Shure SLX Series Wireless Microphone System SLX24/SM58-G5

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Shure SLX Series Wireless Microphone System SLX24/SM58-G5
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 599 USD
Shure SLX Series Wireless Microphone System SLX24/SM58-G5 Shure SLX Series Wireless Microphone System SLX24/SM58-G5 Shure SLX Series Wireless Microphone System SLX24/SM58-G5 Shure SLX Series Wireless Microphone System SLX24/SM58-G5
Click to enlarge image

We recommend checking out our discussion threads on the Shure SLX Series Wireless Microphone System SLX24/SM58-G5, which address similar problems with connecting and setting up Wireless Systems Shure.



User manual for the Shure SLX Series Wireless Microphone System SLX24/SM58-G5

The user manual for the Shure SLX Series Wireless Microphone System SLX24/SM58-G5 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

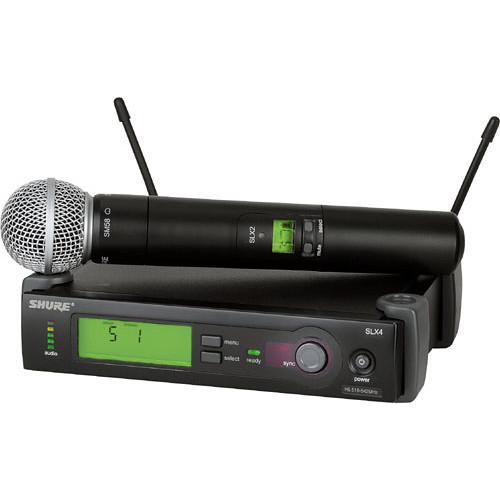

The Shure SLX Series wireless microphone systems provide the performance and reliability needed for use in live performance venues, halls, sound reinforcement, etc. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver and SLX2 handheld transmitter with an SM58 microphone head.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure SLX Series Wireless Microphone System SLX24/SM58-G5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure SLX Series Wireless Microphone System SLX24/SM58-G5:
Specifications
    System
    Type of System Rack/Table Top Mountable UHF Diversity Wireless Handheld System
    RF Carrier Frequency Range G5: 494 - 518 MHz
    Approx. Working Range 300' (100 m)
    Overall Frequency Response 45 Hz - 15 kHz, +/- 2 dB
    Signal-to-Noise Ratio > 100 dB A-weighted
    # Of Channels 960 Selectable Frequencies
    # Of Simultaneous Systems 12 20 in regions where additional frequency bands are available
    Receiver
    Type of Receiver SLX4 Rack/Table Top Mountable UHF Diversity Receiver
    Type of Outputs XLR 3-pin male - 200 ohms
    1/4" Phone - 1 kohms
    Headphone Monitoring No
    Power Requirements 12 - 18 VDC @ 150 mA, supplied by external power supply
    Battery Type/Approx. Life Not Applicable, Unit Does Not Operate on Batteries
    Display LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status
    Mounting Options Rack / Table Top Mount 1/2 Rack Space
    Antenna Type Internal
    Dimensions (HxWxD) 1.65 x 7.76 x 5.28" (42 x 197 x 134 mm)
    Weight 10.2 oz (290 g)
    Transmitter
    Type of Transmitter SLX2 UHF Handheld
    Type of Input Connector Not applicable, handheld transmitters feature built-in microphones
    Type of Microphone SM58
    Polar Pattern Cardioid
    Interchangeable Mic Heads No
    Battery Type/Approx. Life (2) AA-size alkaline or rechargeable - approx. 8 hours
    Mute Switch Integrated On-Off / Mute Switch
    Level Control 0 dB & 10 dB Gain Adjust switch
    Antenna Type Dual 1/4 wave antennas
    Display LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status
    Dimensions (LxDiameter) 10 x 2" (254 x 51 mm)
    Weight 1.8 lb (816 g)
    Packaging Info
    Package Weight 7.05 lb
    Box Dimensions (LxWxH) 18.5 x 14.5 x 3.5"
    How to Set Up a system
    The user manual for the Shure SLX Series Wireless Microphone System SLX24/SM58-G5 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless systemss, where you can use our link to download the user manual for the Shure SLX Series Wireless Microphone System SLX24/SM58-G5.

    The user manual lists all of the functions of the Shure SLX Series Wireless Microphone System SLX24/SM58-G5, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure SLX Series Wireless Microphone System SLX24/SM58-G5. User manuals are also available on the Shure website under Pro Audio - Live Sound - Wireless Systems.
