User manual Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens

Operating instructions and pdf manual for use - Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens User manual, User manual Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens, Sony, Alpha, a7, II, Mirrorless, Digital, Camera, wi

User manual for Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens
Click to enlarge image
We recommend checking out our discussion threads on the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens, which address similar problems with connecting and setting up Mirrorless System Cameras Sony.


User manual for the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens

The user manual for the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

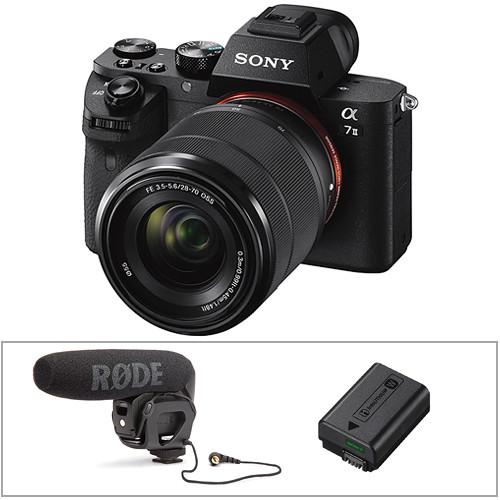

Pairing the versatile body and lens with spare power and a mic for enhanced audio recording, the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens and Mic Kit from B&H bundles the full-frame mirrorless camera and wide-to-short tele zoom with an extra rechargeable lithium-ion battery for extended shooting sessions and a Rode VideoMic Pro Compact Directional On-Camera Microphone for clearer, more controllable audio when recording video.

The a7 II features a full-frame 24.3MP CMOS sensor and BIONZ X image processor to enable high-resolution stills shooting up to 5 fps, full HD 1080p video recording in the high-bit-rate XAVC S format at up to 60 fps, and sensitivity to ISO 25600 for working in difficult lighting conditions. Sensor-shift type 5-axis SteadyShot INSIDE image stabilization compensates for up to 4.5 stops of camera shake with any mounted lens and a Fast Hybrid AF system employs 117 phase-detection points and 25 contrast-detection areas to provide quick and accurate focusing performance. The a7 II is also characterized by its compact form factor and durable, weather-resistant design that features a tilting 3.0" 1,228.8k-dot LCD monitor, 2.36m-dot OLED electronic viewfinder, and built-in Wi-Fi with NFC.

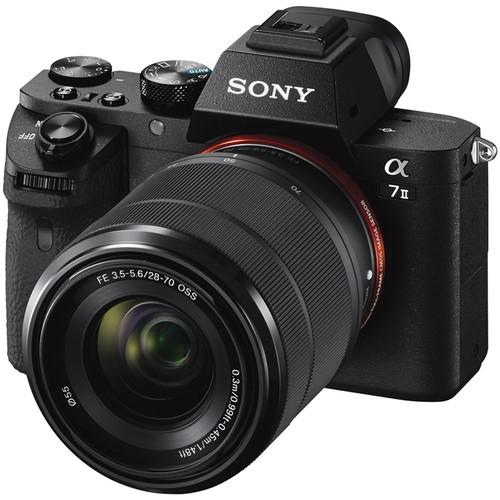

Bundled with the a7 II in this kit is the FE 28-70mm f/3.5-5.6 OSS E-mount lens. This wide-to-portrait zoom incorporates three aspherical elements and one extra-low dispersion element into its design to minimize chromatic aberrations and enhance overall image clarity. An optical SteadyShot image stabilization system has also been added to minimize the appearance of camera shake to suit working in dim lighting and with low shutter speeds. This stabilization will work with the in-body stabilization found in the camera. It has a minimum focus distance of 11.8".
If you own a Sony mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens:
Specifications
  • Sony Alpha a7 II Mirrorless Digital Camera with FE 28-70mm f/3.5-5.6 OSS Lens
    Imaging
    Lens Mount Sony E-Mount
    Camera Format Full-Frame
    Pixels Actual: 24.7 Megapixel
    Effective: 24.3 Megapixel
    Max Resolution 24 MP: 6000 x 4000
    Aspect Ratio 3:2, 16:9
    Sensor Type / Size CMOS, 35.8 x 23.9 mm
    File Formats Still Images: JPEG, RAW
    Movies: AVCHD Ver. 2.0, MPEG-4, XAVC S
    Audio: AAC LC, Dolby Digital 2ch, Linear PCM (Stereo)
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SDXC
    SDHC
    SD
    Memory Stick PRO Duo (High Speed)
    Memory Stick PRO HG-Duo
    Memory Stick XC-HG Duo
    Image Stabilization Sensor-Shift, 5-Way
    AV Recording
    Video Recording Yes
    Resolution 1920 x 1080: 60 fps, 30 fps, 24 fps
    1440 x 1080: 30 fps
    640 x 480: 30 fps
    Video Format XAVC S
    1920 x 1080p / 60 fps (50 Mbps)
    1920 x 1080p / 30 fps (50 Mbps)
    1920 x 1080p / 24 fps (50 Mbps)
    AVCHD
    1920 x 1080p / 60 fps (28 Mbps)
    1920 x 1080i / 60 fps (24 Mbps)
    1920 x 1080i / 60 fps (17 Mbps)
    AVCHD
    1920 x 1080p / 24 fps (24 Mbps)
    1920 x 1080p / 24 fps (17 Mbps)
    MP4
    1440 x 1080 / 30 fps (12 Mbps)
    640 x 480 / 30 fps (3 Mbps)
    Aspect Ratio 16:9
    Video Clip Length Up to 29 Minutes
    Audio Recording Built-in Mic: With Video, Stereo
    Focus Control
    Focus Type Auto
    Focus Mode Continuous-servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Phase Detection:117
    Contrast Detection:25
    Viewfinder/Display
    Viewfinder Type Electronic
    Viewfinder Size 0.5"
    Viewfinder Pixel Count 2,359,296
    Viewfinder Eye Point 27.00 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.71x
    Diopter Adjustment - 4 to +3 m
    Display Screen 3"  Tilting  LCD (1,228,800)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity 100-25600 (Extended Mode: 50-25600)
    Shutter Type: Electronic & Mechanical
    Speed: 1/8000 - 30 second,  Bulb Mode
    Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, Manual, Programmed Auto, Scene Selection, Shutter Priority, Sweep Panorama
    Metering Range: EV -1.0 - EV 20.0
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
    Burst Rate Up to 5 fps at 24 MP for up to 50 frames
    Flash
    Flash Modes Auto
    Fill-in
    Hi-Speed Sync
    Off
    Rear Sync
    Red-eye Reduction
    Slow Sync
    Wireless
    Built-in Flash No
    Max Sync Speed 1 / 250 seconds
    Flash Compensation -3 EV to +3 EV (in 1/3 or 1/2 EV steps)
    Dedicated Flash System P-TTL
    External Flash Connection Hot Shoe
    Performance
    Continuous Shooting Up to 5 fps
    Self Timer 10 seconds, 2 seconds
    Number of Shots: 1-5
    Interval Recording No
    Internal Memory None
    Connectivity 1/8" Headphone, 1/8" Microphone, HDMI D (Micro), Micro-USB, Multi Interface Terminal
    Wi-Fi Capable Yes
    Power
    Battery 1x NP-FW50 Rechargeable Lithium-ion Battery Pack1020 mAh
    AC Power Adapter AC-PW20 (Optional)
    Physical
    Dimensions (WxHxD) 5.0 x 3.8 x 2.4" / 126.9 x 95.7 x 59.7 mm
    Weight 1.22 lb / 556 g
    Kit Lens
    Focal Length 28 - 70mm
    Comparable APS-C Focal Length: 42 - 105 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 36
    Angle of View 75° - 34°
    APS-C Picture Angle: 54° - 23°
    Minimum Focus Distance 11.81" (.3 m)
    Magnification 0.19x
    Maximum Reproduction Ratio 1:5.26
    Elements/Groups 9/8
    Diaphragm Blades 7, Rounded
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front: 55 mm
    Dimensions (DxL) Approx. 2.85 x 3.27" (72.5 x 83 mm)
    Weight 10.41 oz (295 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.528 x 6.142 x 5.669"
  • Watson NP-FW50 Lithium-Ion Battery Pack (7.4V, 1100mAh)
    Chemistry Lithium-ion
    Capacity 1100 mAh
    Output Voltage 7.4 V
    Watt-Hours 8.14 Wh
    Dimensions 2.2 x 1.4 x 0.5" (5.6 x 3.6 x 1.3 cm)
    Weight Not specified by manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 5.4 x 3.2 x 1.1"
  • Rode VideoMic Pro Compact Directional On-Camera Microphone
    Operating Principle Line Gradient
    Transducer Condenser
    Diaphragm 0.50" (12.70 mm)
    Polar Pattern Supercardioid
    Frequency Range 40 Hz to 20 kHz
    Equivalent Noise Level 20 dB A-Weighted
    Maximum SPL 134 dB SPL 1%
    Impedance 200 ohms
    Sensitivity -32 dB, re: 1 V/Pa
    Power Requirements 9 V Battery
    Low-Cut Filter Yes @ 80 Hz
    Output Connectors 3.5mm TRS
    General
    Length 3.94" (100 mm)
    Diameter 2.95" (75 mm)
    Weight 3.00 oz (85 g)
    Packaging Info
    Box Dimensions (LxWxH) 8.2 x 6.2 x 2.4"
The user manual for the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony mirrorless system camerass, where you can use our link to download the user manual for the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens.

The user manual lists all of the functions of the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony Alpha a7 II Mirrorless Digital Camera with 28-70mm Lens. User manuals are also available on the Sony website under Photography - Digital Cameras - Mirrorless System Cameras.
