User manual Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214

Operating instructions and pdf manual for use - Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214 User manual, User manual Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214, Synology, DiskStation, DS214, 2-Bay, All-In-1, NAS, Se

User manual for Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214

Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214
  • Manufacturer: Synology
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Attached Storage Drives
  • Safety instructions
  • Startup and operation of the network attached storage drives
  • Tips for setting up your Synology
  • Settings and expert assistance
  • Contact Synology service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214, which address similar problems with connecting and setting up Network Attached Storage Drives Synology.


User manual for the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214

The user manual for the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

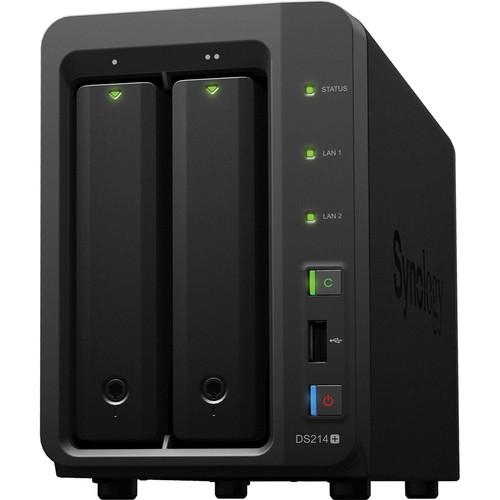

The DiskStation DS214+ 2-Bay All-In-1 NAS Server from Synology comes equipped with two hot-swappable storage bays, capable of holding both 2.5" and 3.5" SATA II hard drives. With support for capacities up to 8 TB (drives sold separately), you can store a large amount of files including full HD video, music, photos, documents, and more.
If you own a Synology network attached storage drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214:
Specifications
    Hardware
    CPU Marvell Armada XP dual-core 1.33 GHz
    Floating Point Yes
    Hardware Encryption Engine Yes
    Memory 1 GB DDR3
    Internal HDD/SSD 2 x 3.5" or 2.5" SATA II (hard drives not included)
    Maximum Internal Capacity 8 TB (2 x 4 TB hard drives) (the actual capacity will differ according to volume types)
    Bays 2
    Hot Swappable Drives Yes
    External Ports 1 x USB 2.0 port
    2 x USB 3.0 ports
    1 x eSATA port
    Power port
    LAN 2 x Gigabit
    Wireless Support Yes (wireless dongles not included)
    Wake on LAN/WAN Yes
    Reset Button Yes
    Tray Lock 2 (one on each bay)
    Indicators 7 x LED indicators (status/LAN1/LAN2/copy button/power button/2 x HDD trays indicator)
    Fan 1 x 3.6 x 3.6" (92.0 x 92.0 mm)
    AC Input Power Voltage 100 to 240 VAC
    Power Frequency 50 to 60 Hz, single phase
    Operating Temperature 40 to 95°F (4 to 35°C)
    Storage Temperature 15 to 155°F (-9 to 68°C)
    Relative Humidity 5 to 95%
    General
    Networking Protocols CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
    File System Internal: EXT4
    External: EXT4, EXT3, FAT, NTFS, HFS+ (read only)
    Storage Management Maximum File System Size: 16 TB
    Maximum Internal Volume #: 256
    Maximum iSCSI Target #: 10
    Maximum iSCSI LUN#: 10
    Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1
    Maximum File Sharing Capability User Account: 2048
    Group: 256
    Shared Folder: 256 Concurrent CIFS/AFP/FTP Connections: 256
    Privilege Windows Access Control List (ACL)
    Directory Service Windows AD Integration: Domain users login via Samba (CIFS)/AFP/FTP/File Station, LDAP integration
    Security FTP over SSL/TLS, IP auto-block, firewall, encrypted network backup over rsync, HTTPS connection
    Utilities Synology Web Assistant
    Synology Assistant
    Synology Data Replicator 3
    Cloud Station
    Supported Clients Windows XP onward
    Mac OS X 10.5 onward
    Ubuntu 9.04 onward
    Supported Browsers Chrome
    Chrome (Android 4.0 on tablets)
    Firefox
    Internet Explorer: 8 or later
    Safari 5 or later
    Safari (iOS 5 or later on iPad)
    Language English, German, French, Italian, Spanish, Danish, Norsk, Swedish, Dutch, Russian, Polish, Hungarian, Brazilian Portuguese, European Portuguese, Turkish, Czech, Japanese, Korean, Traditional Chinese, Simplified Chinese
    Applications
    File Station Virtual drive
    Remote folder
    Backup Solutions Network backup
    Local backup
    Desktop backup (Window: Synology Data Replicator; Mac: Apple Time Machine backup application)
    Shared Folder Sync - Maximum Task Number: 2
    Configuration backup
    USB copy
    Mail Server Supported Mail Server Protocols: POP3, SMTP, IMAP
    FTP Server Bandwidth control
    Custom FTP passive port range
    Anonymous FTP
    Transfer log
    Web Station Virtual host (up to 30 websites)
    PHP/MySQL
    Third-party applications support
    Printer Server Maximum Printer #: 2
    Printing Protocols: LPR, CIFS, IPP, Apple iOS printing, Google cloud print, Multi Functional Print server (MFP functions are for Windows PC only)
    iOS/Android Applications DS audio, DS cam, DS cloud, DS download, DS file, DS finder, DS photo+, DS video
    Windows Phone Applications DS audio, DS file, DS finder, DS photo+, DS video
    Add-On Packages
    Surveillance Station Default IP Cam #: 1
    MAX IP Cam # (Licenses Required): 16 (1 free license to install 1 IP camera. Additional licenses can be purchased to expand the license quota)
    Directory Server LDAP directory server, backup and restore LDAP database
    VPN Server Maximum Connections: 15
    VPN Method: PPTP, OpenVPN, L2TP
    DHCP Server Independent DHCP server on different network interfaces
    Multiple subnets support
    Address reservation
    Syslog Server SSL connection
    Log Rotation: 6-month, 1-year, 2-year, 3-year
    Email notification
    Mail Station Webmail interface for mail server
    Receiving mails from multiple POP3 mailboxes
    Customizable SMTP server
    Antivirus Essential Full system scan
    Scheduled scan
    White list customization
    Virus definition auto update
    Time Backup Maximum Task Number: 4
    Multiple file versions retained
    Instant file restoration
    Cloud Station Maximum Concurrent File Transfers: 256
    Retain historical and deleted file versions
    DLNA/UPnP Media Server DLNA certified, PS3/Xbox 360 support
    Download Station Supported Download Protocols: BT/HTTP/FTP/NZB/eMule
    Maximum Concurrent Download Tasks: 50
    Other Packages Photo station
    Audio station
    Video station
    iTunes server
    Third-party packages
    Environmental
    Compliance RoHS
    Physical
    Dimensions (WxHxD) 4.1 x 6.2 x 9.1" (103.5 x 157.0 x 232.0 mm)
    Weight 3.63 lb (1.65 kg)
    Packaging Info
    Package Weight 13.0 lb
    The user manual for the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214 can be downloaded in .pdf format if it did not come with your new network attached storage drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Synology users keep a unique electronic library for Synology network attached storage drivess, where you can use our link to download the user manual for the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214.

    The user manual lists all of the functions of the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214, all the basic and advanced features and tells you how to use the network attached storage drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Synology service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Synology DiskStation DS214 2-Bay All-In-1 NAS Server DS214. User manuals are also available on the Synology website under Computers & Solutions - Networking - Network Attached Storage Drives.
