User manual Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981

Operating instructions and pdf manual for use - Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981 User manual, User manual Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981, Telex, TR-300M, Mirror, Image, Beltpack, Trans


User manual for Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981

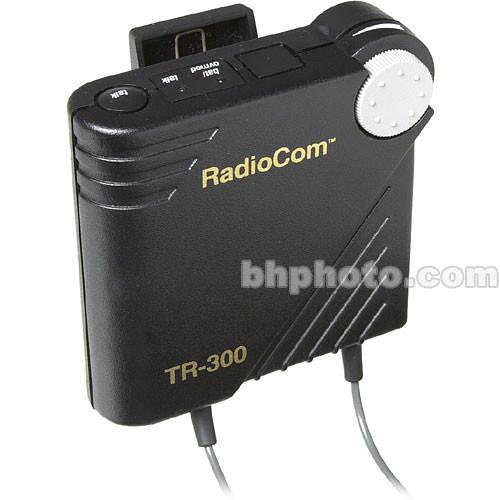

Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981
  • Manufacturer: Telex
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Transmitters & Receivers
  • Safety instructions
  • Startup and operation of the transmitters & receivers
  • Tips for setting up your Telex
  • Settings and expert assistance
  • Contact Telex service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981, which address similar problems with connecting and setting up Transmitters & Receivers Telex.



User manual for the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981

The user manual for the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Transmitters & Receivers.

The Telex TR-300M portable belt-pack transceiver is designed for use with the BTR-300 single channel VHF base station. The TR-300M transceiver sends and receives audio to and from the base station and additional transceivers, via a VHF frequency band of 150 - 216 MHz, in a mirror image frequency designation.
If you own a Telex transmitters & receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981:
Specifications
    Transmitter Type Crystal Controlled
    Receiver Type Dual Conversion Superheterodyne, FM
    RF Frequency Range 150 - 216 MHz
    Transmit Power 50 mW
    Microphone Input 30 Ohms - 3500 Ohms
    Antenna Type 1/4 wave attached
    Signal-to-Noise Ratio 90 dB
    Local Headset Output 32 mW into 600 Ohms
    Frequency Response 300 Hz - 5 kHz
    Power Requirements 6 "AA" Alkaline Batteries (NiMH-optional)
    Current Draw: Typical 82 mA
    Battery Life 24 Hours (continuous)
    Dimensions 4.25 x 4.125 x 2.0" (108 x 105 x 51mm)(WxHxD)
    Weight 13.5 oz. with batteries (384 g)
    The user manual for the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981 can be downloaded in .pdf format if it did not come with your new transmitters & receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Telex users keep a unique electronic library for Telex transmitters & receiverss, where you can use our link to download the user manual for the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981.

    The user manual lists all of the functions of the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981, all the basic and advanced features and tells you how to use the transmitters & receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Telex service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Telex TR-300M - Mirror Image Beltpack Transceiver F.01U.121.981. User manuals are also available on the Telex website under Pro Audio - Location Sound - Transmitters & Receivers.
