User manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US

The user manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Bridges.

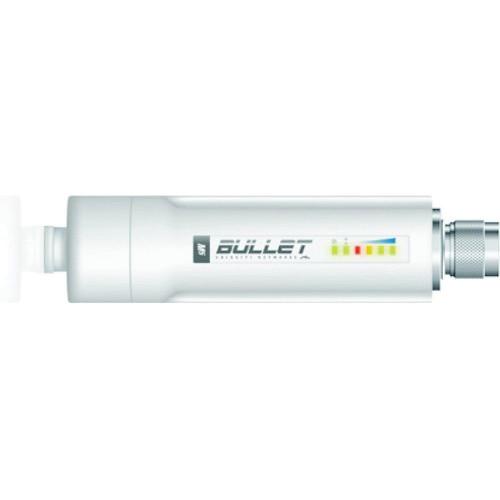

The 28 dBm BULLETM2-HP BULLET M AirMax 2.4 GHz Zero-Variable Weatherproof Outdoor Radio from Ubiquiti Networks is a wireless radio with an integrated Type N RF connector that can be directly plugged in to Sector, Omni, & Dish Antennas to create a robust outdoor Access Point, Client, or Bridge.

The Bullet M features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design. With up to 600mW of power and enhanced receiver design, the Bullet M is suitable for long-distance links, capable of 100 Mb/s+ real TCP/IP speeds over long distances.
If you own a Ubiquiti Networks wireless bridges and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US:
Specifications
System Information
Processor Atheros MIPS 24KC, 400 MHz
Memory 32 MB SDRAM, 8 MB Flash
Networking Interface 1 x 10/100 BaseTX (CAT 5, RJ-45) Ethernet
Regulatory Compliance
Wireless Approvals FCC Part 15.247, IC RS210, CE
Electrical
Range Over 31 miles (50 km) (antenna dependent)
RF Connector Integrated N-type Male Jack (connects directly to antenna)
Power Rating Up to 24 V
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

POE Adapter is sold separately.

Shock and Vibration ETSI300-019-1.4
Operating Frequency 2412 to 2462 MHz
Maximum Power Consumption 7 W
Transmit Power Output Power: 28 dBm

Modulation: 11b/g
Data Rate: Average TX: Tolerance
6 to 24 Mb/s: 28 dBm: ± 2 dB
36 Mb/s: 25 dBm: ± 2 dB
48 Mb/s: 24 dBm: ± 2 dB
54 Mb/s: 23 dBm: ± 2 dB

Modulation: 11n
Data Rate: Average: TX Tolerance
MCS0: 28 dBm: ± 2 dB
MCS1: 28 dBm: ± 2 dB
MCS2: 28 dBm: ± 2 dB
MCS3: 28 dBm: ± 2 dB
MCS4: 27 dBm: ± 2 dB
MCS5: 25 dBm: ± 2 dB
MCS6: 23 dBm: ± 2 dB
MCS7: 22 dBm: ± 2 dB
Receive Power Output Power: 28 dBm

Modulation: 11b/g
Data Rate: Sensitivity: Tolerance
24 Mb/s: -83 dBm minimum: ±2 dB
36 Mb/s: -80 dBm: ± 2 dB
48 Mb/s: -77 dBm: ± 2 dB
54 Mb/s: -75 dBm: ± 2 dB

Modulation: 11n
Data Rate: Sensitivity: Tolerance
MCS0: -96 dBm: ± 2 dB
MCS1: -95 dBm: ± 2 dB
MCS2: -92 dBm: ± 2 dB
MCS3: -90 dBm: ± 2 dB
MCS4: -86 dBm: ± 2 dB
MCS5: -83 dBm: ± 2 dB
MCS6: -77 dBm: ± 2 dB
MCS7: -74 dBm: ± 2 dB
Environmental
Operating Temperature -40 to 176°F (-40 to 80°C)
Operating Humidity 5 to 95% condensing
Physical
Construction Outdoor UV stabilized plastic
Dimensions (L x W x H) 5.9 x 1.4 x 1.2" (15.2 x 3.7 x 3.1 cm)
Weight 0.39 lb (0.18 kg)
Packaging Info
Package Weight 0.35 lb
Box Dimensions (LxWxH) 6.614 x 2.205 x 1.89"
The user manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US can be downloaded in .pdf format if it did not come with your new wireless bridges, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ubiquiti Networks users keep a unique electronic library for Ubiquiti Networks wireless bridgess, where you can use our link to download the user manual for the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US.

The user manual lists all of the functions of the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US, all the basic and advanced features and tells you how to use the wireless bridges. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ubiquiti Networks service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ubiquiti Networks BULLETM2-HP BULLET M AirMax 2.4 BULLETM2HP-US. User manuals are also available on the Ubiquiti Networks website under Computers & Solutions - Networking - Wireless Bridges.
