User manual for WD 4TB Blue 3.5" Hard Drive WD40EZRZ
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: WD
- Basic description and contents of package
- Product classification: Computers & Solutions - Drives & Storage - Internal Drives
- Safety instructions
- Startup and operation of the internal drives
- Tips for setting up your WD
- Settings and expert assistance
- Contact WD service
- Troubleshooting
- Warranty information
- Price: 139 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the WD 4TB Blue 3.5" Hard Drive WD40EZRZ,
which address similar problems with connecting and setting up Internal Drives WD.
|
User manual for the WD 4TB Blue 3.5" Hard Drive WD40EZRZ
The user manual for the WD 4TB Blue 3.5" Hard Drive WD40EZRZ provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

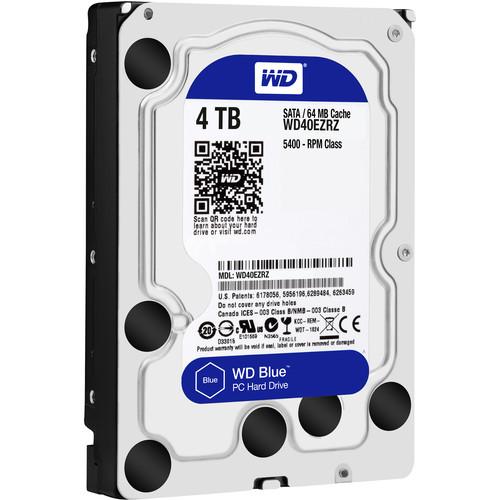

Add 4TB of storage to your system to store and quickly access files such as movies, photos, music, documents, and more with the 4TB Blue 3.5" Hard Drive from WD. Designed for use in desktop systems, external enclosures, and consumer RAID 0 and 1 applications, this drive connects to your system's 3.5" drive bay using the SATA 6 Gb/s interface.
This 4TB drive also features a rotational speed of 5,400 rpm, a 64MB cache to help ensure uninterrupted data transfers, and a sustained data transfer rate of up to 150 MB/s. Additionally, the drive is built with features to help ensure it will have a strong operational life, with 300,000 load/unload cycles, <1 in 1014 non-recoverable read errors per bits read, and NoTouch Ramp Load technology. NoTouch Ramp Load technology helps ensure that the recording head never touches the disk media. The result is less wear to the recording head and media, as well as improved drive protection while in transit.
The 4TB Blue 3.5" Hard Drive is lightweight and energy efficient, consuming an average of 5.3W during read/write operations. It provides users with free access to WD Acronis True Image and is protected by a limited 2-year warranty.
|
If you own a WD internal drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the WD 4TB Blue 3.5" Hard Drive WD40EZRZ in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the WD 4TB Blue 3.5" Hard Drive WD40EZRZ:
| Formatted Capacity | 4TB | | Interface | SATA 6 Gb/s | | Advanced Format (AF) | Yes | | Form Factor | 3.5" | | RoHS Compliant | Yes | | Data Transfer Rate (max) | Buffer to Host: 6 Gb/s
Host to/from Drive (sustained): 150 MB/s | | Cache | 64 MB | | Rotational Speed | 5,400 rpm | | Load/Unload Cycles | 300,000 | | Non-Recoverable Read Errors per Bits Read | <1 in 1014 | | 12 VDC ±10% (Peak) | 1.75 A | | Average Power Requirements | Read/Write: 5.3 W
Idle: 3.4 W
Standby/Sleep: 0.4 W | | Temperature | Operating: 32 to 140°F / 0 to 60°C
Non-Operating: -40 to 158°F / -40 to 70°C | | Shock | Operating (2 ms, write): 30 Gs
Operating (2 ms, read): 65 Gs
Non-Operating (2 ms): 250 Gs | | Acoustics | Idle: 25 dBA
Seek (average): 28 dBA | | Dimensions | 1.028 x 5.787 x 4.000" / 2.611 x 14.699 x 10.160 cm (width ± 0.01" / 0.03 cm) | | Weight | 1.50 lb / 0.68 kg (± 10%) | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.0 x 6.2 x 3.0" | |
The user manual for the WD 4TB Blue 3.5" Hard Drive WD40EZRZ can be downloaded in .pdf
format if it did not come with your new internal drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other WD users keep a unique electronic library
for WD internal drivess,
where you can use our link to download the user manual for the WD 4TB Blue 3.5" Hard Drive WD40EZRZ.
The user manual lists all of the functions of the WD 4TB Blue 3.5" Hard Drive WD40EZRZ,
all the basic and advanced features and tells you how to use the internal drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from WD service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the WD 4TB Blue 3.5" Hard Drive WD40EZRZ. User manuals are also
available on the WD website under Computers & Solutions - Drives & Storage - Internal Drives.
