User manual for the Wi-Ex zBoost TRIO SOHO 4G Cell Phone Signal Booster ZB575-A
The user manual for the Wi-Ex zBoost TRIO SOHO 4G Cell Phone Signal Booster ZB575-A provides
necessary instructions for the proper use of the product Mobile - Cell Phone Accessories - Cell Phone Signal Boosters - Home/Office Cell Phone Signal Boosters.
Boost your AT&T phone's 4G LTE signal and reduce dropped and missed calls with the zBoost TRIO SOHO Signal Booster from Wi-Ex. This booster uses an outdoor antenna to capture the reliable cellular signal you have outdoors and rebroadcasts it indoors so you can enjoy clearer, faster and more reliable service without interruption. It can provide enhanced reception to areas up to 2,500 ft2 and can be used by multiple devices at once. This device has been approved by AT&T and other major carriers. If you do not use AT&T, please check with your carrier to find out whether this device is approved on your network.

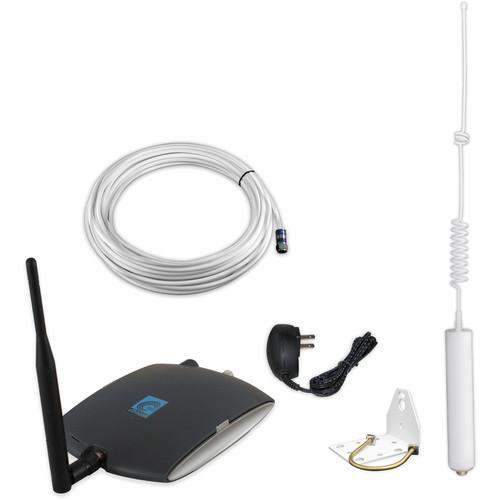

The TRIO SOHO also improves voice and text reception for users of most major carriers, not only AT&T. It will boost the 2G and 3G signals for any GSM or CDMA carrier that use 850 MHz or 1900 MHz frequencies. It reduces power use by your phone's CEL, PCS, and LTE antennas, extending the phone's battery life. The zBoost TRIO SOHO includes all hardware necessary to mount the antenna, as well as 50' of RG6 cable to connect the antenna to the base station. The base station can be wall-mounted, and the adjustable antenna allows it to be placed in a variety of locations.
|
If you own a Wi-Ex home/office cell phone signal boosters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Wi-Ex zBoost TRIO SOHO 4G Cell Phone Signal Booster ZB575-A in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Wi-Ex zBoost TRIO SOHO 4G Cell Phone Signal Booster ZB575-A:
| Frequency | Uplink: 1850 to 1910 MHz
Downlink: 1930 to 1990 MHz | | System Gain | 70 dB | | Output Power | 4 dBm | | PCS Bands Supported | A, D, B, E, F, C | | Networks | CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G | | Frequency | Uplink: 824 to 849 MHz
Downlink: 869 to 894 MHz | | System Gain | 62 dB | | Output Power | 3 dBm | | CEL Bands Supported | A, B, A', B' | | Networks | CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G | | Frequency | Uplink: 704 - 716 MHz
Downlink: 734 - 746 MHz | | System Gain | 61 dB | | Output Power | 3 dBm | | Band Supported | 17 | | Networks | AT&T LTE | | Power Consumption | 3W standby; 7W max signal - 2.5A Max | | Power Input | 100 - 240 VAC 50 - 60 Hz | | Voltage | 5.0 VDC | | Certifications | FCC Parts 15 & 20, Industry Canada | | Coverage (Open Areas) | Up to 2,500 ft2 (232 m2) | | Input and Output Impedance | TNC Connector: 50 ohms
F Connector: 75 ohms | | Operating Temperature | Base Unit (for indoor use only): 40 to 105°F (4 to 41°C) | | Cable Length | 50' (15.2 m) | | Dimensions | Base Unit: 5.0 x 7.0 x 1.3" (12.7 x 17.8 x 3.2 cm) | | Weight | Base Unit: 9 oz (255 g) | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 12.4 x 10.8 x 3.5" | |
