User manual for the Yamaha AVENTAGE RX-A740 7.2 Channel Network AV Receiver
The user manual for the Yamaha AVENTAGE RX-A740 7.2 Channel Network AV Receiver provides
necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

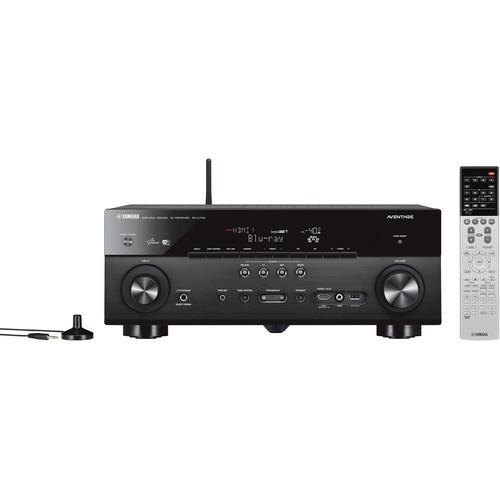

The Yamaha AVENTAGE RX-A740 7.2 Channel Network AV Receiver is designed to deliver robust audio and video performance. This receiver delivers up to 125W per channel at 8 ohms and can upscale video sources to near UHD 4K quality. Yamaha YPAO sound optimization technology is onboard to help you tailor the sound of the receiver to your listening space with the included setup microphone. The receiver's front panel USB port is compatible with Apple devices like iPhones and iPods, and can also be used to connect other USB music sources. Additionally, there's an HDMI port on the front panel that accepts MHL connections from devices like smartphones.
The Yamaha RX-A740 features Apple AirPlay for wireless music streaming from compatible devices. You can also use the receiver's Ethernet port or built-in Wi-Fi for Internet connectivity, and once connected you can take advantage of the receiver's enhanced network features like Pandora, Spotify and DLNA content sharing. You can also download the free Yamaha AV Controller app for Android or iOS for enhanced receiver control.
Six HDMI inputs are onboard for connecting high-definition video and audio sources. There is also an HDMI output for displaying video on an external display. Two digital optical and two digital coaxial inputs are also built-in for interfacing additional audio sources. Additionally, this receiver decodes high-resolution surround sound formats such as Dolby TrueHD and DTS-HD for producing a dynamic multi-channel audio experience.
|
If you own a Yamaha receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha AVENTAGE RX-A740 7.2 Channel Network AV Receiver in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha AVENTAGE RX-A740 7.2 Channel Network AV Receiver:
| Channels | 7.2 | | Nominal Output Levels | Rated Output Power (1 kHz, 2-ch driven):
105 W (8 ohms, 0.9% THD)
Rated Output Power (20 Hz-20 kHz, 2-ch driven):
90 W (8 ohms, 0.09% THD) | | Maximum Output Level | (8/6/4/2 ohms): 125/165/190/235 W | | DAC Type | Burr-Brown 192 kHz / 24-bit DACs for all channels | | Audio Delay | 0 - 500 ms | | Tuner | FM / AM | | Surround Sound | CINEMA DSP (3D), 17 DSP programs, Dialog Level Adjustment, Virtual Presence Speaker, Dialogue Lift (no presence speakers required), SILENT CINEMA, Virtual CINEMA FRONT, Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic IIx, DTS-HD Master Audio | | Wi-Fi | Yes (with Wireless Direct) | | AirPlay | Yes | | Bi-Amp Capability | Yes | | Pass-Through | 4K (50/60p), 3D | | Upscaling | Up to 4K via HDMI (analog to HDMI / HDMI to HDMI) | | MHL | Yes | | HDMI CEC | Yes | | Audio Return Channel (ARC) | Yes | | Deep Color / xvYCC Support | Yes | | Inputs | 6x HDMI
2 x Optical
2 x Digital coaxial
2 x Component video
5 x Composite video
4 x Stereo RCA
1 x 3.5 mm (YPAO)
1 x USB | | Outputs | 1 x HDMI
1 x Component video
2 x Composite video
1 x Stereo RCA
1 x Zone 2 Stereo RCA
2 x Subwoofer preout
1 x Headphones
1 x USB DC 5 V / 0.5 A | | Other Ports | 1 x Ethernet
1 x Trigger Out
1 x Remote In
1 x Remote Out
1 x Wi-Fi Antenna
1 x FM tuner antenna
1 x AM tuner antenna
1 x AC | | Speaker Connectors | Front
Center
Surround
Surround Back / Bi-amp
Zone 2 / Front Presence | | Graphical User Interface | Yes | | Power Consumption | Standby (IR Only): ≤0.1W | | Dimensions (W x H x D) | Without Antenna: 17.1 x 6.8 x 14.5" (43.4 x 17.3 x 36.8 cm)
With Antenna: 17.1 x 9.3 x 15" (43.4 x 23.6 x 38.1 cm) | | Weight | 23.2 lb (10.5 kg) | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 20.6 x 18.0 x 10.5" | |
