User manual for the Yamaha MG06 - 6-Input Mixer MG06
The user manual for the Yamaha MG06 - 6-Input Mixer MG06 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

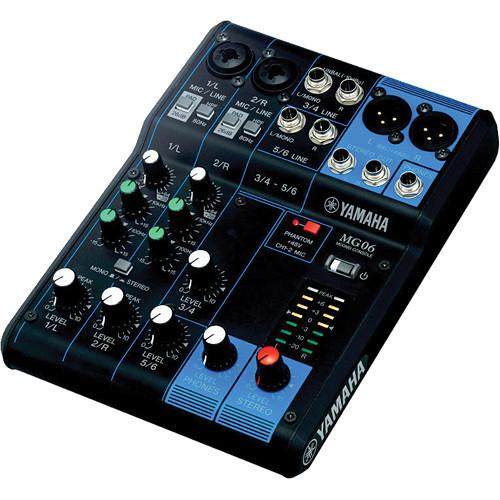

The MG06 from Yamaha is a compact six-input mixer for small performances, lectures, recordings and similar applications. The mixer features two mic/line combo inputs with D-PRE mic preamps as well as four 1/4" line inputs with stereo level controls.
Each of the two mic/line inputs is equipped with a 2-band EQ and a high pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers.
The MG06 mixer has stereo XLR outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as TRS 1/4" stereo outs for sending to powered speakers, amplifiers or devices such as digital recorders.
|
If you own a Yamaha analog recording mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha MG06 - 6-Input Mixer MG06 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha MG06 - 6-Input Mixer MG06:
Phantom Power | +48 V switchable, channels 1, 2 | Input Channels | 2x mono [mic/line] 2x stereo [line] | Output Channels | 2x stereo out 1x headphone | Bus | 1x stereo | Pad | 26 dB (mono channels) | HPF | 80 Hz, 12 dB/oct (mono channels) | Equalizer | EQ high (mono channels) gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ low (mono channels) gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | LED | LED turns on when post EQ signal reaches 3 dB below clipping | Level Metering | 2 x 7-segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] | Total Harmonic Distortion | 0.01% @ +8 dBu (20 Hz to 20 kHz), GAIN knob: min, 0.003% @ +18 dBu (1 kHz), GAIN knob: min | Frequency Response | +0.5 dB/-0.5 dB (20 Hz to 20 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: min | Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) | Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: min) | Crosstalk | -88 dB | Power Requirement | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, cable length = 1.5 m), 100-240 V, 50/60 Hz or equivalent recommended by Yamaha | Power Consumption | 12 W | Dimensions | 5.9 x 2.4 x 7.9" (149 x 62 mm x 202 mm) | Net Weight | 1.98 lb (0.9 kg) | Package Weight | 3.35 lb | Box Dimensions (LxWxH) | 10.63 x 9.606 x 4.646" | |
