User manual for the Yamaha TF3 Digital Mixing Console TF3
The user manual for the Yamaha TF3 Digital Mixing Console TF3 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

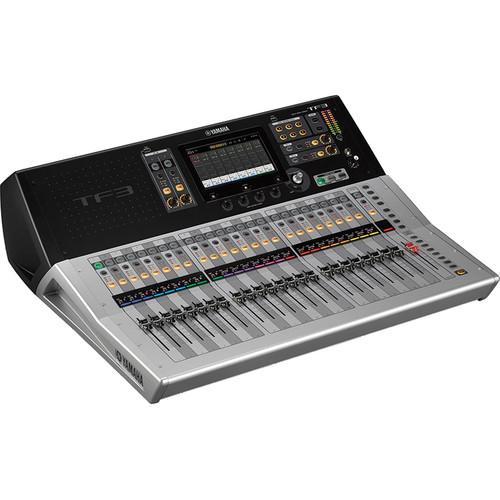

The Yamaha TF3 is a rack-mountable digital audio mixing console that features a touchscreen display, 25 motorized faders, and is expandable up to 48 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF3 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device.
The TF3 console itself provides 24 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression.
|
If you own a Yamaha digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha TF3 Digital Mixing Console TF3 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha TF3 Digital Mixing Console TF3:
Faders | 25 | Mixer | Input Channels: 48 (40 mono + 2 stereo + 2 return) Aux Buses: 20 (8 mono + 6 stereo) Stereo Buses: 1 Sub Buses: 1 Input Channel Functions: 8 DCA Groups | I/O | Inputs: 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) Outputs: 16 (XLR) Expansion Slots: 1 | DSP | 8 effects + 10 GEQ | USB | 34 x 34 USB audio interface, 2-track recording via USB storage device | Sampling Frequency | 48 kHz, internal | Signal Delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | Faders | 100 mm motorized, resolution = 10-bit, +10 to -138 dB, -∞ dB all faders | Total Harmonic Distortion | Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 ohms, INPUT to OMNI OUT, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz) | Frequency Response | +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, INPUT to OMNI OUT | Dynamic Range | 110 dB typ., DA converter, 107 dB typ., INPUT to OMNI OUT, input gain = min | Noise | Equivalent Input Noise:-128 dBu typ., input gain = max. (measured with an A-weight filter) Residual output noise:-85 dBu, ST master off (measured with an A-weight filter) | Crosstalk | -100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, input gain = min | Power Requirements | 100 - 240 V 50/60 Hz | Power Consumption | 110 W | Analog Inputs | Input Terminals: INPUT 1-24, ST IN 1,2 GAIN: -6 dB / +66 dB (INPUT 1-24) Load Impedance: 7.5 kOhms (INPUT 1-24); 10 kOhms (ST IN 1,2) For Use With Nominal: 50 - 600 ohm mics or 600 ohm lines (INPUT 1-24); 600 ohm lines (ST IN 1,2) Sensitivity: -82 dBu (61.6 V), -10 dBu (245 mV) (INPUT 1-24); -30 dBV (31.6 V) (ST IN 1,2) Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (INPUT 1-24); -10 dBV (316 mV) (INPUT 1-24) Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (INPUT 1-24); +10 dBV (3.16 V) (ST IN 1,2) Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (INPUT 1-24); RCA pin jack unbalanced (ST IN 1,2) | Analog Outputs | Output Terminals: OMNI OUT 1-16, PHONES Source Impedance: 75 ohms (OMNI OUT 1-16); 100 ohms (PHONES) For Use With Nominal: 600 ohm lines (OMNI OUT 1-16); 40 ohms (PHONES) GAIN SW: +24 dBu position (default) (OMNI OUT 1-16) Nominal Output Level: +4 dBu (1.23 V) (OMNI OUT 1-16); 3 mW (PHONES) Max. Output Level Before Clip: +24 dBu (12.3 V) (OMNI OUT 1-16); 75 mW (PHONES) Connector: XLR-3-32 type balanced (OMNI OUT 1-16); stereo phone jack (TRS) unbalanced (PHONES) | Digital Input/Output | Terminals: USB (TO HOST), iPad Format: USB Data length 24-bit (USB TO HOST) Audio: 34 ch input / 34 ch output, PCM (USB TO HOST); Playback: MP3 or WAV file data / Record: WAV file data (iPad) Connector: USB (B type) (USB TO HOST); USB (A type) (iPad) | Control I/O | Terminals: NETWORK, FOOT SW Format:IEEE802.3 (NETWORK) Level: 10BASE-T/100Base-TX (NETWORK) Connector: RJ-45 (NETWORK); TS Phone (FOOT SW ) | Dimensions | 28.2 x 8.9 x 23.6" (716 x 225 x 599 mm) | Net Weight | 37.5 lb (7.0 kg) | Package Weight | 52.0 lb | Box Dimensions (LxWxH) | 32.0 x 29.0 x 12.0" | |
The user manual for the Yamaha TF3 Digital Mixing Console TF3 can be downloaded in .pdf
format if it did not come with your new digital mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha digital mixerss,
where you can use our link to download the user manual for the Yamaha TF3 Digital Mixing Console TF3.
The user manual lists all of the functions of the Yamaha TF3 Digital Mixing Console TF3,
all the basic and advanced features and tells you how to use the digital mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Yamaha TF3 Digital Mixing Console TF3. User manuals are also
available on the Yamaha website under Pro Audio - Recording - Digital Mixers.
