User manual for the Yamaha TF5 Digital Mixing Console TF5
The user manual for the Yamaha TF5 Digital Mixing Console TF5 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

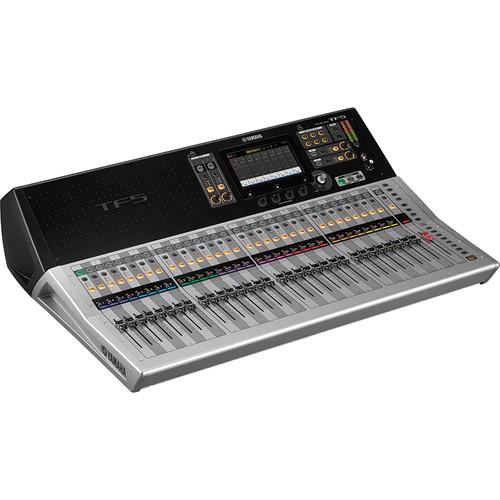

The Yamaha TF5 is a rack-mountable digital audio mixing console that features a touchscreen display, 33 motorized faders, and is expandable up to 48 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF5 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device.
The TF5 console itself provides 32 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression.
If you own a Yamaha digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha TF5 Digital Mixing Console TF5 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha TF5 Digital Mixing Console TF5:
34 x 34 USB audio interface, 2-track recording via USB storage device
Sampling Frequency
48 kHz, internal
Signal Delay
Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Faders
100 mm motorized, resolution = 10-bit, +10 to -138 dB, -∞ dB all faders
Total Harmonic Distortion
Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 ohms, INPUT to OMNI OUT, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz)
Frequency Response
+0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, INPUT to OMNI OUT
Dynamic Range
110 dB typ., DA converter, 107 dB typ., INPUT to OMNI OUT, input gain = min
Noise
Equivalent Input Noise:-128 dBu typ., input gain = max. (measured with an A-weight filter) Residual output noise:-85 dBu, ST master off (measured with an A-weight filter)
Crosstalk
-100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, input gain = min
Power Requirements
100 - 240 V 50/60 Hz
Power Consumption
120 W
Analog Inputs
Input Terminals: INPUT 1-32, ST IN 1,2 GAIN: -6 dB / +66 dB (INPUT 1-32) Load Impedance: 7.5 kOhms (INPUT 1-32); 10 kOhms (ST IN 1,2) For Use With Nominal: 50 - 600 ohm mics or 600 ohm lines (INPUT 1-32); 600 ohm lines (ST IN 1,2) Sensitivity: -82 dBu (61.6 V), -10 dBu (245 mV) (INPUT 1-32); -30 dBV (31.6 V) (ST IN 1,2) Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (INPUT 1-32); -10 dBV (316 mV) (INPUT 1-32) Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (INPUT 1-32); +10 dBV (3.16 V) (ST IN 1,2) Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (INPUT 1-32); RCA pin jack unbalanced (ST IN 1,2)
Analog Outputs
Output Terminals: OMNI OUT 1-16, PHONES Source Impedance: 75 ohms (OMNI OUT 1-16); 100 ohms (PHONES) For Use With Nominal: 600 ohm lines (OMNI OUT 1-16); 40 ohms (PHONES) GAIN SW: +24 dBu position (default) (OMNI OUT 1-16) Nominal Output Level: +4 dBu (1.23 V) (OMNI OUT 1-16); 3 mW (PHONES) Max. Output Level Before Clip: +24 dBu (12.3 V) (OMNI OUT 1-16); 75 mW (PHONES) Connector: XLR-3-32 type balanced (OMNI OUT 1-16); stereo phone jack (TRS) unbalanced (PHONES)
Digital Input/Output
Terminals: USB (TO HOST), iPad Format: USB Data length 24-bit (USB TO HOST) Audio: 34 ch input / 34 ch output, PCM (USB TO HOST); Playback: MP3 or WAV file data / Record: WAV file data (iPad) Connector: USB (B type) (USB TO HOST); USB (A type) (iPad)
The user manual for the Yamaha TF5 Digital Mixing Console TF5 can be downloaded in .pdf
format if it did not come with your new digital mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha digital mixerss,
where you can use our link to download the user manual for the Yamaha TF5 Digital Mixing Console TF5.
The user manual lists all of the functions of the Yamaha TF5 Digital Mixing Console TF5,
all the basic and advanced features and tells you how to use the digital mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
