User manual for the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00
The user manual for the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Modems.

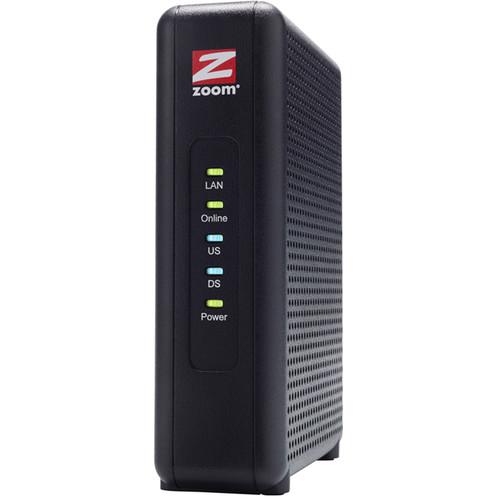

This 5345 DOCSIS 3.0 Cable Modem from Zoom is backwards compatible with DOCSIS 2.0 and 1.1 standards making it easy to install the modem in nearly any network configuration. Once installed you can take advantage of 8 downstream and 4 upstream channels. The downstream channels support a maximum data rate of 343 Mbps while the upstream channels support a maximum data rate of 123 Mbps. On the back of the modem you will find one female coaxial connector and one Gigabit Ethernet port. In addition to the coaxial connector and Ethernet port, five status LED indicators make it easy to monitor the LAN, online, upstream, downstream, and power aspects of your network.
If you own a Zoom Telephonics modems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00:
RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX
Status Indicators
Ethernet link Connection Status Upstream link Downstream link Power
Power Adapter
Level V energy-saving Switching power supply with 12 VDC / 1 A output NEMA 5-15 (North American style) plug is standard
Operating Temperature
32 to 104°F / 0 to 40°C
System Requirements
- The cable modem must be connected to a cable modem service that uses any of the DOCSIS standards 3.0, 2.0, 1.1 - An available Ethernet port on a Windows, Mac, or Linux computer, or an available WAN Ethernet port on a wired or wireless router
Approvals
FCC part 15B, Bureau Veritas for IEC 60950-1:2005 (2nd Ed.) safety, CE, CableLabs
Data Rate Up to 343 Mbps (8 channels), Up to 43 Mbps (single channel) Frequency 88 to 1002 MHz (edge to edge) Modulation 64 or 256 QAM Operating Level Range -15 to +15 dBmV
Upstream
Data Rate Up to 123 Mbps (4 channels), Up to 31 Mbps (single channel) Frequency 5 to 42 MHz (edge to edge) Modulation QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM,128 QAM, 256 QAM Operating Level Range A-TDMA: +8 to +54 dBmV (32 QAM, 64 QAM) +8 to +58 dBmV (QPSK) S-CDMA: +8 to +53 dBmV (all modulations)
Security
DOCSIS 3.0 Security (BPI+, EAE, SSD)
Networking
Network Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP Application Protocol SNMP v1/v2/v3 DHCP Client Automatically retrieves IP and DNS server address from DHCP server at ISP ToD (RF868) ToD support for local and MSO time synchronization TFTP Client TFTP support for cable modem configuration file download Management Web-based management interface utility
The user manual for the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00 can be downloaded in .pdf
format if it did not come with your new modems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Zoom Telephonics users keep a unique electronic library
for Zoom Telephonics modemss,
where you can use our link to download the user manual for the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00.
The user manual lists all of the functions of the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00,
all the basic and advanced features and tells you how to use the modems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Zoom Telephonics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Zoom Telephonics 5345 DOCSIS 3.0 Cable Modem 5345-00-00. User manuals are also
available on the Zoom Telephonics website under Computers & Solutions - Networking - Modems.
