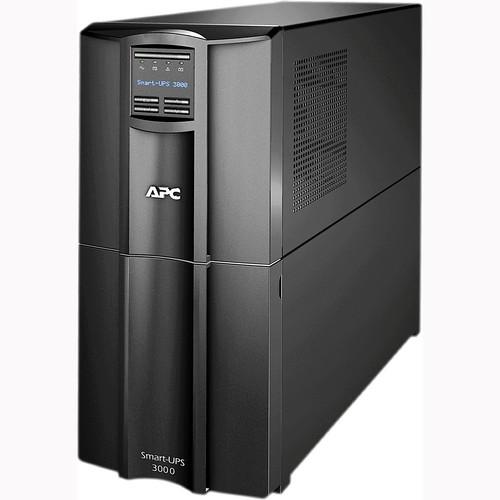

Click to enlarge image
|
We recommend checking out our discussion threads on the APC Smart-UPS 3000VA with LCD (120V) SMT3000,
which address similar problems with connecting and setting up UPS Backup APC.
|
User manual for the APC Smart-UPS 3000VA with LCD (120V) SMT3000
The user manual for the APC Smart-UPS 3000VA with LCD (120V) SMT3000 provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.
The 120 V Smart-UPS 3000VA with LCD from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery.
|
If you own a APC ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the APC Smart-UPS 3000VA with LCD (120V) SMT3000 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the APC Smart-UPS 3000VA with LCD (120V) SMT3000:
| Output | Output Power Capacity: 2700 Watts / 2880 VA
Max Configurable Power: 2700 Watts / 2880 VA
Nominal Output Voltage: 120 V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz
Topology: Line Interactive
Waveform Type: Sine wave
Output Connections 8 x NEMA 5-15RNEMA 5-15R, 2 x NEMA 5-20R | | Input | Nominal Input Voltage: 120 V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-30P
Cord Length: 6 feet (1.83 meters)
Input Voltage Range for Main Operations: 82 - 144 V
Input Voltage Adjustable Range for Mains Operation: 75 - 154 V | | Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof | | Typical Recharge Time | 3 hours | | Replacement Battery | RBC55 | | Communications & Management | Interface Ports: USB
Available SmartSlot Interface Quantity: 1
Control Panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Yes | | Surge Protection | 530 Joules | | Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Humidity | 0 to 95% (RH) | | Storage Humidity | 0 to 95% | | Operating Elevation | 0 to 10,000' / 0 to 3,000 m | | Storage Elevation | 0 to 50,000' / 0 to 15,000 m | | Audible Noise | 45.00 dBA at 3.2' / 1 m from surface of unit | | Online Thermal Dissipation | 275.00 BTU/hr | | Regulatory Approvals | CSA, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778 | | Equipment Protection | Lifetime: $150,000 | | Compliance | RoHS, REACH, PEP, EOLI | | Dimensions | 17.00 x 7.70 x 21.42" / 432 x 196 x 544 mm | | Weight | 116.00 lb / 52.73 kg | | Package Weight | 131.0 lb | | Box Dimensions (LxWxH) | 28.0 x 27.0 x 14.0" | |
The user manual for the APC Smart-UPS 3000VA with LCD (120V) SMT3000 can be downloaded in .pdf
format if it did not come with your new ups backup, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other APC users keep a unique electronic library
for APC ups backups,
where you can use our link to download the user manual for the APC Smart-UPS 3000VA with LCD (120V) SMT3000.
The user manual lists all of the functions of the APC Smart-UPS 3000VA with LCD (120V) SMT3000,
all the basic and advanced features and tells you how to use the ups backup.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from APC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the APC Smart-UPS 3000VA with LCD (120V) SMT3000. User manuals are also
available on the APC website under Computers & Solutions - Power - UPS Backup.
