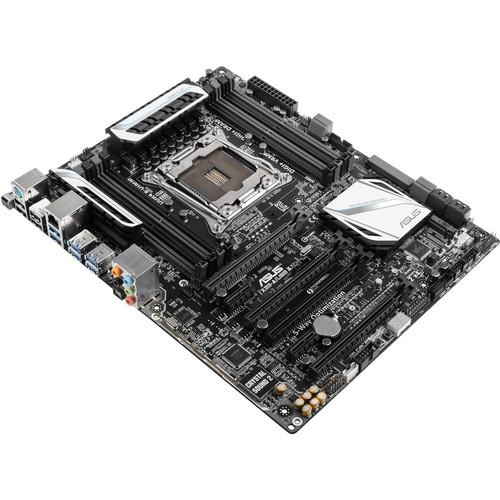

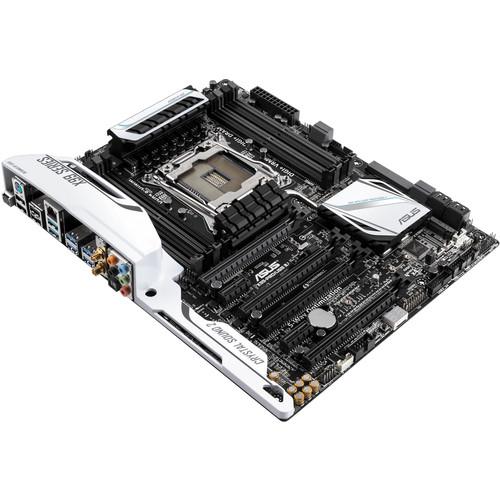

Click to enlarge image
|
We recommend checking out our discussion threads on the ASUS X99-PRO/USB 3.1 Motherboard X99-PRO/USB 3.1,
which address similar problems with connecting and setting up Motherboards ASUS.
|
User manual for the ASUS X99-PRO/USB 3.1 Motherboard X99-PRO/USB 3.1
The user manual for the ASUS X99-PRO/USB 3.1 Motherboard X99-PRO/USB 3.1 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.
The X99-PRO/USB 3.1 Motherboard from ASUS has 10 Gb/s USB 3.1 built in and is designed to fit in standard sized ATX cases. The 12.0 x 9.6" X99-PRO supports Intel Core i7 processors, the LGA2011-v3 socket, and the Intel X99 chipset. It has been designed to deliver power and speed to Internet browsing, extreme gaming, CAD software, and more. Power is critical for performance so the X99-PRO employs a Digital 8 Phase Power Design as well as an OC Socket that uses extra pins to connect a proprietary circuit to contacts found on Haswell-E's land grid array (LGA). Combined with ASUS UEFI (Unified Extensible Firmware Interface), this feature enables DDR4 memory frequencies and helps lower latencies and enhance stability while overclocking. The motherboard also features 5-Way Optimization, which includes better CPU performance, power saving and digital power control, fan control, and system cooling. The ASUS X99-PRO is compatible with 32 and 64-bit versions of Windows 8.1, 8, and 7 operating systems.
The ATX form factor of the X99-PRO can support up to 64GB of RAM and comes with 8 x DIMM slots that can each hold up to 8GB of DDR4 3300 (O.C.), 3200 (O.C.), 3000 (O.C.), 2800 (O.C.), 2666 (O.C.), 2400 (O.C.), and 2133 MHz non-ECC, unbuffered memory. The X99-PRO also has a total of 8 x SATA III 6 Gb/s ports, 1 x SATA Express connector, 1 x M.2 connector that only supports PCIe SSDs, 2 x USB 3.1/3.0/2.0 ports, 8 x USB 3.0/2.0 ports, 8 x USB 2.0/1.1 ports, 5 x audio jacks, 1 x S/PDIF out, and 1 x Intel I218V Gigabit LAN port. The X99-PRO also supports 802.11a/b/g/n/ac Wi-Fi and Bluetooth-compatible peripherals may be paired using the built-in Bluetooth 4.0 technology.
To provide data redundancy, RAID 0, 1, 5, and 10 modes are supported and PCIe expansion is dependent on whether a 40 or 28-lane CPU is installed. When a 40-lane CPU is installed, users will have access to three PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) lanes. When a 28-lane CPU is installed, users will have access to three PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x4), one PCIe 2.0 x4 (x2 mode), and two PCIe 2.0 x1 lanes. While this motherboard does not have any video out ports, it does have multi-GPU support for NVIDIA Quad-GPU SLI technology, NVIDIA 3-Way SLI technology, AMD Quad-GPU CrossFireX technology, and AMD 3-Way CrossFireX technology.
The X99-PRO Motherboard is also equipped with 1 x PS/2 port and the capability to support 4K graphics. It includes 6 x SATA 6 Gb/s cables, 1 x M.2 X4 Bracket, 1 x ASUS 2T2R Dual Band Wi-Fi Moving Antennas, 1 x SLI Bridge, and 1 x Q-connector (2-in-1). It is covered by a limited 3-year warranty.
|
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS X99-PRO/USB 3.1 Motherboard X99-PRO/USB 3.1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ASUS X99-PRO/USB 3.1 Motherboard X99-PRO/USB 3.1:
| CPU | Intel Socket LGA2011-v3 Core i7 Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology | | Chipset | Intel X99 | | Memory | 8 x DIMM, Max. 64 GB, DDR4 3300 (O.C.) / 3200 (O.C.) / 3000 (O.C.) / 2800 (O.C.) / 2666 (O.C.) / 2400 (O.C.) / 2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) | | Multi-GPU Support | Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology | | Expansion Slots | 40-Lane CPU
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
28-Lane CPU
3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x4)
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1 (x1 mode) | | Storage | Intel Core i7 Processors
2 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Supports PCIe SSDs only)
Intel X99 Chipset
1 x SATA Express port, compatible with 2 x SATA III 6.0 Gb/s ports
8 x SATA III 6 Gb/s ports
Supports RAID 0, 1, 5, and 10
Supports Intel Smart Response Technology and Intel Rapid Recovery Technology | | LAN | Intel I218V, 1 x Gigabit LAN Controller | | Audio | Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports Jack-detection, Multi-streaming, and Front Panel Jack re-tasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)
Audio Features
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Helps ensure precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to help guard the quality of the audio signals
- Audio amplifier: Provides the high quality sound for headphones and speakers
- Japanese-made audio capacitors: Provide warm, natural, and immersive sound with clarity and fidelity
- Unique de-pop circuit: Helps reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to help prevent electrical noise that may affect the quality of the amplifier | | USB Ports | Intel X99 chipset
5 x USB 3.0/2.0 ports (1 at the back panel, 4 at mid-board)
8 x USB 2.0/1.1 ports (4 at the back panel, 4 at mid-board)
ASMedia USB 3.0 controller
3 x USB 3.0/2.0 ports (3 at the back panel, blue)
ASMedia USB 3.1 controller
2 x USB 3.1/3.0/2.0 ports (2 at the back panel, teal blue) | | Features | 5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click. The 5-Way Optimization tuning key consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, more efficient power saving, precise digital power control, and whole system cooling. You can even tailor your own app usages
ASUS 5X Protection
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - Up to 2.5x longer lifespan with good durability
- ASUS Stainless Steel Back I/O - Up to 3x more durable corrosion-resistant coating
ASUS TPU
- Auto Tuning
- GPU Boost
- TPU Switch
ASUS EPU
- EPU Switch
ASUS Digital Power Design
- Digital 8 Phase Power Design
- Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphones and tablets supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- M.2 & SATA Express
- Anti-Surge
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring a user-friendly graphics interface
- USB 3.1 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Memory O.C. Design
Turbo App
Fan Xpert 3 | | Operating System Support | Windows 8.1, 8, and 7 (32 and 64-bit) | | Back I/O Ports | 1 x PS/2 keyboard/mouse combo port
1 x LAN (RJ45) port
2 x USB 3.1 ports (teal blue)
4 x USB 3.0 ports (blue)
4 x USB 2.0 ports
1 x Optical S/PDIF out
5 x Audio jacks
1 x USB BIOS Flashback Button
1 x ASUS Wi-Fi GO! module (802.11 a/b/g/n/ac) Wi-Fi and Bluetooth v4.0 | | Internal I/O Ports | 1 x AAFP connector
2 x USB 3.0 connectors support an additional 4 x USB 3.0 ports (19-pin)
2 x USB 2.0 connectors support an additional 4 x USB 2.0 ports
1 x SATA Express connector (gray)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (supports PCIe SSDs only)
1 x TPM connector
1 x COM port connector
8 x SATA 6 Gb/s connectors
1 x CPU Fan connector (1 x 4-pin)
1 x CPU OPT Fan connector (1 x 4-pin)
4 x Chassis Fan connectors (4 x 4-pin)
1 x S/PDIF out header
1 x Thunderbolt header
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12 V Power connector
1 x EZ XMP switch
1 x System panel (Q-Connector)
1 x Chassis Intrusion connector
1 x DRCT header
1 x MemOK! button
1 x Thermal sensor connector
1 x TPU switch
1 x EPU switch
1 x CPU/DRAM overvoltage jumper
1 x Power-on button
1 x Reset button
1 x Clear CMOS jumper
1 x 5-pin EXT_FAN (Extension Fan) connector | | Form Factor | ATX Form Factor
12.0 x 9.6" / 30.5 x 24.4 cm | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 13.0 x 10.4 x 3.0" | |
